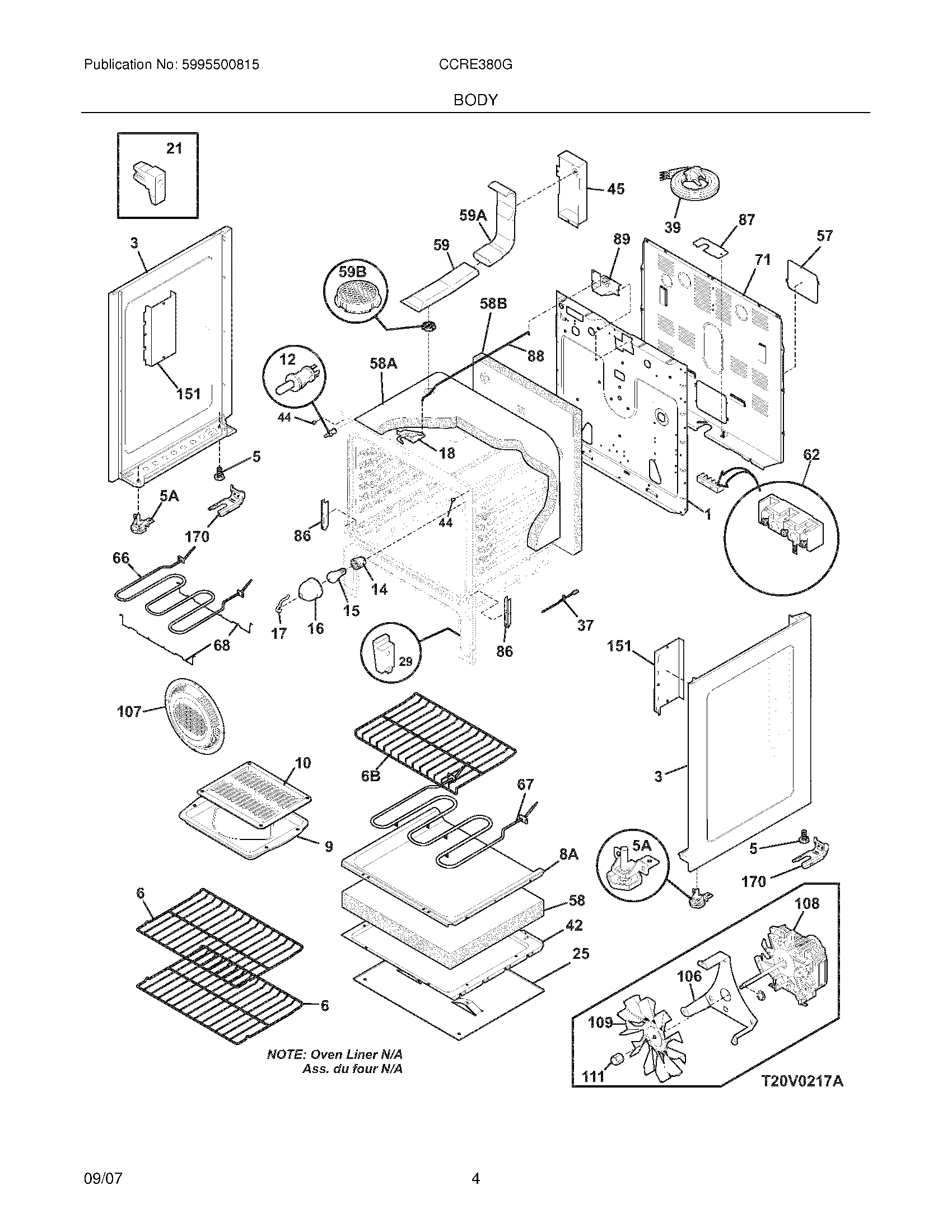

CCRE380GBBA 05 – BODY

CCRE380GBBA 05 – BODY

Written by

in

CCRE380GBBA 05 – BODY

Products

Position	Product
NI	5303285179 Frigidaire Oven Door Screw
NI	316205500 Frigidaire Oven Nut
NI	316231800 Frigidaire Cover
NI	3203550 Frigidaire Oven Plug
NI	316418901 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	5308014215 Frigidaire Oven Screw
NI	316021132 Frigidaire Screw
NI	316021105 Frigidaire Oven Screw
NI	5303271648 Frigidaire Oven Screw
NI	WCI 316443021
1	WCI 316401800
3	316400145 Frigidaire Panel Assembly
3	316400144 Frigidaire Panel
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6B	WCI 316524200
6	316496201 Frigidaire Oven Rack
8A	WCI 316411102
9	WCI 316081900
10	Insert,broiler panOPTIONAL ACCESS0RY
12	316445500 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	316405800 Frigidaire Assembly Latch
21	316408000 Frigidaire Oven Clip Assembly
25	316406200 Frigidaire Oven Shield
29	807047102 Frigidaire Oven Front Drawer Glide
37	316490000 Frigidaire Oven Range Temperature Sensor
39	WCI 318113108
42	316407700 Frigidaire Oven Shield
44	316517600 Frigidaire Oven Spacer
45	316234100 Frigidaire Oven Shield
57	316457801 Frigidaire Oven Cover
58	WCI 316403801
58B	316406500 Frigidaire Insulation
58A	316406604 Frigidaire Insulation
59	316208201 Frigidaire Oven Tube
59B	316247300 Frigidaire Oven Catalyst
59A	316208304 Frigidaire Oven Tube
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	316430900 Frigidaire Oven Broil Element
67	316415900 Frigidaire Oven Element
68	316429100 Frigidaire Oven Support Bracket
71	WCI 316422304
86	316441300 Frigidaire Receptacle
87	316081202 Frigidaire Bracket
88	316203500 Frigidaire Oven Rod
89	MOTOR
106	316404100 Frigidaire Oven Bracket
107	316026701 Frigidaire Oven Cover Assembly
108	5304467898 Frigidaire Oven Kit Assembly
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
151	WCI 316404600
170	316112500 Frigidaire Oven Template
170	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170	316116000 Frigidaire Screw
