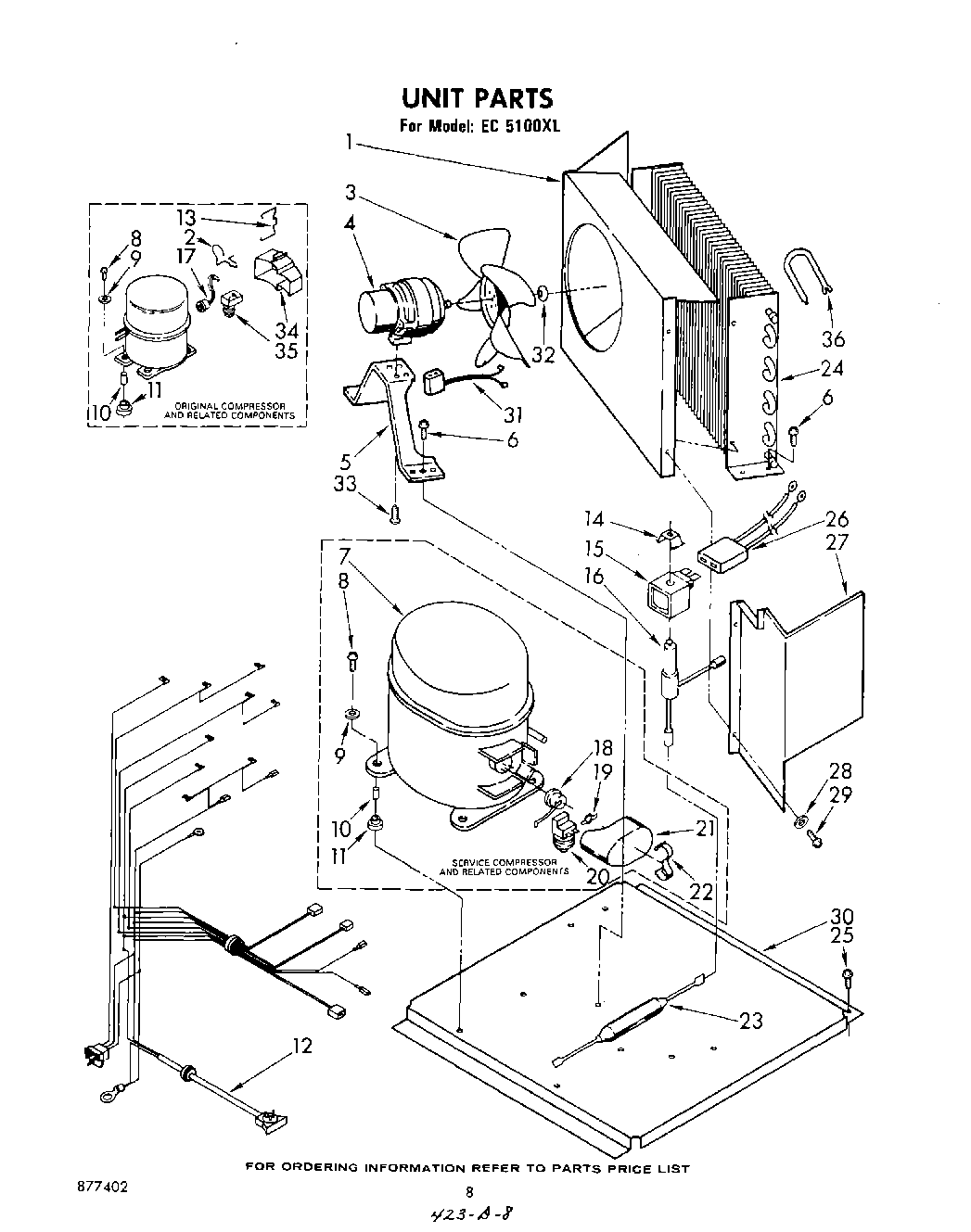

CCS51AEL 06 – UNIT

Products

Position	Product
1	Shroud, Condenser
2	Clip (Used W/Original Compressor)
3	978655 Whirlpool Refrigerator Fan Blade
4	Motor, Fan
5	Bracket, Fan Motor
6	Screw, 1/4-20 x 1/2
7	Compressor, Service (Complete Assembly)
8	Screw, 5/16-18 x 1-1/4 (4)
9	Washer, Flat (4)
10	Sleeve (4)
11	Grommet (4)
12	WPL 756657
13	Clamp (Used W/Original Compressor)
14	Retainer, Solenoid Coil
15	Coil, Solenoid
16	Valve, Solenoid Coil
17	WPL 753505
18	Overload
19	Spring, Overload
20	Relay, Start
21	Cover, Terminal
22	Cover, Spring
23	W10843121 Whirlpool Refrigerator Tube
24	Condenser
25	Screw, No.10-32 x 3/8
26	Harness, Wiring (Solenoid Coil)
27	Deflector, Front
28	Washer
29	WP90767 Whirlpool Screw
30	Base, Unit
31	Harness, Wiring (Fan Motor)
32	Nut, Hex 1/4-20
33	Screw, 8-36 x 1/2 (Included With Fan Motor)
34	Cover, Relay & Overload Assembly (Used W/Original Compressor)
35	Relay (Used W/Original Compressor)
36	Accumulator
