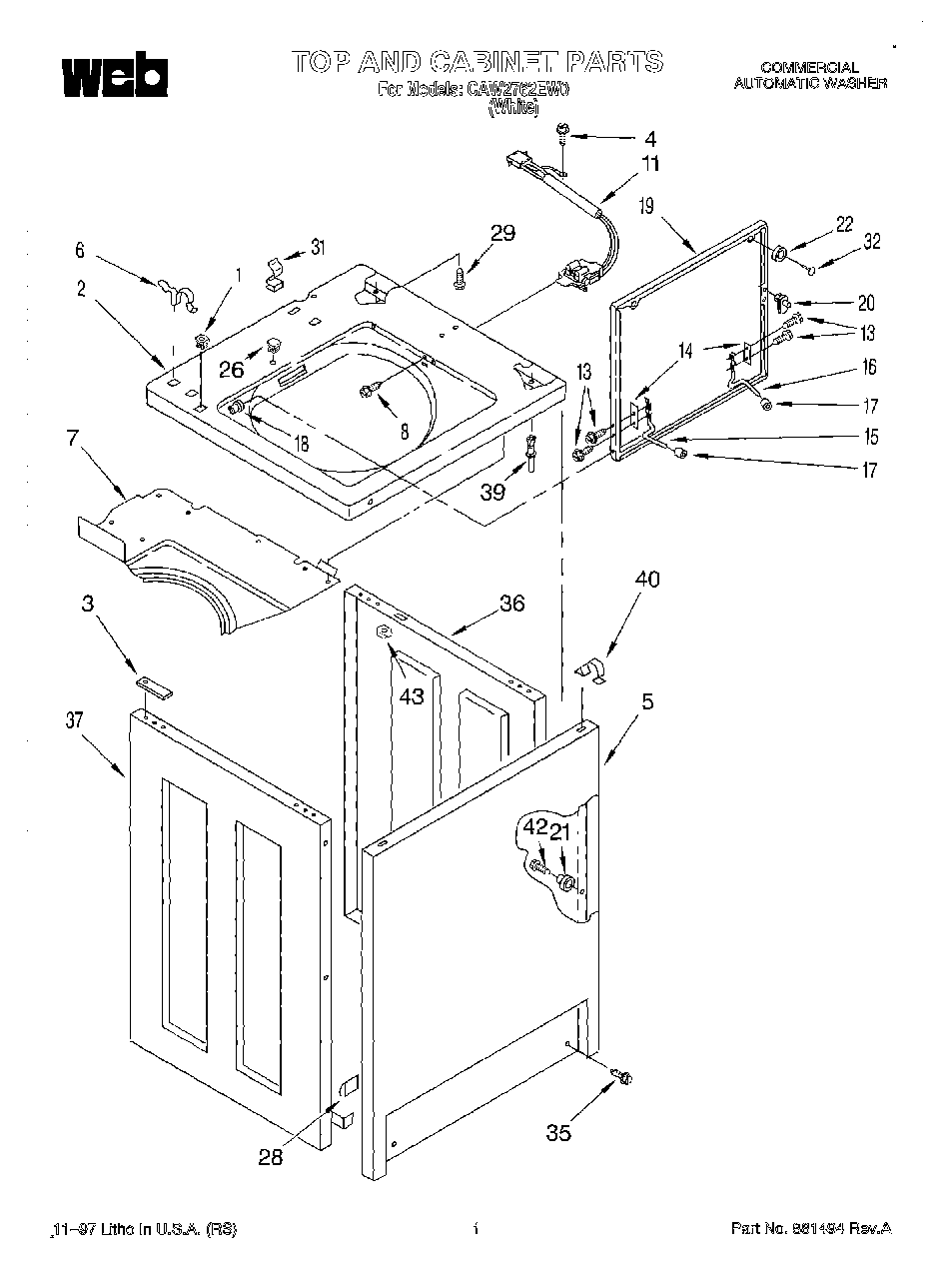

CCW2762EW0 01 – TOP AND CABINETadmin2025-04-26T12:15:54+00:00CCW2762EW0 01 – TOP AND CABINET
Products
| Position | Product |
|---|
| 1 | Nut, Push-In (2) |
| 2 | Top |
| 3 | Spacer, Cabinet To Top (4) |
| 4 | SCREW |
| 5 | Panel, Front (Almond) |
| 6 | WP62780 Whirlpool Cabinet Clip |
| 7 | Shield, Lid |
| 8 | WP3356311 Whirlpool Screw |
| 11 | Switch, Lid |
| 13 | SCREW |
| 14 | WP21097 Whirlpool Pad |
| 15 | WP54584 Whirlpool Hinge |
| 16 | WP91770 Whirlpool Hinge |
| 17 | Bumper, Lid Hinge |
| 18 | WP21258 Whirlpool Washer Lid Hinge Bearing |
| 19 | WPW10193854 Whirlpool Lid Assembly |
| 20 | WP358684 Whirlpool Strike Assembly |
| 21 | Locator (4) |
| 22 | BUMPER |
| 26 | Stop, Push-In Top |
| 28 | WP98234 Whirlpool Nut |
| 29 | Screw (2) |
| 31 | WP90016 Whirlpool Clip |
| 32 | WP356907 Whirlpool Rivet |
| 35 | WP3373329 Whirlpool Dishwasher Screw |
| 36 | Panel, R. H. |
| 37 | Panel, L. H. (White) |
| 39 | Pin, Locator (2) |
| 40 | WP18776 Whirlpool Lock |
| 42 | WP9741232 Whirlpool Dishwasher Screw |
| 43 | WP90406 Whirlpool Nut |
