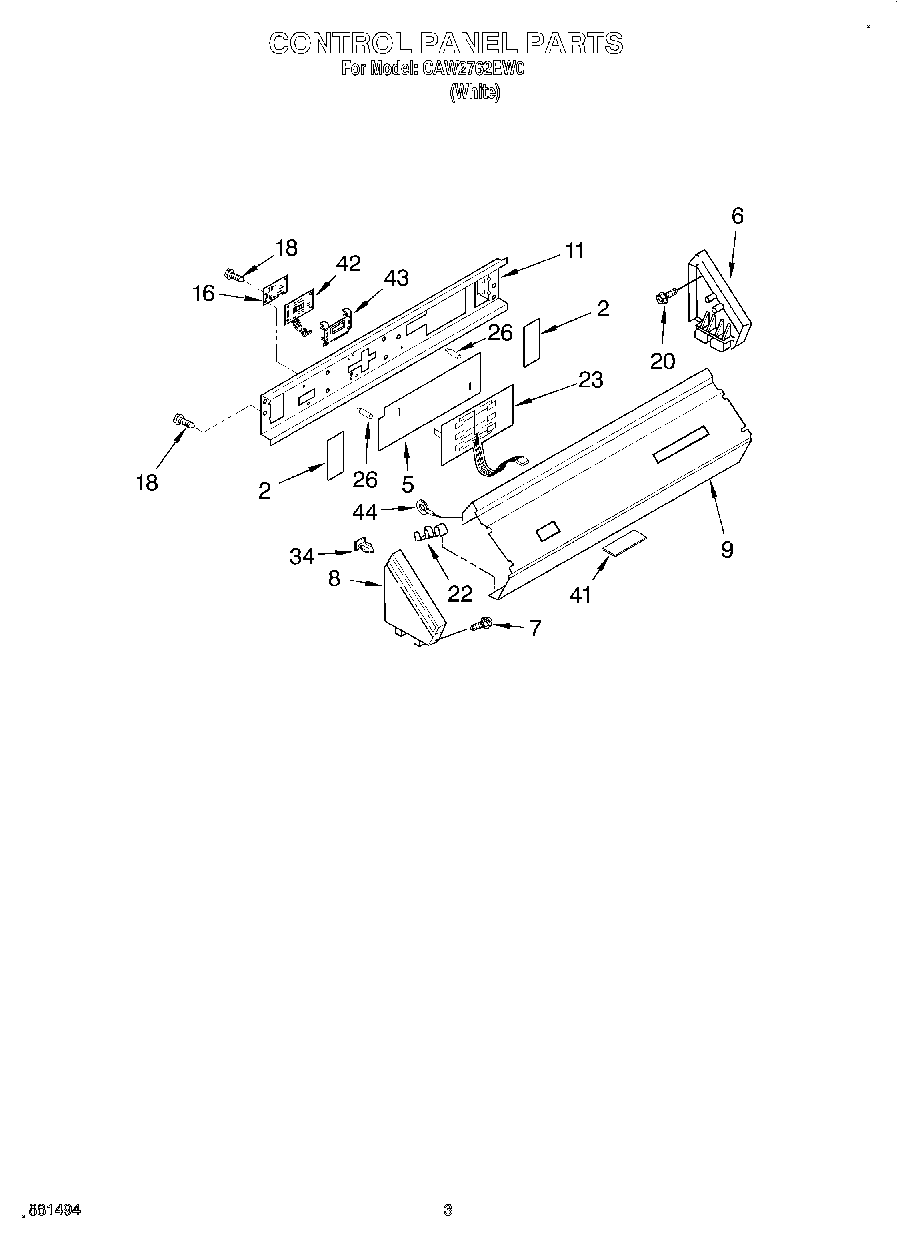

CCW2762EW0 02 – CONTROL PANEL

Products

Position	Product
2	Backer Plate, Side (2)
5	Backer Plate
6	Cap, End (R.H.)
7	WP388326 Whirlpool Screw
8	W11686050 Whirlpool Drive Motor
9	Panel, Control
11	Bracket, Control
16	WP3407152 Whirlpool Electronic Control Board
18	WPW10366705 Whirlpool Screw
20	WPW10109200 Whirlpool Screw
22	W10113937 Whirlpool Clamp
23	Switch, Membrane
26	Mounting Stud
34	WP689559 Whirlpool Nut
41	686770 Whirlpool Support Bracket
42	Display Board
43	Lens, Display
44	Wire, Ground (Motor)
