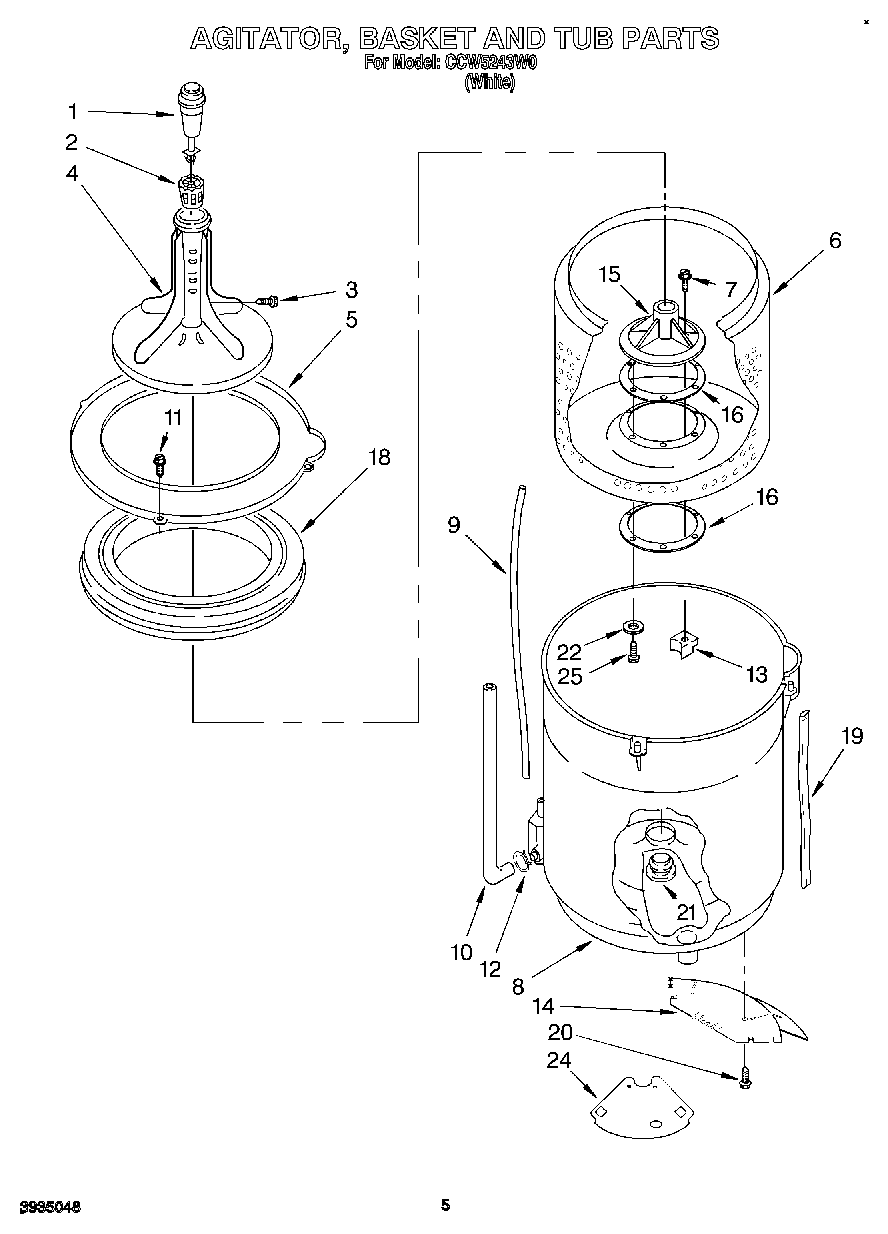

CCW5243W0 03 – AGITATOR, BASKET AND TUB

CCW5243W0 03 – AGITATOR, BASKET AND TUB

Written by

in

CCW5243W0 03 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP326018423 Whirlpool Dispenser Assembly
2Filter
4Agitator
5Tub Ring
6Basket
7Screw
8Tub
9WP353244 Whirlpool Hose
10Hose, Bleach
11Screw, Balance Ring (4)
12WP596669 Whirlpool Hose Clamp
13Saddle Block
14Shield, Tub/Motor
15Hub, Drive
16Gasket, Hub (2)
18Balance Ring
19Hose, Tub Overflow
20WP3400872 Whirlpool Screw
21WP3968381 Whirlpool Tub Seal
22Washer
24Shield, Tub/Solenoid
25Screw, 1/4 (6)
