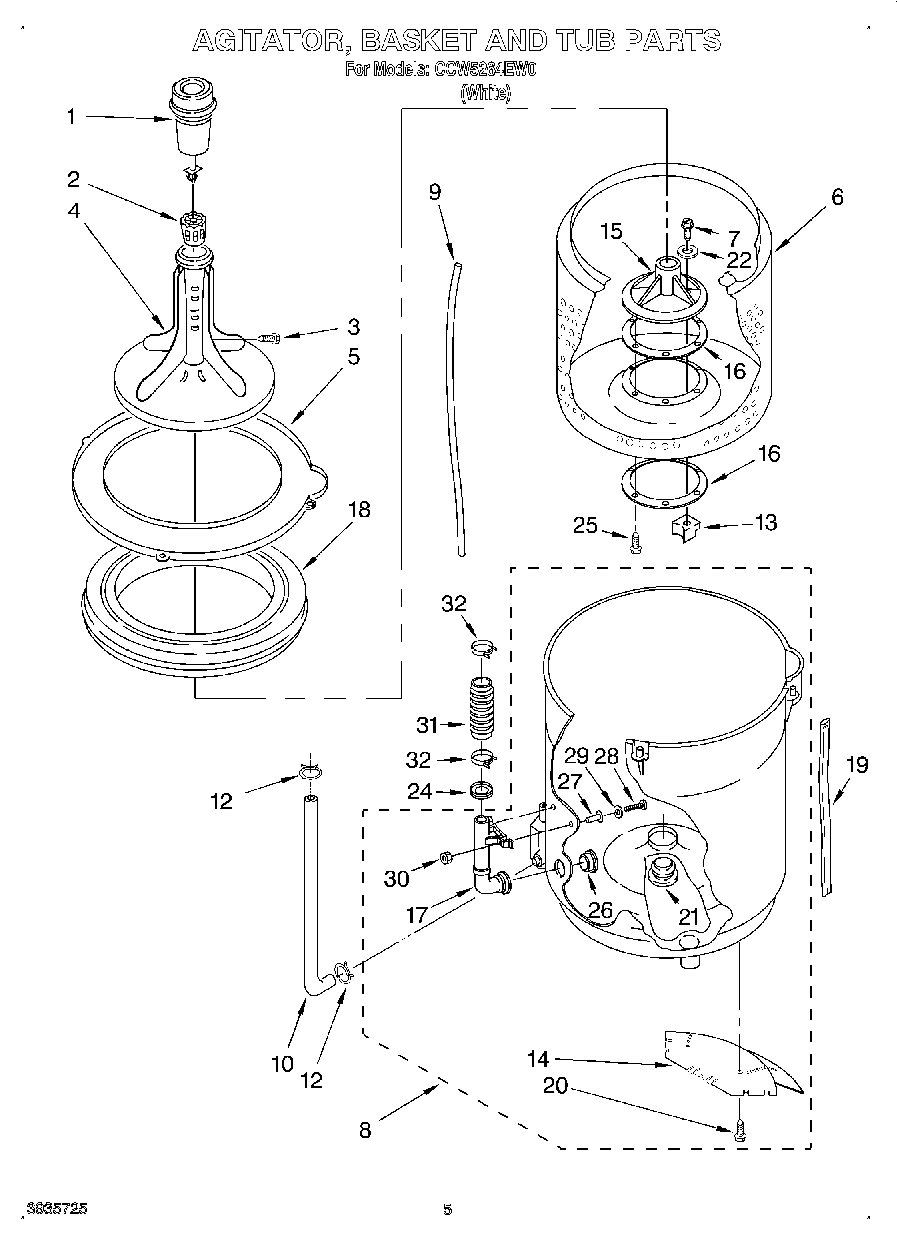

CCW5264EW0 03 – AGITATOR, BASKET, AND TUB

Products

PositionProduct
1WP326018423 Whirlpool Dispenser Assembly
2Filter
3Screw, Balance Ring (4)
4Agitator
5Tub Ring
6Basket
7Screw
8Tub & Inlet Asy.
9WP353244 Whirlpool Hose
10Hose, Bleach
12WP596669 Whirlpool Hose Clamp
13Saddle Block
14Shield, Tub/Motor
15Hub, Drive
16Gasket, Hub (2)
17Inlet-Tube Assy.
18Balance Ring
19Hose, Tub Overflow
20WP3400872 Whirlpool Screw
21WP3968381 Whirlpool Tub Seal
22Washer
24Ring-Protector
25Screw, 1/4 (6)
26Seal
27Well-Nut (2)
28Screw, Well Nut (2)
29Washer, Nut (2)
30Hex-Nut (2)
31Hose, Pump To Tub
32Clamp-Hose
