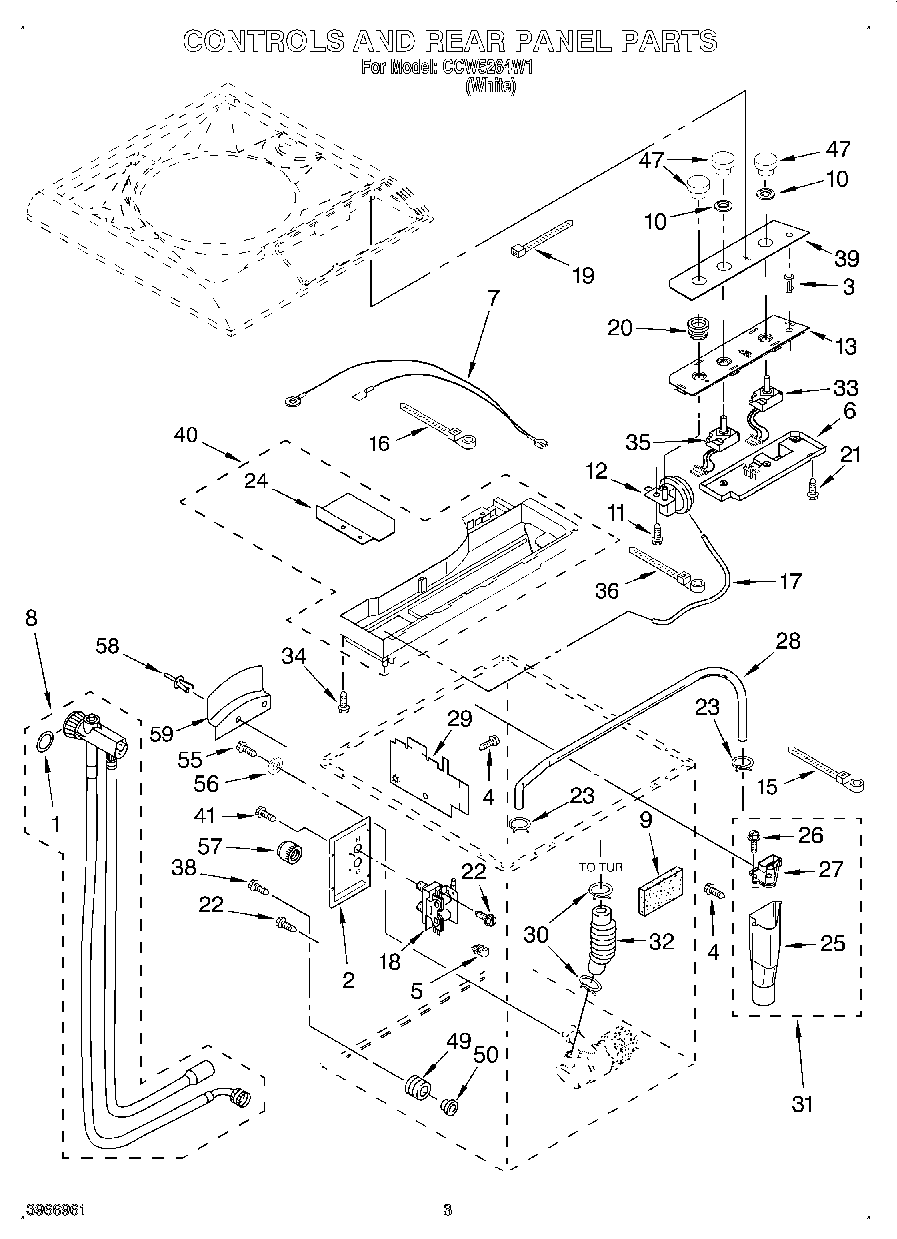

CCW5264W1 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	Bracket-Valve
3	Extension, Start-Pause
4	Screw, Console Cover (4)
5	Clip, Harness
6	Timer/Control Board
7	Jumper-Wire
8	W10849778 Whirlpool Hose Assembly
9	Pad-Protector
10	Seal
11	Screw, Switch Mtg.
12	Switch, Water Level
13	Bracket, Control (Must Order No. 3 And No. 39.)
15	Tie, Wire (2) (Push Mount)
16	Clamp, Tie Wrap
17	Hose, Pressure Switch.
18	Valve, Water Mixing
20	Seal, Pressure Switch
21	Screw, Control Board (3)
22	WP3400094 Whirlpool Screw
23	WP596669 Whirlpool Hose Clamp
24	Shield, Harness
25	Funnel-Inlet (Body)
26	WP3400872 Whirlpool Screw
27	Funnel-Inlet (Top)
28	Hose, Valve To Water Inlet
29	Shield & Warning Water Valve
30	WP616099 Whirlpool Clamp
31	Funnel-Inlet Asy.
32	Hose, Pump To Tub
33	Switch, Cycle Selection
34	Screw
35	Switch, Water Temperature
36	WP2205813 Whirlpool Refrigerator Wire Tie
38	Screw, Pump Mtg. (2)
39	Panel, Console (Includes Inlay) (White)
40	Top, Shield Assy.
41	Screw
47	Knob, Temperature
49	Grommet, Pump
50	Spacer, Pump (3)
55	Screw, Pump Mtg. (2)
56	Washer
57	WP356054 Whirlpool Cap Assembly
58	Rivet
59	Bracket, Hose Storage
