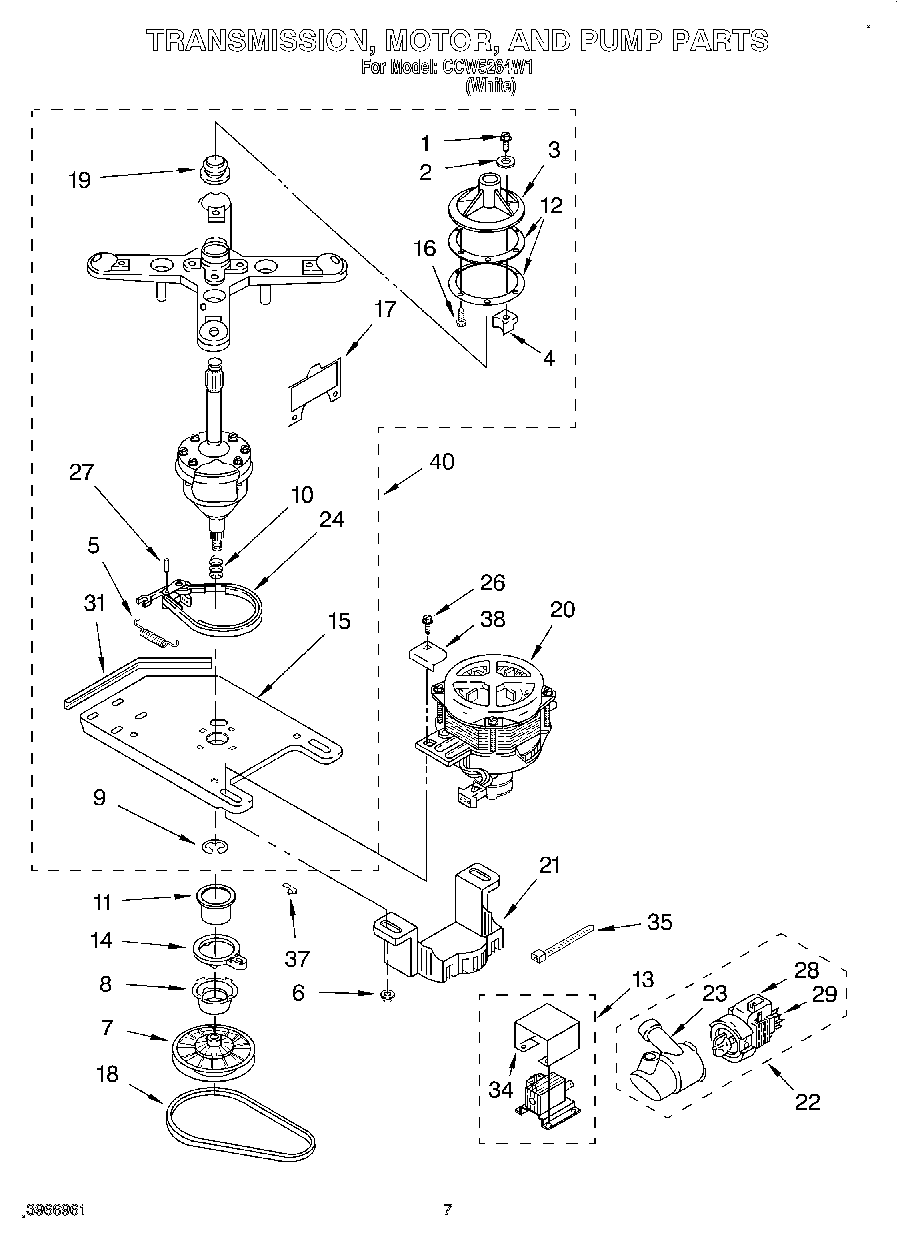

CCW5264W1 04 – TRANSMISSION, MOTOR AND PUMP
Written by
in
CCW5264W1 04 – TRANSMISSION, MOTOR AND PUMP
Products
Position
Product
1
Screw
2
Washer
3
Hub, Drive
4
Saddle Block
5
Spring, Brake
6
90984 Whirlpool Nut
7
Pulley, Splutch
8
Cam, Splutch
9
WP354987 Whirlpool C-Clip
10
Spring, Splutch
11
Slider, Splutch
12
Gasket, Hub (2)
13
Solenoid
14
Cam Ring, Splutch
15
Plate, Motor Mount
16
Screw, 1/4 (6)
17
Shield & Warning Motor Splash
18
Drive Belt
19
WP3968381 Whirlpool Tub Seal
20
Motor, Main Drive (Includes Items 33, 17, & 6)
21
Shield, Pulley
22
Pump (Complete)
23
Housing, Pump
24
Brake Band
26
Bolt, Motor Mounting (2)
27
Pin, Brake Band
28
Pump
29
Blade, Fan
31
Protector, Edge
34
Shield, Solenoid
35
WP2205813 Whirlpool Refrigerator Wire Tie
37
Lock, Solenoid
38
Shield, Motor Connector
40
Transmission Kit
←
