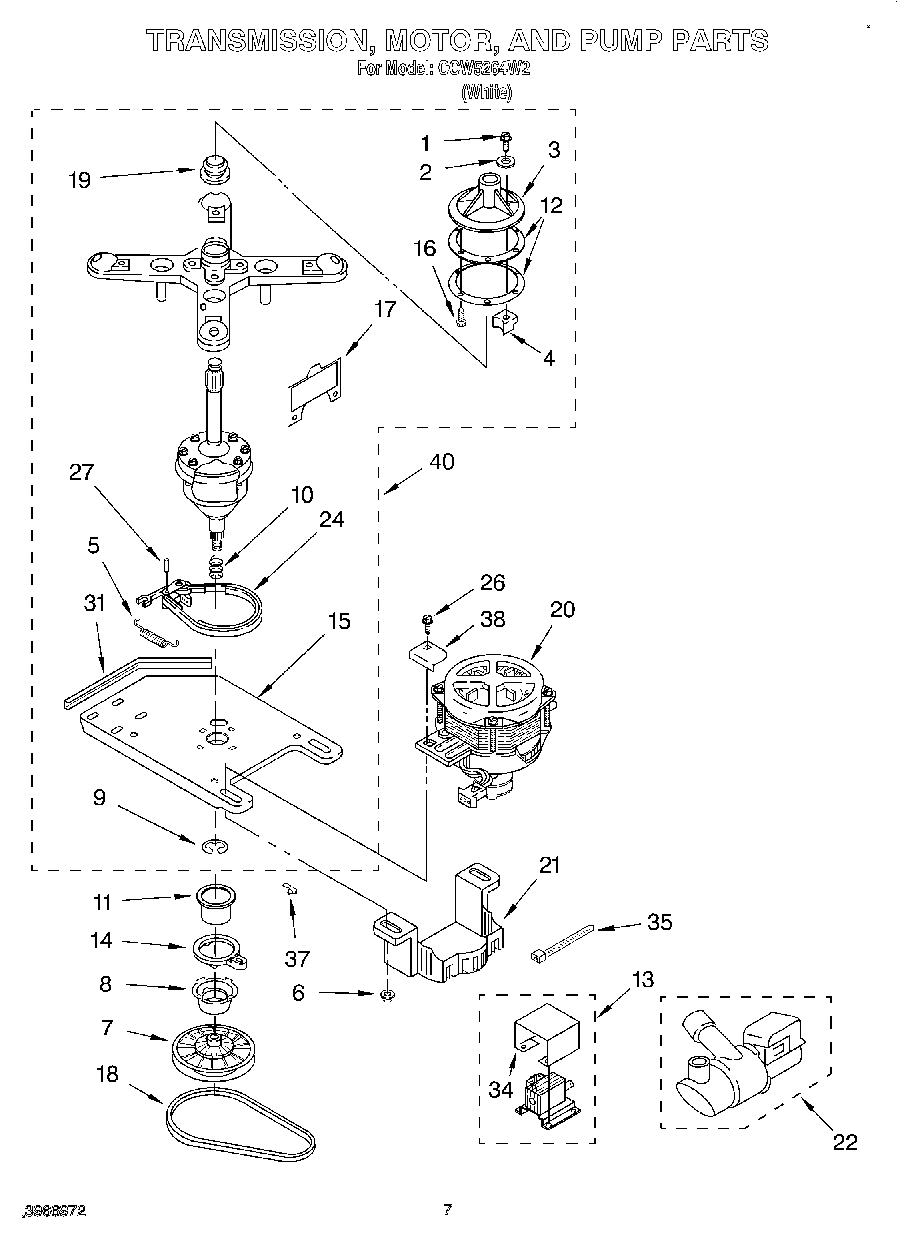

CCW5264W2 04 – TRANSMISSION, MOTOR AND PUMP

CCW5264W2 04 – TRANSMISSION, MOTOR AND PUMP

Written by

in

CCW5264W2 04 – TRANSMISSION, MOTOR AND PUMP

Products

PositionProduct
1Screw
2Washer
3Hub, Drive
4Saddle Block
5Spring, Brake
690984 Whirlpool Nut
7Pulley, Splutch
8Cam, Splutch
9WP354987 Whirlpool C-Clip
10Spring, Splutch
11Slider, Splutch
12Gasket, Hub (2)
13Solenoid
14Cam Ring, Splutch
15Plate, Motor Mount
16Screw, 1/4 (6)
17Shield & Warning Motor Splash
18Drive Belt
19WP3968381 Whirlpool Tub Seal
20Motor, Main Drive (Includes Items 33, 17, & 6)
21Shield, Pulley
22Pump & Shield
24Brake Band
26Bolt, Motor Mounting (2)
27Pin, Brake Band
31Protector, Edge
34Shield, Solenoid
35WP2205813 Whirlpool Refrigerator Wire Tie
37Lock, Solenoid
38Shield, Motor Connector
40Transmission Kit
