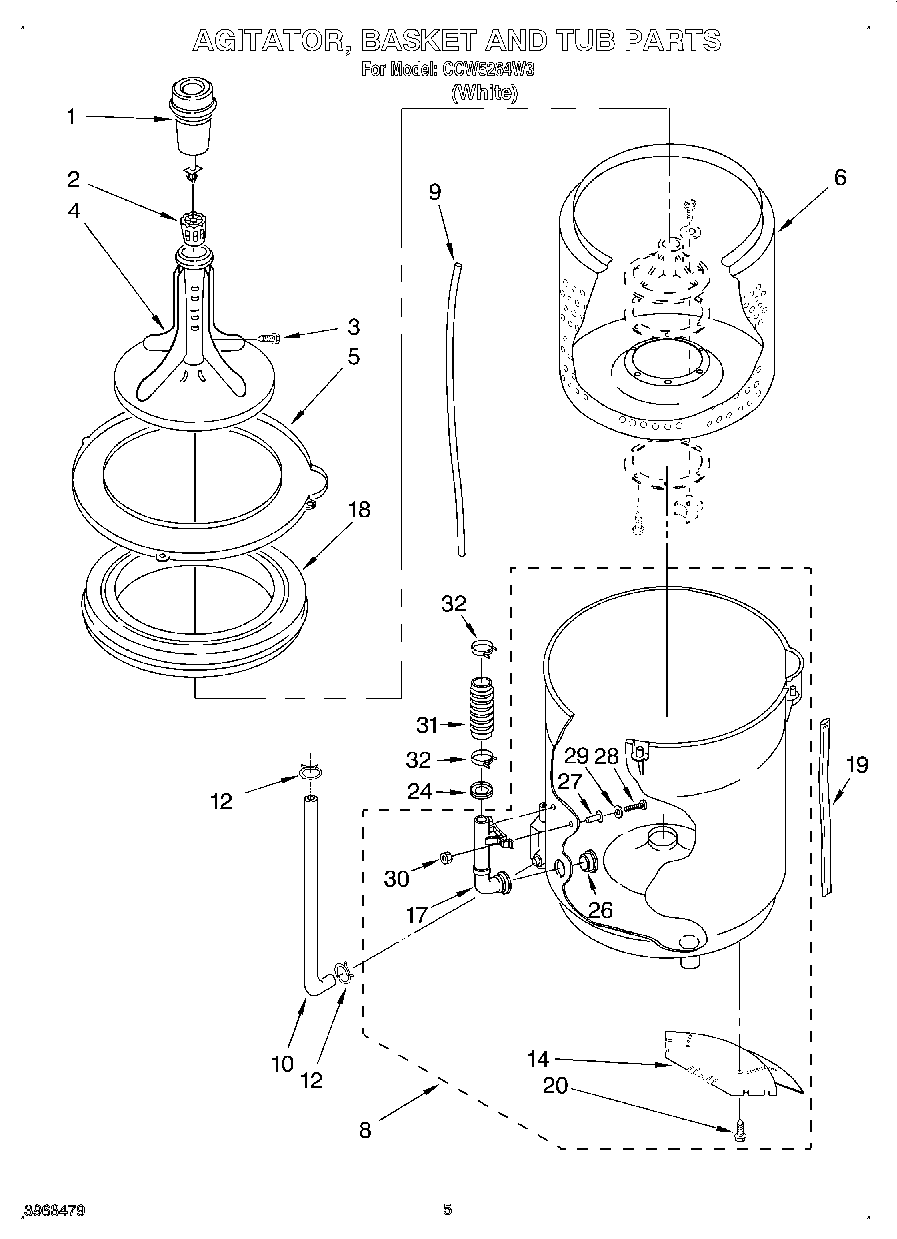

CCW5264W3 03 – AGITATOR, BASKET AND TUB

Products

Position	Product
1	WP326018423 Whirlpool Dispenser Assembly
2	Filter
3	Screw, Balance Ring (4)
4	Agitator
5	Tub Ring
6	Basket
8	Tub & Inlet Asy.
9	WP353244 Whirlpool Hose
10	Hose, Bleach
12	WP596669 Whirlpool Hose Clamp
14	Shield, Tub/Motor
17	Inlet-Tube Assy.
18	Balance Ring
19	Hose, Tub Overflow
20	WP3400872 Whirlpool Screw
24	Ring-Protector
26	Seal
27	Well-Nut (2)
28	Screw, Well Nut (2)
29	Washer, Nut (2)
30	Hex-Nut (2)
31	Hose, Pump To Tub
32	Clamp-Hose
