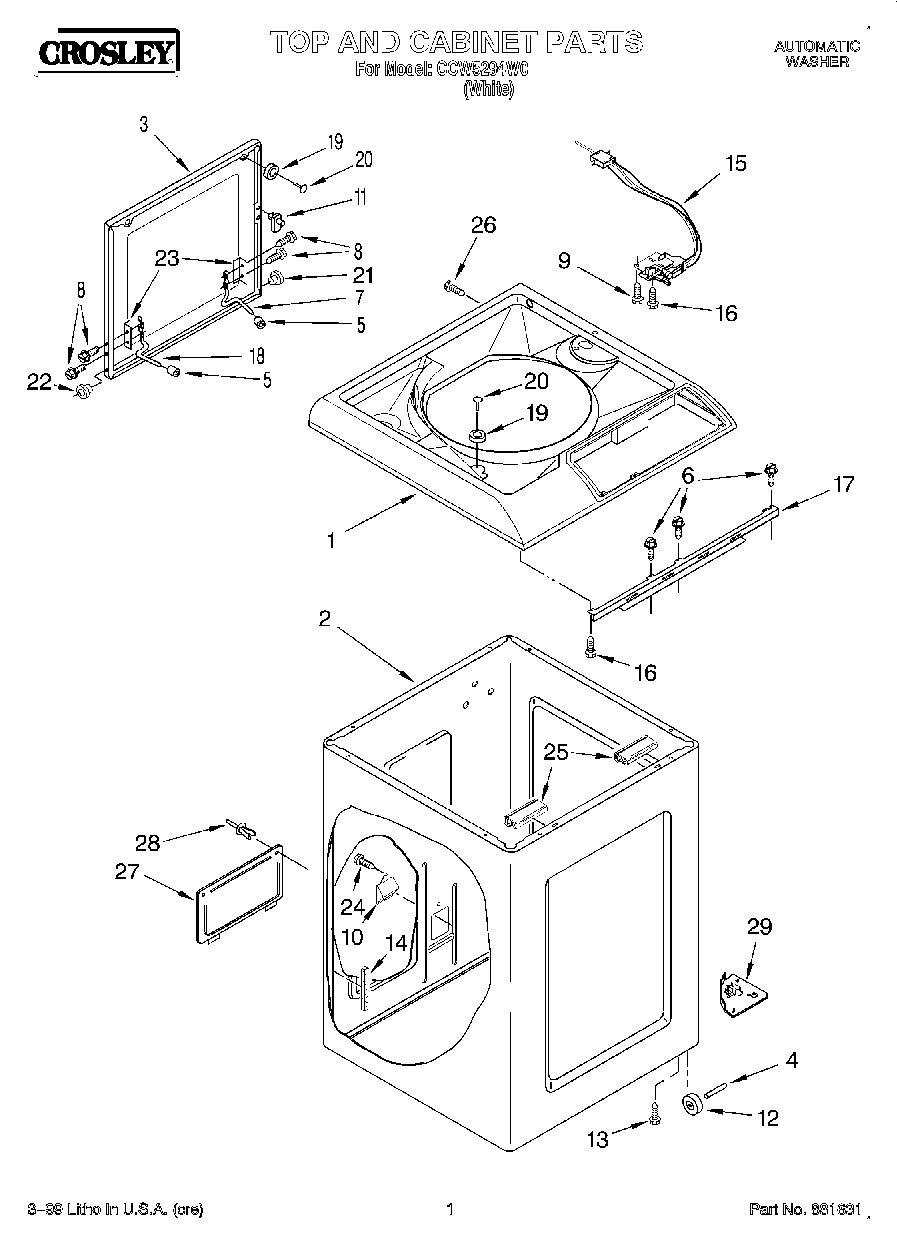

CCW5294W0 01 – TOP AND CABINETadmin2025-04-26T12:16:11+00:00CCW5294W0 01 – TOP AND CABINET
Products
| Position | Product |
|---|
| 1 | Top |
| 2 | Cabinet |
| 3 | Lid (White) |
| 4 | Pin, Wheel |
| 5 | Bumper, Lid Hinge |
| 6 | WP3400872 Whirlpool Screw |
| 7 | Hinge, Lid (R.H.) |
| 8 | SCREW |
| 9 | Screw |
| 10 | Cover, Pump |
| 11 | WP358684 Whirlpool Strike Assembly |
| 12 | Caster (4) |
| 13 | Screw |
| 14 | Protector, Edge |
| 15 | 285935 Whirlpool Lid Switch |
| 16 | Screw, Switch Mtg. |
| 17 | Bracket-Cabinet To Top |
| 18 | Hinge, Lid (L.H.) |
| 19 | Bumper |
| 20 | Rivet |
| 21 | Bearing, Hinge (RH) |
| 22 | Bearing, Hinge (LH) |
| 23 | WP21097 Whirlpool Pad |
| 24 | Screw, Pump Mtg. (2) |
| 25 | Extrude-Top |
| 26 | Screw, Console Cover (4) |
| 27 | Panel-Cabinet Access |
| 28 | Rivet, Plastic (2) |
| 29 | Gusset (Lower (L.H.)) |
| 29 | Gusset (Lower (R.H.)) |
