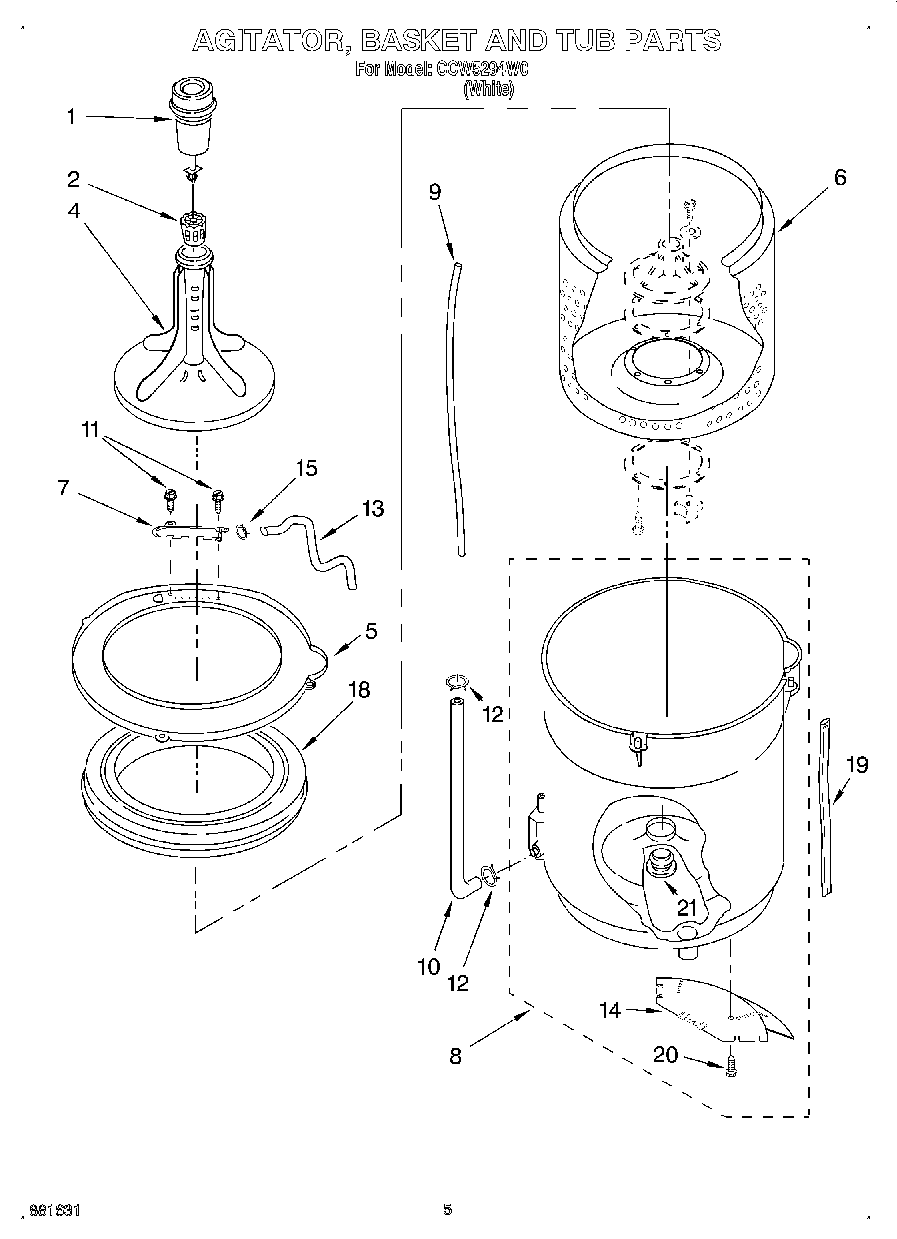

CCW5294W0 03 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP326018423 Whirlpool Dispenser Assembly
2Filter
4Agitator
5Tub Ring
6Basket
8Tub & Inlet Asy.
9WP353244 Whirlpool Hose
10Hose, Bleach
11WP3400872 Whirlpool Screw
12WP596669 Whirlpool Hose Clamp
13WP3969019 Whirlpool Vacuum Break
14Shield, Tub/Motor
15Clamp
18Balance Ring
19Hose, Tub Overflow
21WP3968381 Whirlpool Tub Seal
