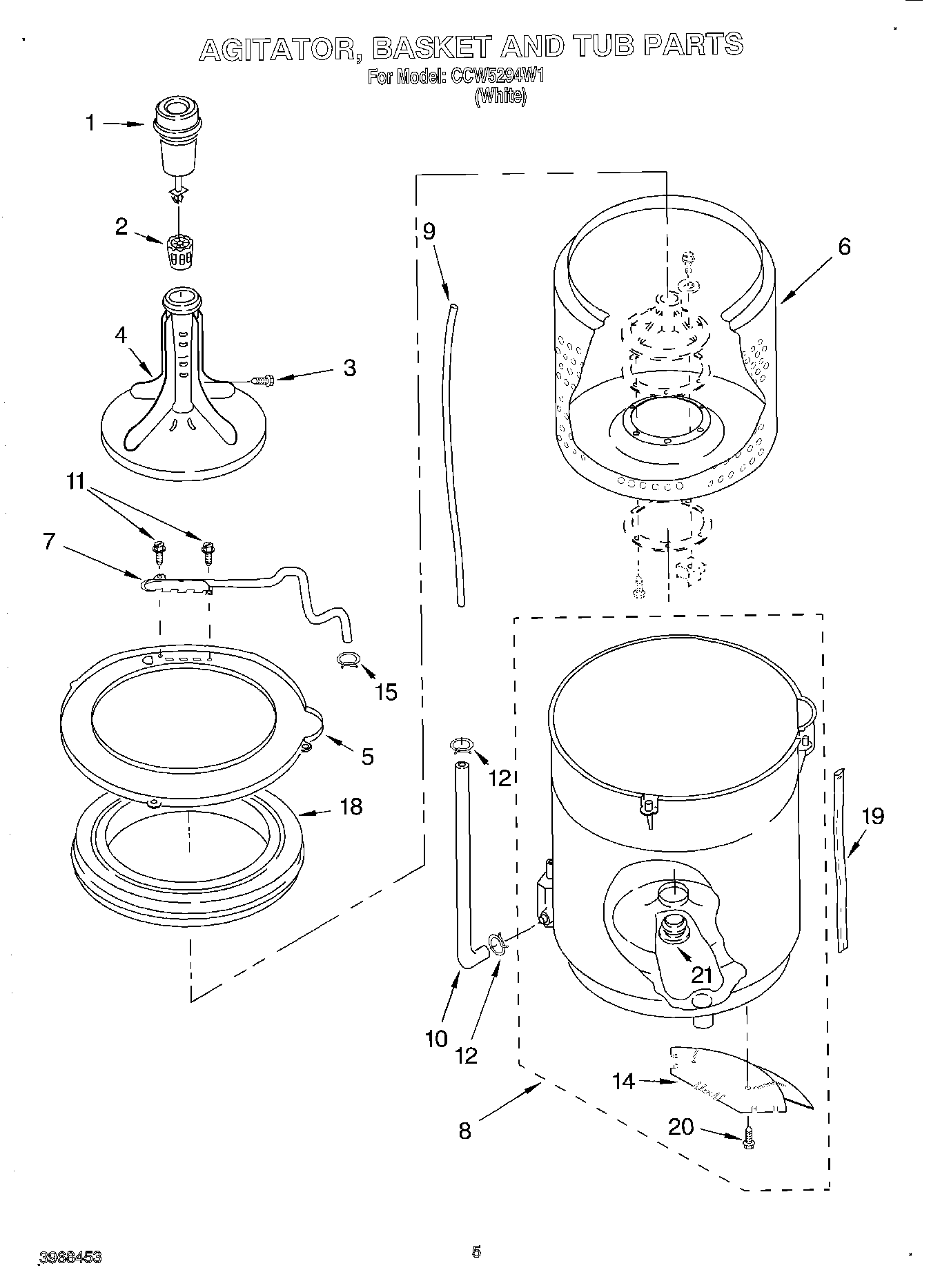

CCW5294W1 03 – AGITATOR, BASKET AND TUB

Products

Position	Product
1	WP326018423 Whirlpool Dispenser Assembly
2	Filter
3	W11700520 Whirlpool Screw
4	Agitator
5	Tub Ring
6	Basket
7	WP3969019 Whirlpool Vacuum Break
8	Tub & Inlet Asy.
9	WP353244 Whirlpool Hose
10	Hose, Bleach
11	WP3400872 Whirlpool Screw
12	WP596669 Whirlpool Hose Clamp
14	Shield, Tub/Motor
15	Clamp
18	Balance Ring
19	Hose, Tub Overflow
21	WP3968381 Whirlpool Tub Seal
