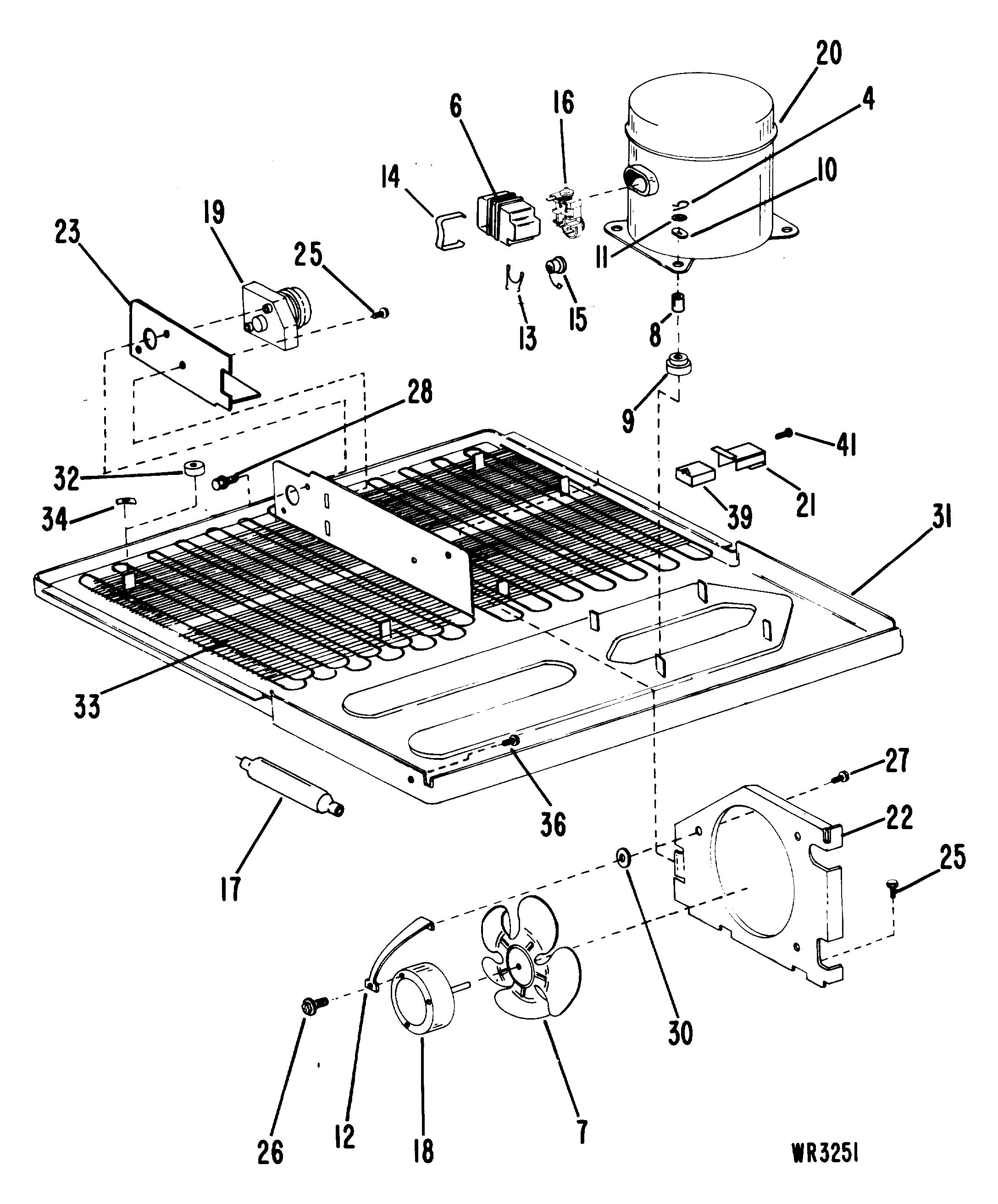

CCX20GJB COMPRESSOR COMPARTMENT PARTS

Products

Position	Product
4	CLIP-WIRE
6	COVER-TEMPERATURE ASM.
7	BLADE,FAN
8	SLEEVE,VINYL
9	GEN WR02X7442
11	CLIP
12	BRACKET,CONDENSER FAN
13	CLIP,OVERLOAD
14	CLAMP-TERMINAL COVER
15	GEN WR08X5179
16	GEN WR07X5138
17	WR86X25269 GE Refrigerator R134 Dryer
18	MOTOR,CONDENSER
19	WR9X502 GE Refrigerator Defrost Timer
20	COMPRESSOR
21	GEN WR02X7511
22	CONDENSER FAN SHROUD
23	BRACKET TIMER
25	SCREW
26	GEN WR01X5602
27	GEN WR01X5603
28	GEN WR01X5604
30	UNKNOWN
31	BASE PAN
32	UNKNOWN
33	GEN WR84X0102
34	UNKNOWN
36	UNKNOWN
41	GEN WR01X5580
