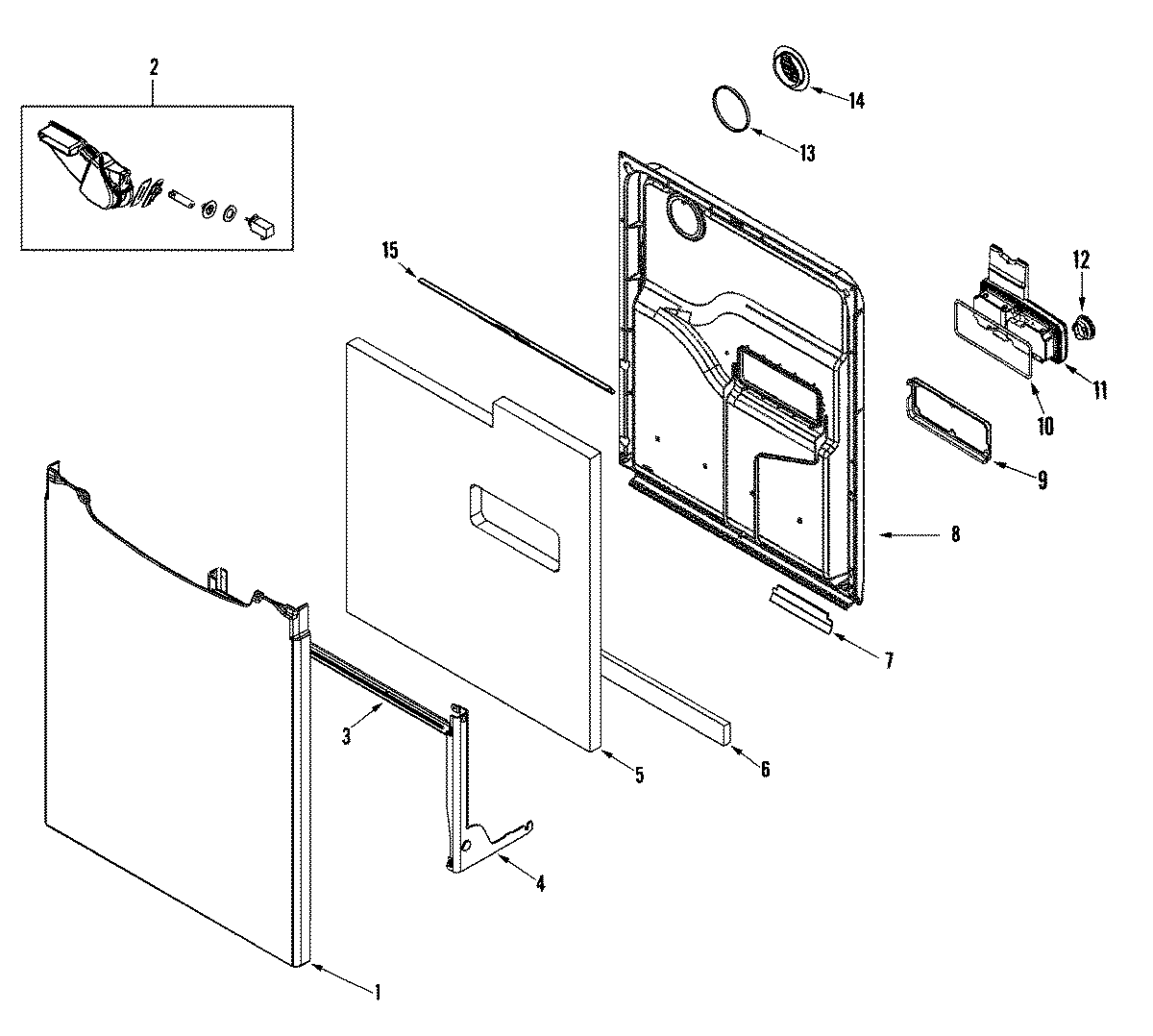

CDB1500AWB 02 – DOOR

Products

Position	Product
1	PANEL, DECO (W/DAMPER-BLK)
2	VENT HOUSING ASSEMBLY
3	MAY 99002604
4	MAY 99002929
4	WPW10118637 Whirlpool Dishwasher Bracket
4	MAY 99001075
5	INSULATION, DOOR
6	WPW10117748 Whirlpool Dishwasher Insulation Pad
7	WP99002589 Whirlpool Dishwasher Door Seal
8	MAY 99003482
8	MAY 99003541
8	DOOR LINER, SECONDARY
8	MAY 99003424
8	Foam Strip(Long)
9	6-918900 Whirlpool Dishwasher Bracket
9	SCREW, No.8X1/2 HEX WASHER HEAD
10	MAY 99002270
11	DETERGENT/RINSE AID DISPENSER
12	KNOB, RINSE AID (W/O-RING)
13	MAY 99002186
14	99002590 Whirlpool Dishwasher Door Vent Bezel
15	MAY 99002586
15	WPY912620 Whirlpool Dishwasher Screw
