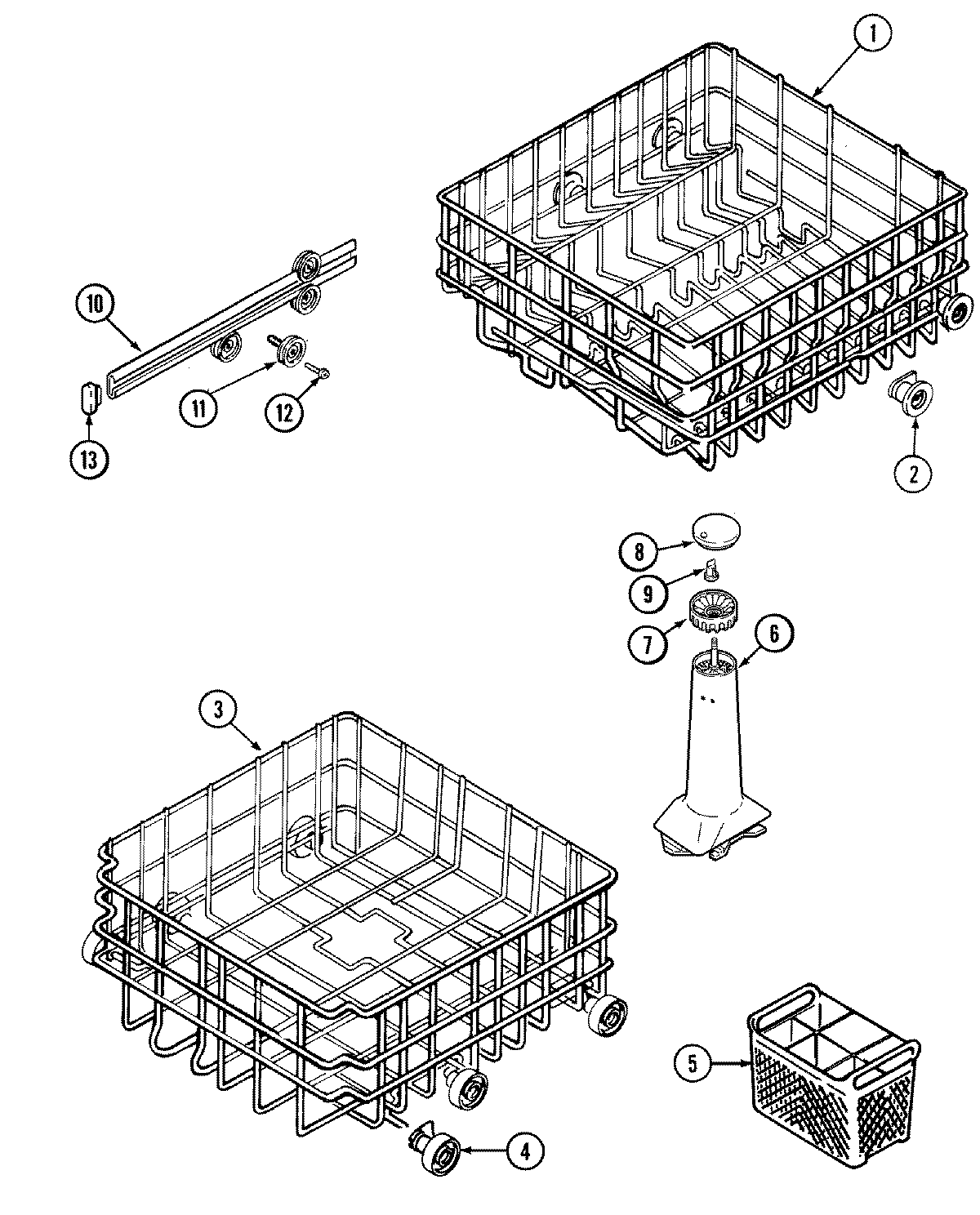

CDB3100AWT 05 – TRACK & RACK ASSEMBLY

CDB3100AWT 05 – TRACK & RACK ASSEMBLY

Written by

in

CDB3100AWT 05 – TRACK & RACK ASSEMBLY

Products

PositionProduct
NIMAY 99002016
1MAY 99002460
2WP903093 Whirlpool Dishwasher Rack Wheel
3W10139223 Whirlpool Dishwasher Lower Dish Rack
4MAY 903815
5WP99001576 Whirlpool Dishwasher Basket
6MAY 99002478
7MAY 99002422
8MAY 99002420
9MAY 99001426
10WPY912545 Whirlpool Dishwasher Track
11MAY 99002915
11WP99002342 Whirlpool Dishwasher Tub Wheel
11WPY912798 Whirlpool Dishwasher Tub Washer Wheel
12WP99002947 Whirlpool Tub Wheel
13WP99002136 Whirlpool Rack Stop
