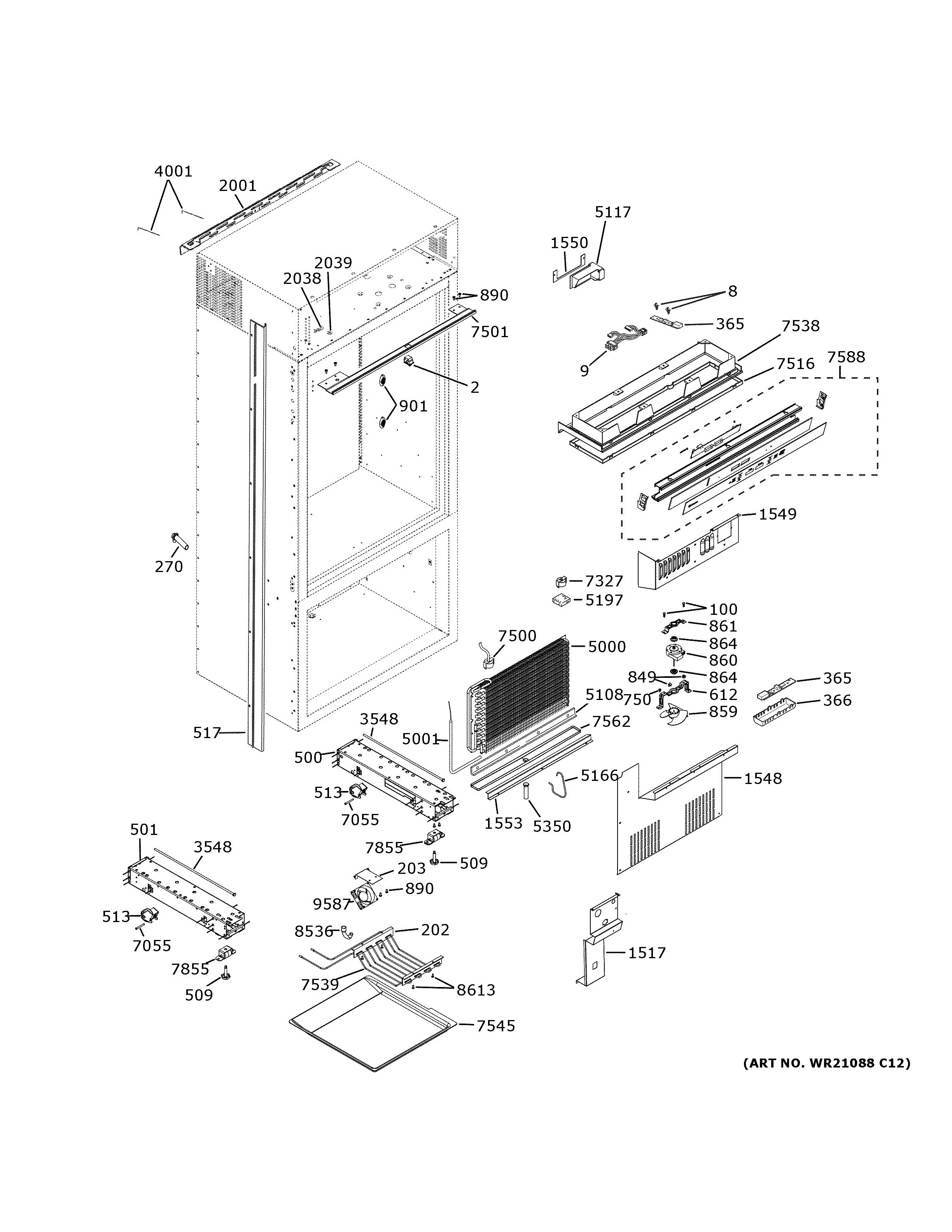

CDB36LP2PBS1 CABINET (1)

CDB36LP2PBS1 CABINET (1)

Written by

in

CDB36LP2PBS1 CABINET (1)

Products

PositionProduct
2WR23X37285 GE Light Switch
8WR02X23950 GE LED Board Standoff
9HARNESS LED BM FD
100SCREW, 10-24 X 1/2 TYPE
202BRACKET COND SUPPORT BM
203BRACKET FAN MTG
270WR02X13037 GE Water Fill Grommet
365WR55X11088 GE Refrigerator LED Board Light Assembly
366WR02X23939 GE Refrigerator LED Cover Lens
500RH BASE CHANNEL
501LH BASE CHANNEL
509LEVELING LEG
513WR2X8377 GE Refrigerator Wheel Assembly
517WR17X32374 GE Refrigerator Left Side Case
612WR02X10653 GE Refrigerator Orifice Fan Bracket
750WR1X1826 GE Refrigerator Screw
849BUMPER
859EVAPORATOR FAN BLADE
860WR60X10185 GE Refrigerator Evaporator Fan Motor
861WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
864WR02X12008 GE Refrigerator Evaporator Fan Grommet
890WD2X295 GE Refrigerator Screw
901WR71X10325 GE Refrigerator Air Diffuser
1517WR02X13607 GE Refrigerator Fill Tube Cover
1548WR74X23406 GE Refrigerator Evaporator Cover
1549EVAPORATOR FAN COVER
1550WR17X11009 GE Refrigerator Bracket Damper Mounting
1553WR17X23352 GE Evaporator Trough Catch
2001WR02X42385 GE Wall Mounting Bracket
2001BRUSHED BRONZE DOOR HANDLE
2038HAIRPIN COTTER
2039WR01X10906 GE Washer 3/8"
3548WR01X10256 GE Refrigerator Base Shaft
4001ROD
5000WR87X20947 GE Refrigerator Evaporator BM Assembly
5001WR51X10125 GE Refrigerator Defrost Heater
5108WR17X10349 GE Refrigerator Drain Baffle
5117DAMPER ASM
5166WR01X10045 GE Refrigerator Wire RET Evaporator Heater
5197WR02X10145 GE Refrigerator Left Hand Evaporator Baffle
5350WR17X26689 GE Refrigerator Drain Tube
7055WR02X43425 GE Wheel Axle
7327THERMOSTAT DEF
7500WR50X10105 GE Refrigerator Evaporator TOD
7501WR17X11561 GE Refrigerator Switch Plate Left Hand
7516SHIELD LIGHT SNAP IN
7538WR17X11015 GE Trim Lighting
7539WR84X23357 GE Refrigerator Bottom Condenser BM
7545WR17X11016 GE Refrigerator Drain Pan
7562WR17X11098 GE Refrigerator Evaporator Trough
7588TEMPERATURE CONTROL BOARD AND HOUSING
7855WR02X11210 GE Refrigerator Front Roller Assembly
8536WR17X10675 GE Refrigerator Drain Trap AUX Condenser
8613WR1X2129 GE Screw
9587WR60X23405 GE Refrigerator Drain Fan Assembly
