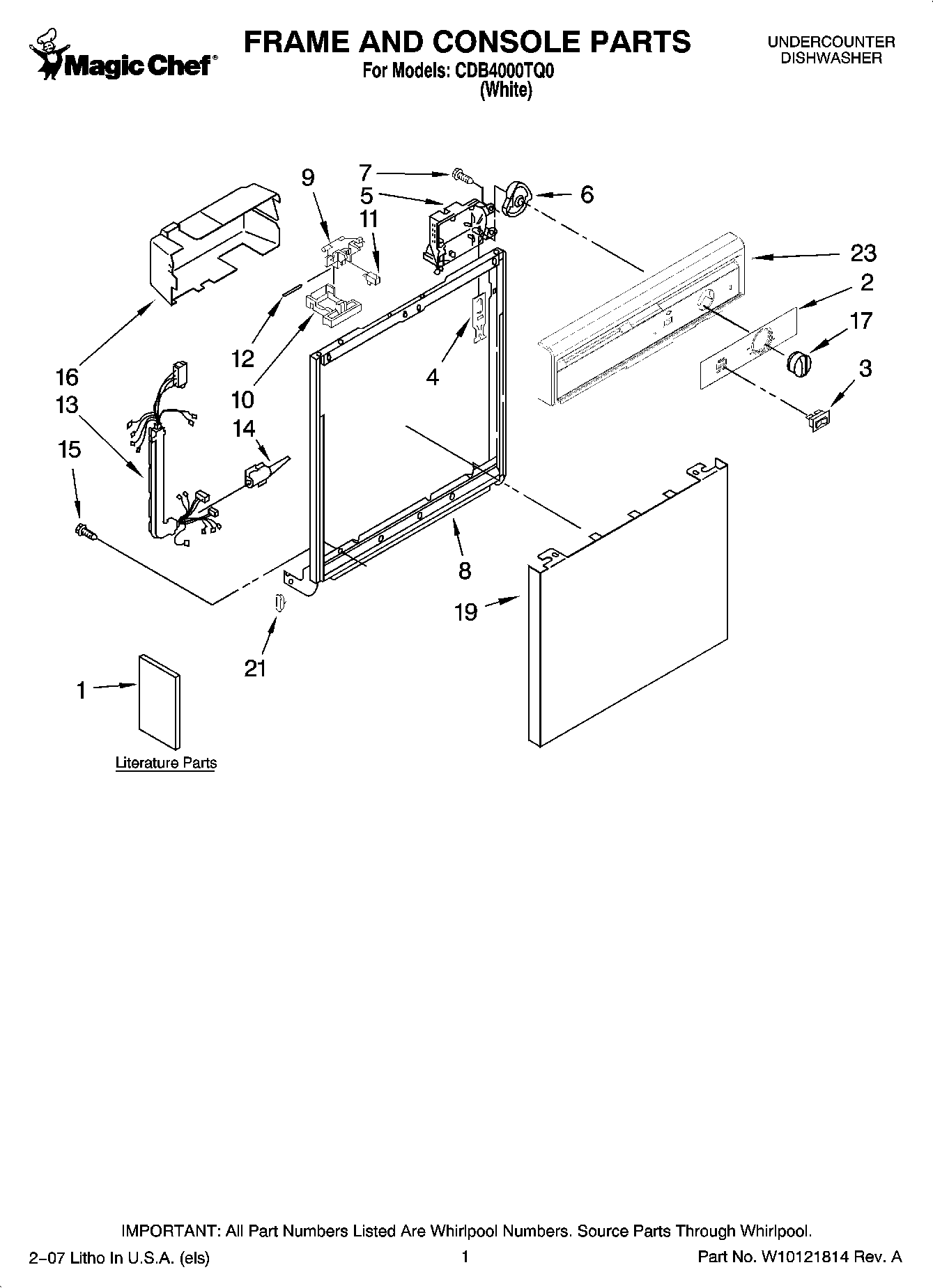

CDB4000TQ0 01 – FRAME AND CONSOLE PARTS

Products

Position	Product
1	MAY W10102655
1	MAY W10102657
1	Instructions, Installation (Supplement) (Location Your Water Supply)
1	MAY 8535436
1	MAY 3385496
2	MAY W10102653
3	MAY 8051730
4	MAY 3369529
5	MAY 8535372
6	MAY 8271510
7	SCREW
8	Door Frame
9	MAY 3380854
10	Lever, Latch (White)
11	SWITCH, DOOR
12	MAY 3368955
13	MAY 8573186
14	MAY 3376405
15	MAY 3400892
16	Cover Timer
17	MAY 8275309
19	Front Panel (White)
21	Bearing, Spring, (2)
23	MAY W10102651
