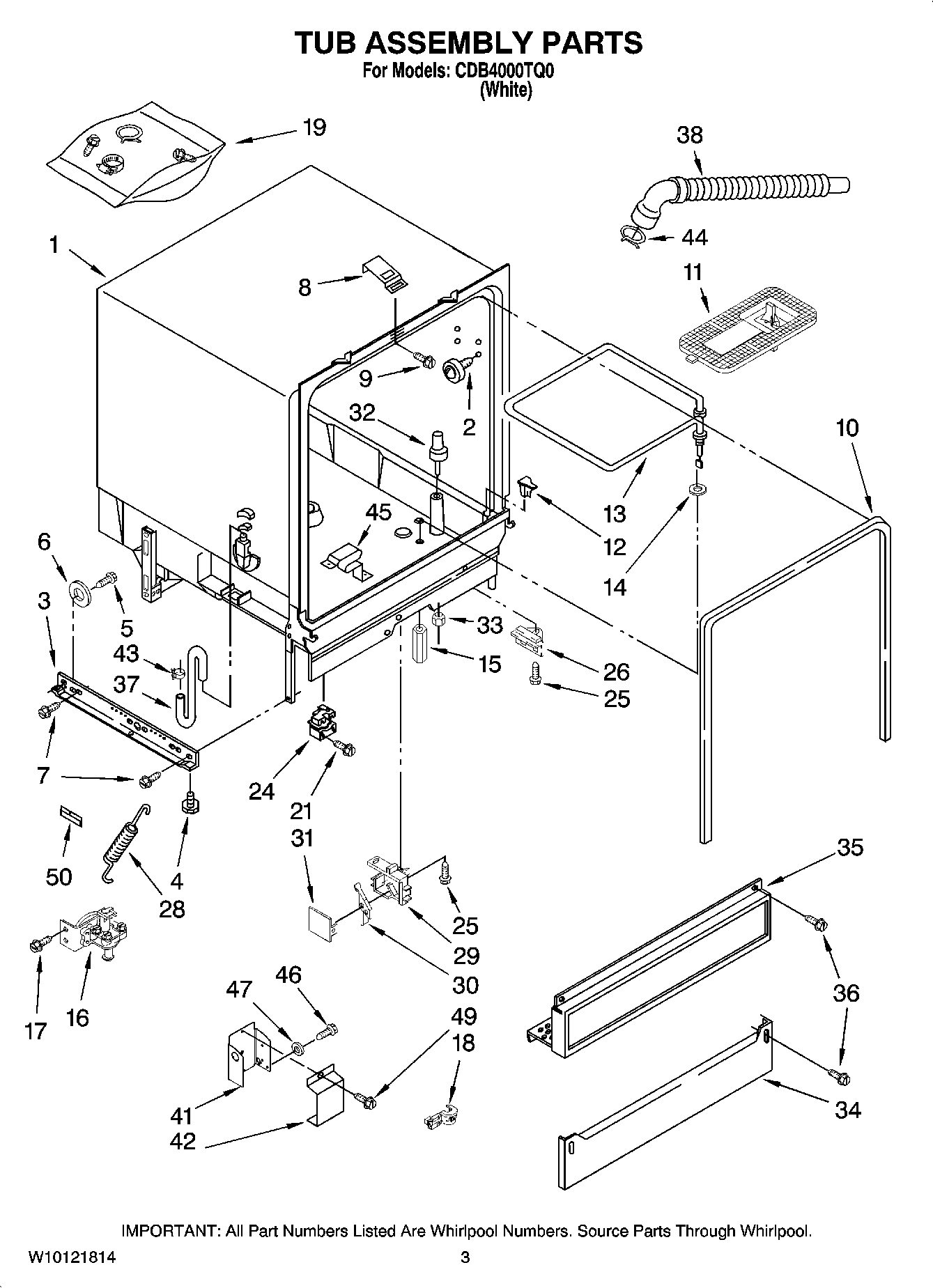

CDB4000TQ0 03 – TUB ASSEMBLY PARTS

Products

Position	Product
1	Tub Assembly
2	Tub, Wheel Assembly
3	MAY 3368933
4	LEG, LEVELING
5	SCREW
6	MAY 302819
7	SCREW
8	MAY 3378149
9	Screw, 8-32
10	MAY 3376927
11	MAY 3369322
12	Deflector
13	MAY 8519827
14	WASHER, HEATER ELEMENT
15	NUT, HEATER ELEMENT
16	MAY 8283345
17	Screw
18	MAY 8573061
19	Miscellaneous Parts Bag (Includes 2 Screws & 2 Hose Clamps)
21	MAY 3370225
24	MAY 3369063
25	SCREW
26	MAY 3368928
28	MAY 3374343
29	MAY 8318218
30	MAY 3369067
31	MAY 8318219
32	MAY 8519552
33	MAY 717488
34	Toe, Panel (White)
35	Access Panel (White)
36	SCREW (BLACK)
37	MAY 3369414
38	MAY 3374077
41	MAY 8573951
42	Cover Assembly, Terminal Box
43	MAY 301958
44	MAY 356138
45	MAY 3379740
46	MAY 3400014
47	WASHER, PRONGED CUP
49	Screw, 8-18
50	MAY 8052018
