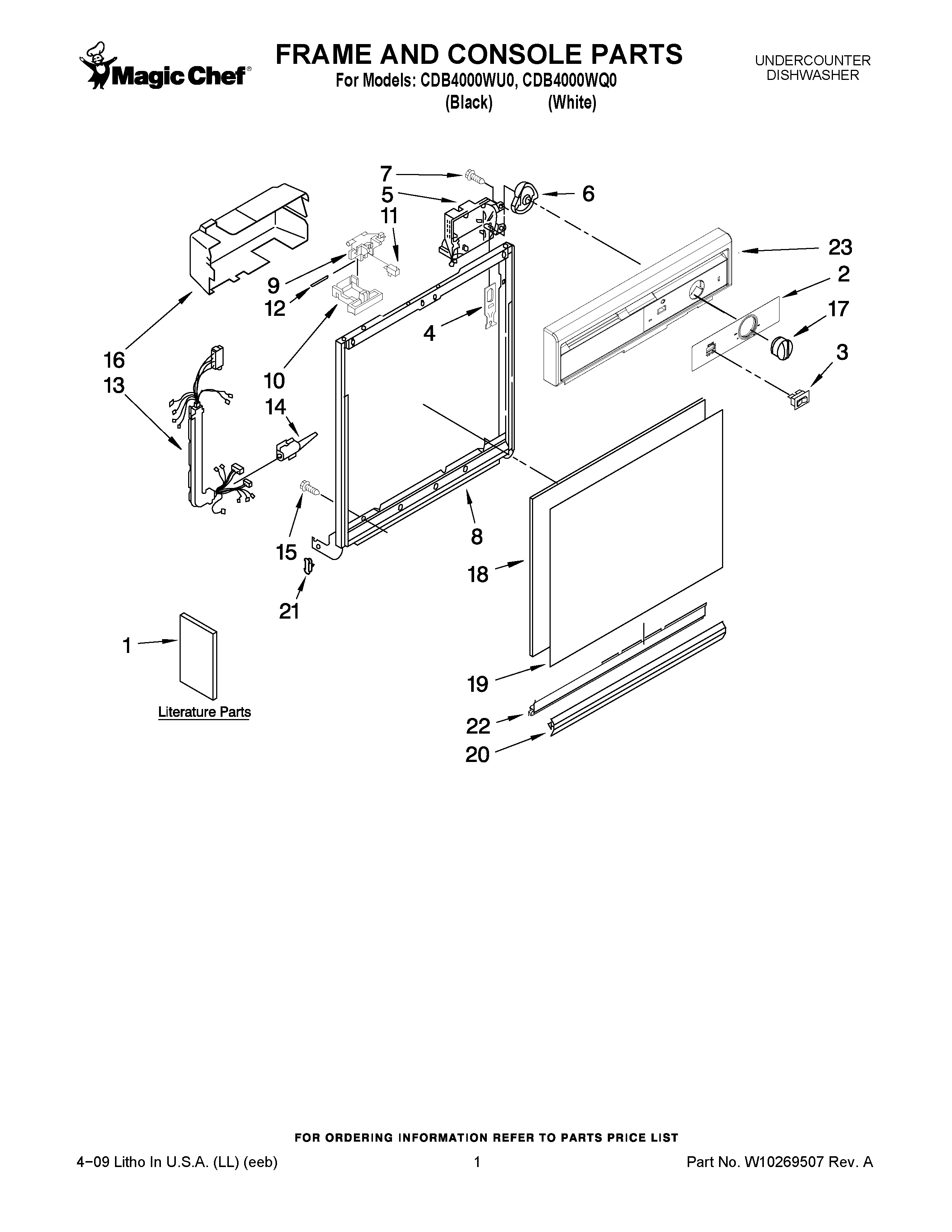

CDB4000WU0 01 – FRAME AND CONSOLE PARTS

Products

Position	Product
1	MAY W10102657
1	MAY 3385496
1	MAY 8535436
1	MAY W10130980
1	MAY W10240237
1	MAY W10133155
2	MAY W10102652
2	MAY W10240220
2	MAY W10240221
3	SWITCH, ROCKER (BLACK)
3	MAY 8051730
4	MAY 3369529
5	MAY W10039490
6	MAY 8271510
7	SCREW
8	Door Frame
9	MAY 3380854
10	MAY 3369457
11	SWITCH, DOOR
12	MAY 3368955
13	MAY 8573186
14	MAY 3376405
15	MAY 3400892
16	Cover Timer
17	KNOB, TIMER (BLACK)
17	MAY 8275309
18	Spacer, Corrugated
19	MAY 8274853
19	Front Panel (Black/Almond)
20	MAY 3374010
21	Bearing, Spring, (2)
22	Channel, Retainer
23	MAY W10102650
23	MAY W10254722
23	MAY W10254723
