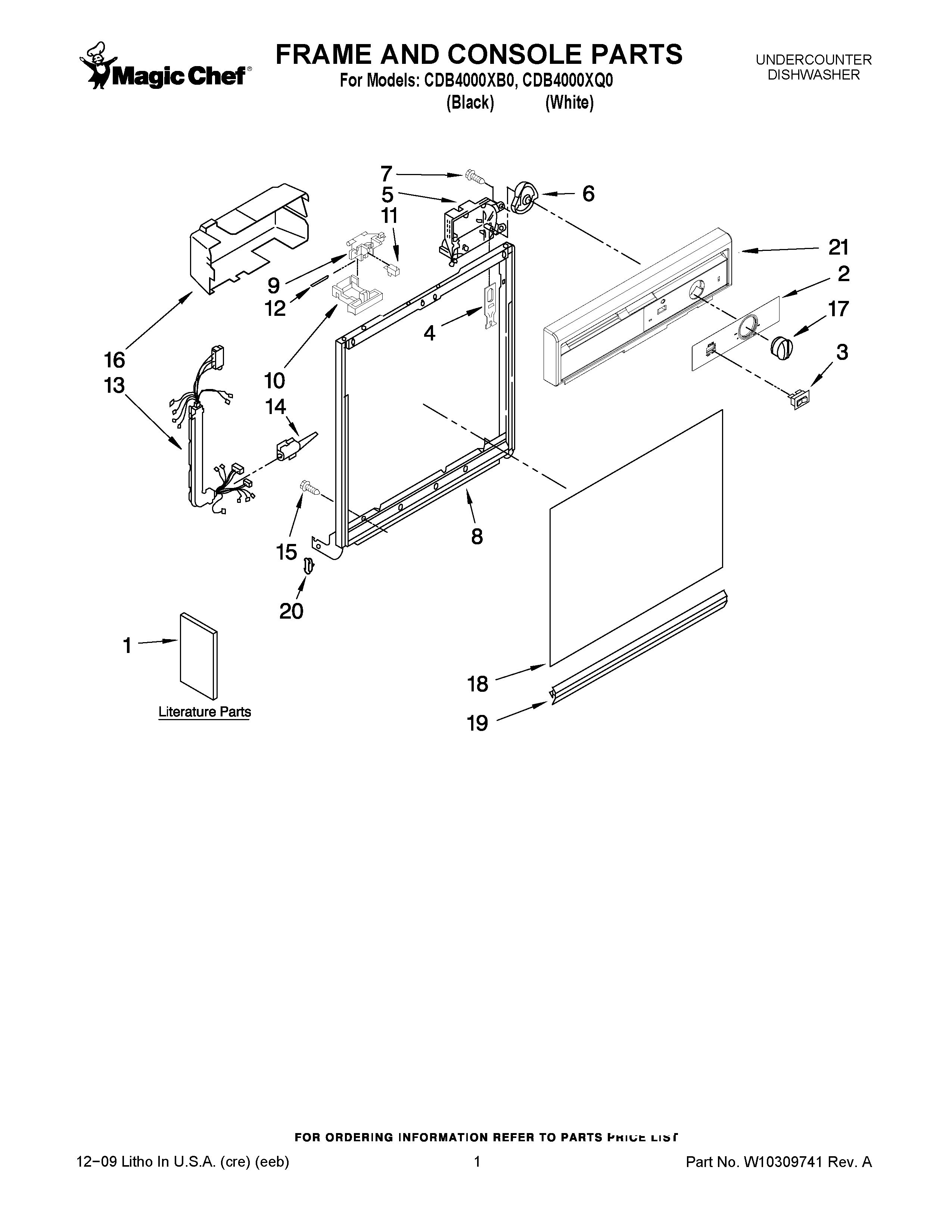

CDB4000XB0 01 – FRAME AND CONSOLE PARTS

CDB4000XB0 01 – FRAME AND CONSOLE PARTS

Written by

in

CDB4000XB0 01 – FRAME AND CONSOLE PARTS

Products

Position	Product
1	MAY W10224133
1	INSTRUCTIONS, INSTALLATION
1	MAY 8535436
1	MAY W10039930
1	MAY W10130980
2	MAY W10240221
2	MAY W10240220
3	SWITCH, ROCKER (BLACK)
3	MAY 8051730
4	MAY 3369529
5	MAY W10039490
6	MAY 8271510
7	SCREW
8	Door Frame
9	MAY 3380854
10	MAY 3369457
11	SWITCH, DOOR
12	MAY 3368955
13	MAY 8573186
14	MAY 3376405
15	MAY 3400892
16	Cover Timer
17	MAY 8275309
18	FRONT PANEL (BLACK)
18	Front Panel (White)
19	MAY 3374010
20	Bearing, Spring, (2)
21	MAY W10240307
21	MAY W10240308
