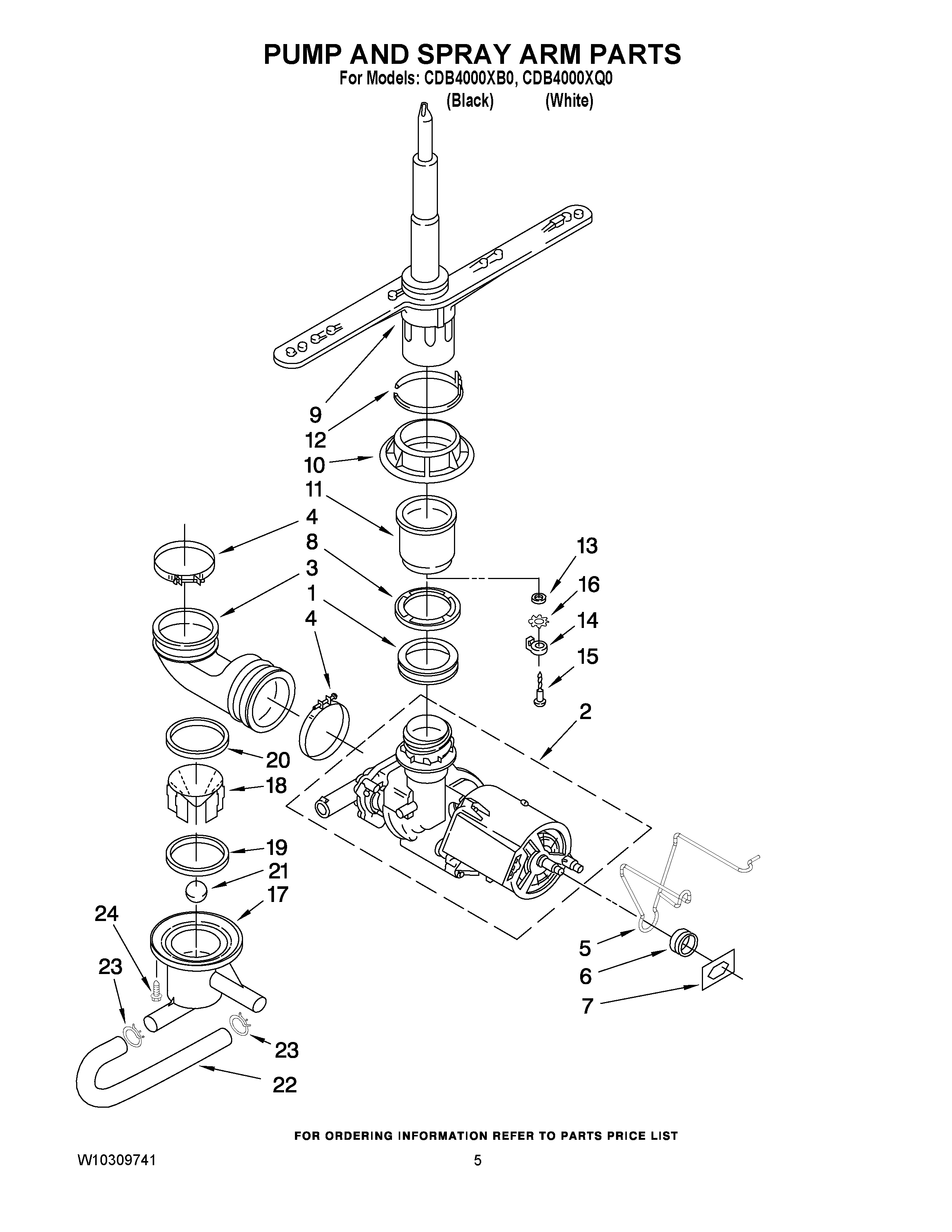

CDB4000XB0 04 – PUMP AND SPRAY ARM PARTS

Products

Position	Product
1	MAY 3369037
2	PUMP & MOTOR ASSEMBLY
3	MAY 3369035
4	MAY 3400959
5	MAY W10113908
6	MAY 8535657
7	Pushnut, Motor Support
8	MAY 3369038
9	MAY W10164258
10	MAY 8268883
11	MAY 3371745
12	MAY 3369045
13	MAY 3369044
14	MAY 3371746
15	MAY 3371744
16	MAY 3371634
17	Collector (Includes Items 20 & 22)
18	MAY 8520841
19	Seal, Funnel
20	MAY 3369177
21	MAY 3369178
22	MAY 8520842
23	Hose, Clamp
24	Screw, 10-16, Hi-Lo (4)
