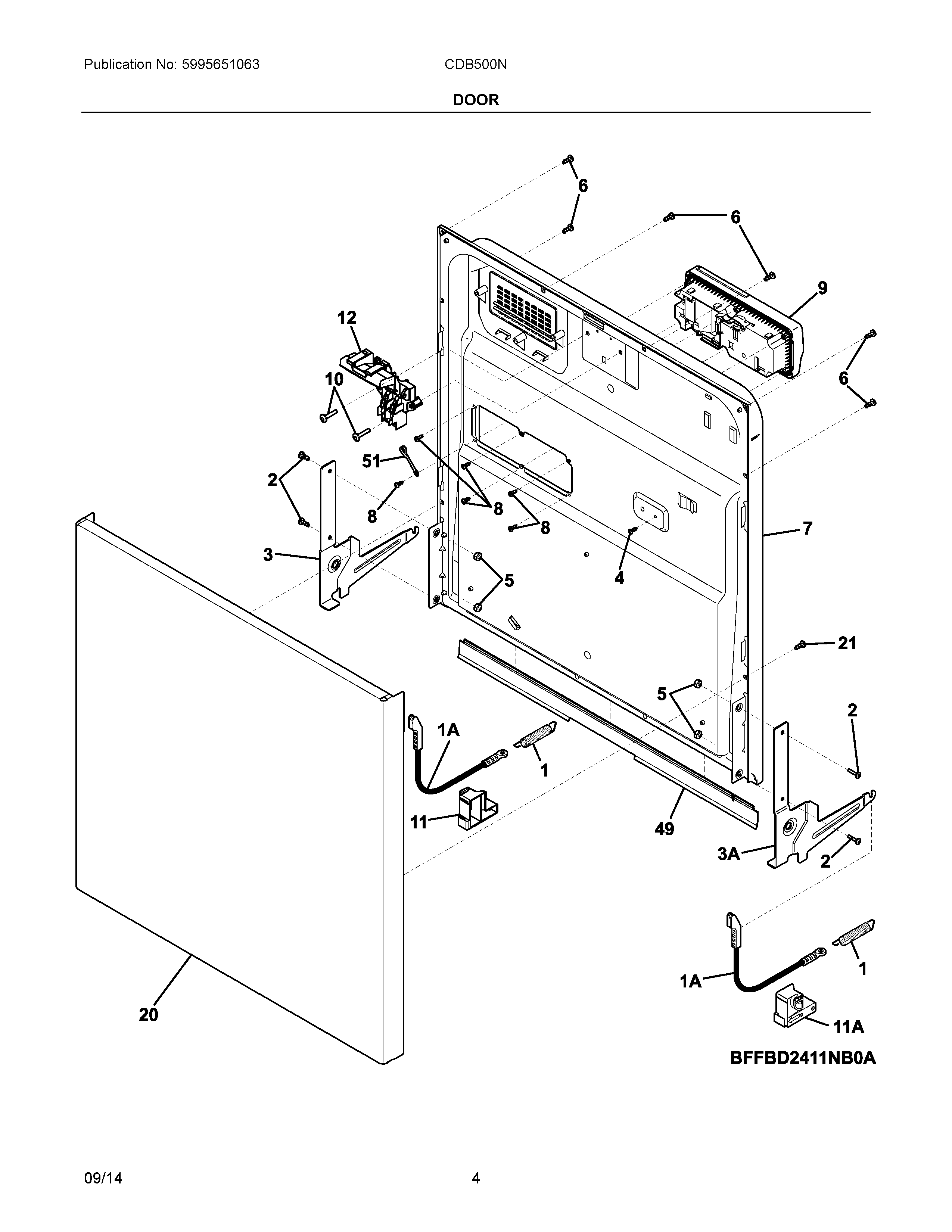

CDB500NS2A 03 – DOOR

Products

Position	Product
NI	154647101 Frigidaire Dishwasher Pin Hinge
NI	154686401 Frigidaire Dishwasher Bearing
NIA	5304525214 Frigidaire Dishwasher Shield
1	154579101 Frigidaire Dishwasher Door Spring
1A	154756401 Frigidaire Hinge Cable
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3A	5304513274 Frigidaire Dishwasher Counterbalance Arm Left Right
4	808326801 Frigidaire Dishwasher Screw
5	5303013272 Frigidaire Oven Nut
6	154783101 Frigidaire Dishwasher Screw
7	WCI 154494601
8	154294701 Frigidaire Dishwasher Screw
9	5304506521 Frigidaire Dishwasher Dispenser
10	154103702 Frigidaire Dishwasher Screw
11A	154579202 Frigidaire Dishwasher Pulley
11	154579201 Frigidaire Dishwasher Pulley
12	A00099902 Frigidaire Dishwasher Latch Door
20	DOOR ASSY, STAINLESS, OUTER, W/DAMPENERS
21	154754701 Frigidaire Dishwasher Screw
49	809006501 Frigidaire Bottom Seal/Gasket Door
51	WCI 154320301
