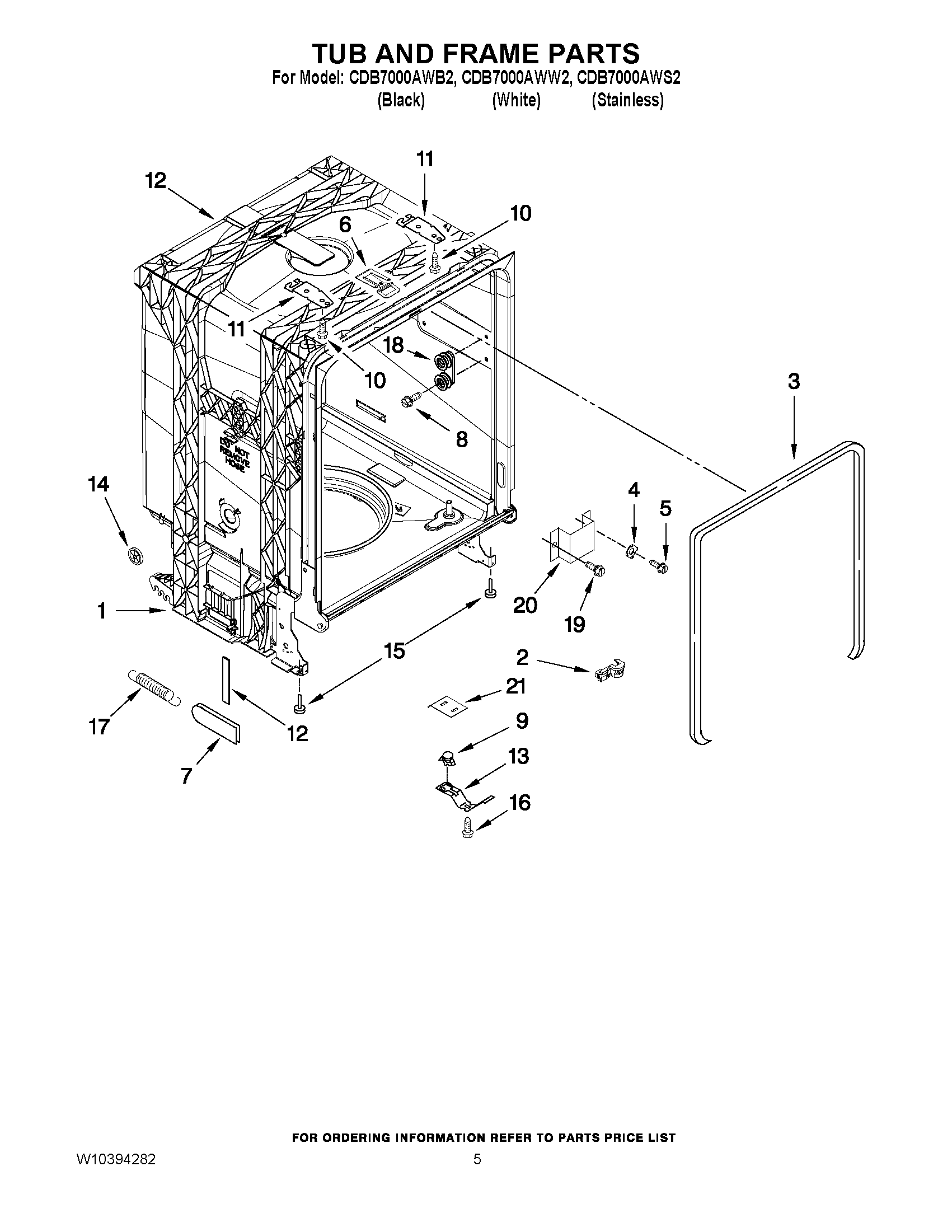

CDB7000AWB2 05 – TUB AND FRAME PARTS

Written by

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	MAY 8573061
3	MAY W10284090
4	WASHER, PRONGED CUP
5	MAY 3400014
6	STRIKE, LATCH
7	MAY 8268990
8	MAY W10341745
9	MAY 661566
10	MAY 3367670
11	MAY 8269145
12	SLEEVE, FRICTION
13	MAY 3378595
14	MAY 8269831
15	MAY 8524584
16	SCREW
17	MAY 8524473
18	MAY 8270016
19	MAY 3400892
20	MAY 8268991
21	SHIELD, THERMOSTAT
