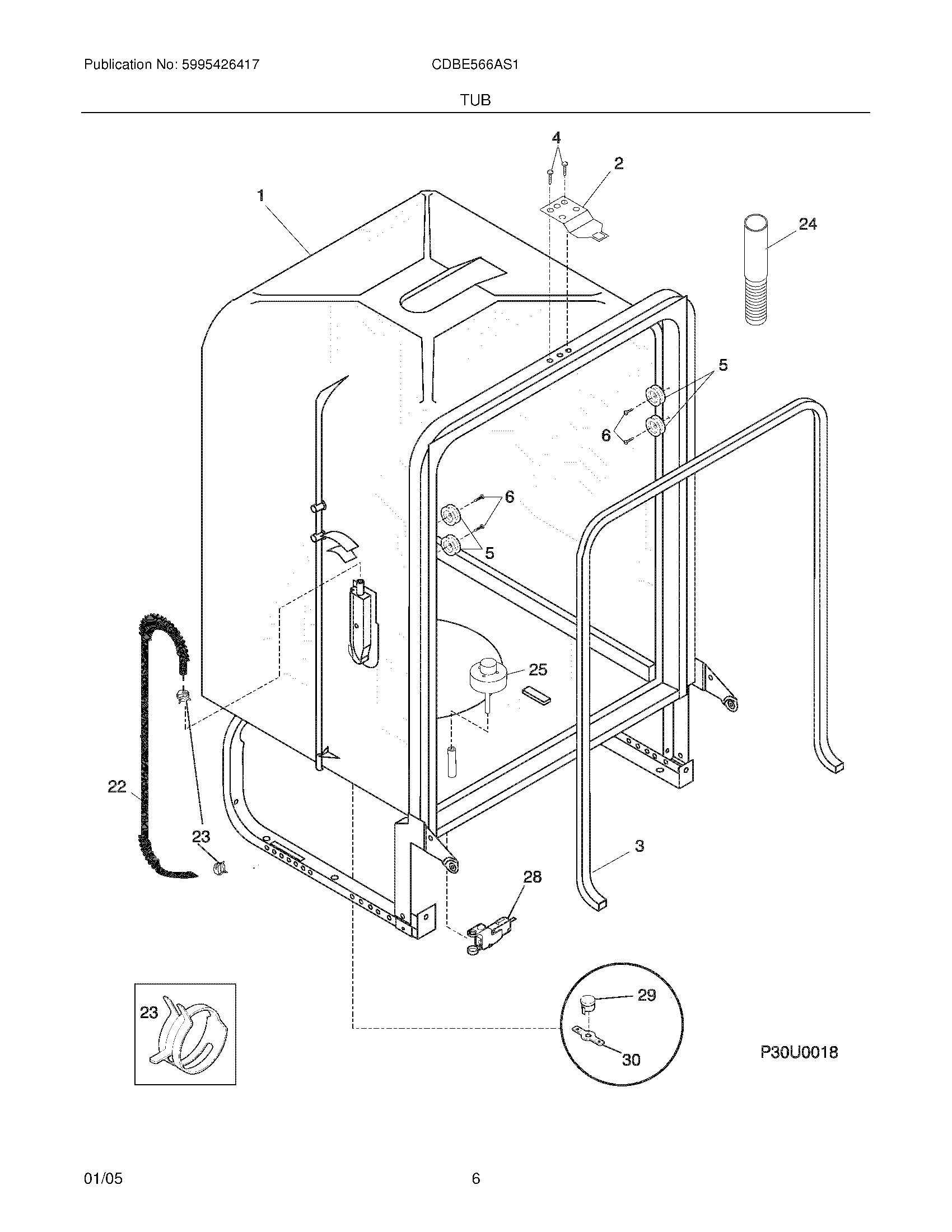

CDBE566AS1 07 – TUB

Products

Position	Product
NI	WCI 5300807270
NI	808690701 Frigidaire Dishwasher Screw
NI	154297701 Frigidaire Dishwasher Screw
NI	154641601 Frigidaire Dishwasher Insulation
1	WCI 154209301
2	154662601 Frigidaire Door Strike Latch
3	154827601 Frigidaire Dishwasher Tub Gasket
4	WCI 154200602
5	5304507405 Frigidaire Dishwasher Gray Tub Dishrack Roller
6	5303943103 Frigidaire Dishwasher P-1 Screw Kit (8 Each Wash/Screw)
22	5304523457 Frigidaire Inlet Hose
23	CLAMP, HOSE
24	807117001 Frigidaire Dishwasher Drain Hose
25	5304506520 Frigidaire Dishwasher Float Assembly
28	FLOAT SWITCH ASSY
29	154290204 Frigidaire Dishwasher Thermostat
30	154241101 Frigidaire Dishwasher Retainer
