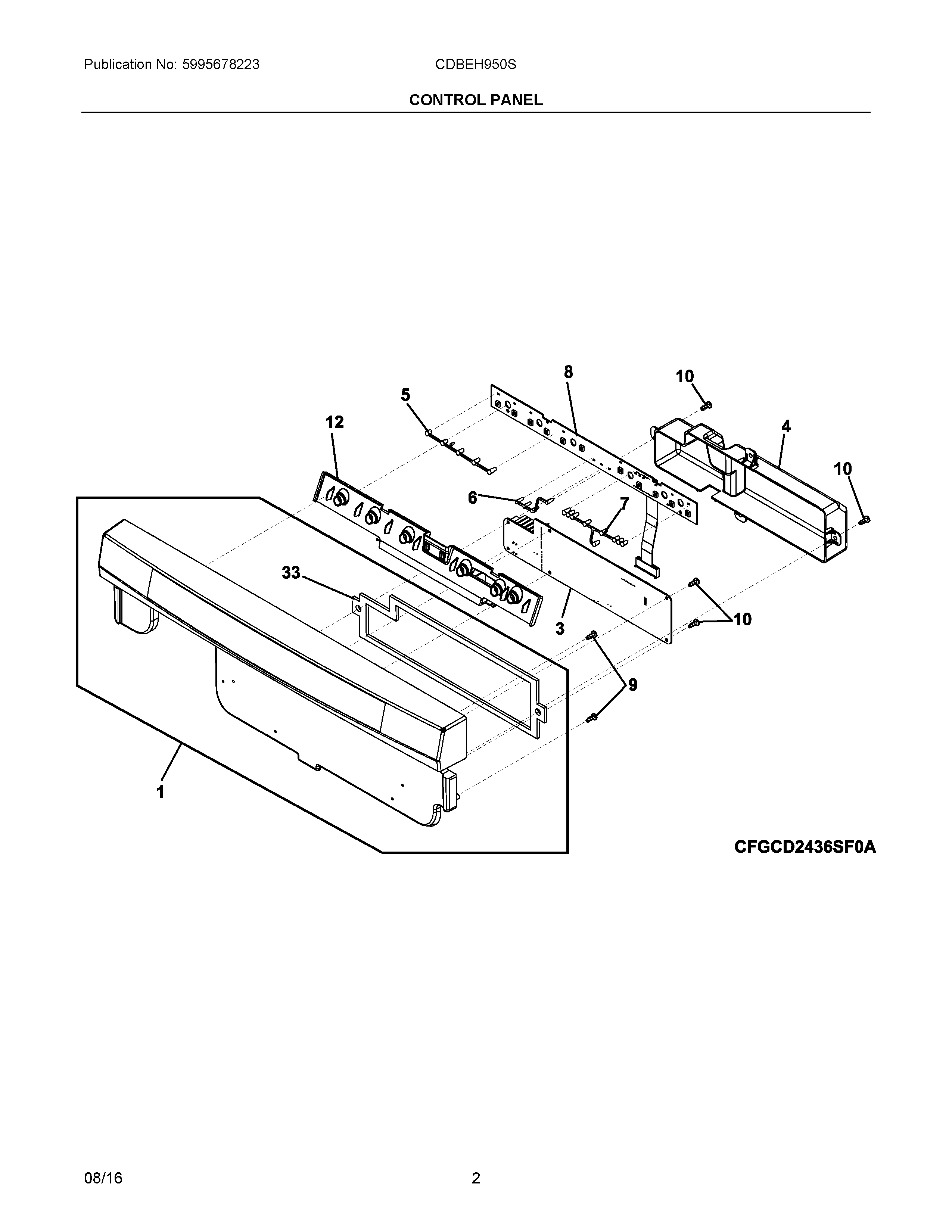

CDBEH950SB0A 02 – CONTROL PANEL

CDBEH950SB0A 02 – CONTROL PANEL

Written by

in

CDBEH950SB0A 02 – CONTROL PANEL

Products

PositionProduct
NIA5304506783 Frigidaire Screw
NIENERGY GUIDE
NI5304506794 Frigidaire Dishwasher Harness
1CONSOLE ASSEMBLY, W/OVERLAY, BLACK, AND GASKET
3807128502 Frigidaire Dishwasher Control Board
45304517614 Frigidaire Dishwasher Cover Assembly
55304506777 Frigidaire Dishwasher Light Guide
65304506782 Frigidaire Light Guide
75304506781 Frigidaire Dishwasher Light Guide
85304506807 Frigidaire Dishwasher Board
9154783101 Frigidaire Dishwasher Screw
10154294701 Frigidaire Dishwasher Screw
125304506776 Frigidaire Dishwasher Handle
33154478901 Frigidaire Dishwasher Gasket
