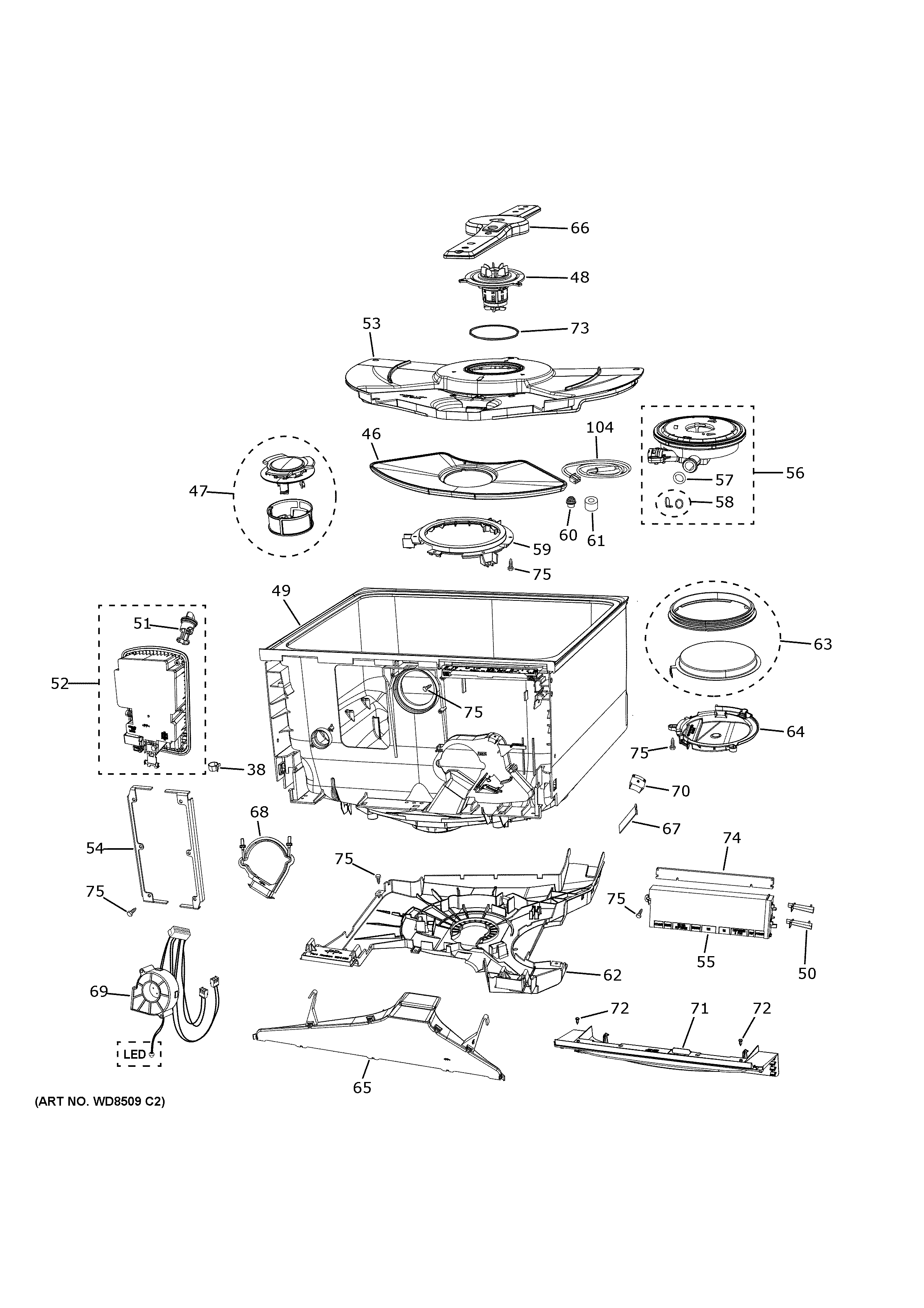

CDD420P4T0W2 TUB & MOTOR

Products

Position	Product
38	HOSE CLAMP
46	COARSE FILTER
47	WD22X30902 GE Fine Filter
48	WD12X30912 GE Motor and Pump Rotor
49	LOWER DRAWER TUB
49	UPPER DRAWER TUB
50	WD01X30911 GE Wash Control Module Light Pipe
51	RINSE AID CAP
52	DETERGENT DISPENSER MODULE
53	WD19X31779 GE Sump Overmold
54	DETERGENT DISPENSER MODULE BRACKET
55	WD21X31483 GE Washer Control Module
56	WD19X30900 GE Drain and Wash Motor
57	O RING
58	FLAP VALVE AND O RING KIT
59	MOTOR LOCKING RING
60	THERMISTOR GROMMET
61	THERMISTOR SPACER
62	WD31X30905 GE Tub Base Cover
63	WD05X31478 GE Heater Element and Seal
64	HEATER COVER KIT
65	WD30X31184 GE Exit Duct
66	WD22X30919 GE Dishwasher Spray Arm
67	FLAP VALVE FAN HOUSING
68	DRYER FAN GASKET
69	WD21X31484 GE Dryer Fan Dispenser
70	RETAINER FLAP FAN HOUSING
71	WD31X30916 GE Cover
72	WD02X30917 GE Rivets Kit 2-Pack
73	WD08X30915 GE Motor And Pump Rotor O Ring
74	WD21X30918 GE UI Board
75	SCREW M3.5X14 PANTX K35 – 10 PACK
104	THERMISTOR WITH HARNESS
