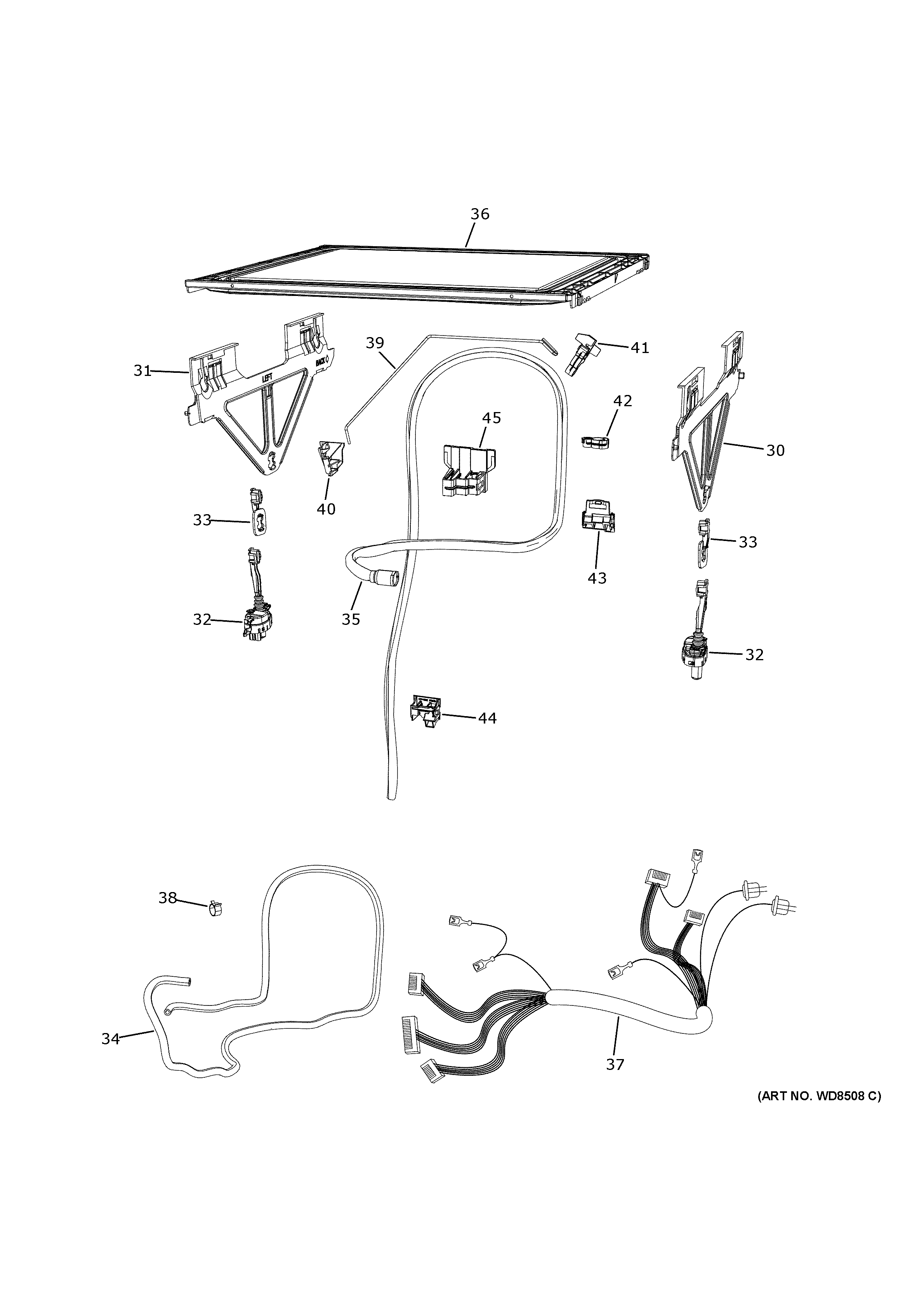

CDD420P4T1W2 LID LINK & COMPONENTS

Products

Position	Product
30	RH LID YOKE
31	WD12X30880 GE Left Lid Yoke
32	WD16X30872 GE Lid Actuators Right and Left
33	WD12X30870 GE Dishwasher Left and Right Lid Yoke Adapters
34	WD24X30865 GE Dishwasher Lower Drawer Fill Hose
34	WD24X30866 GE Dishwasher Upper Drawer Fill Hose
35	WD24X30867 GE Drain Hose Kit
36	WD31X30878 GE Dishwasher Lid Assembly
37	WD21X31482 GE Dishwasher Upper Drawer Harness
37	WD21X31480 GE Lower Drawer Harness
38	HOSE CLAMP
39	ROD SUPPORT
40	BRACKET SUPPORT
41	WD01X30876 GE Support Clip
42	SIDE CHASSIS CLIP
43	TUB CLIP
44	CHASSIS MOUNT
45	WD01X31182 GE Top Mount
