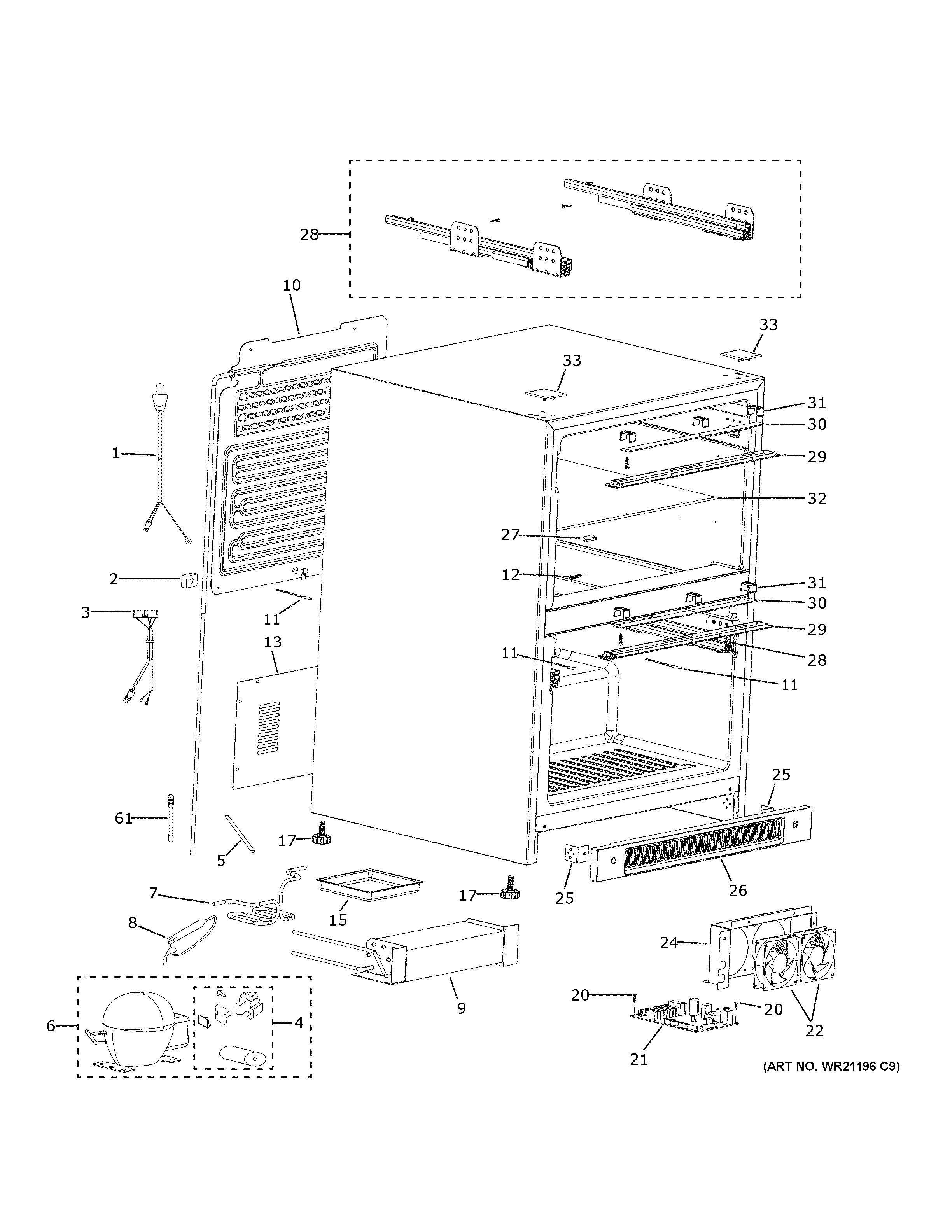

CDE06RP3NCD1 CABINET

Products

Position	Product
1	POWER CORD
2	EVAPORATOR SUPPORT
3	WR55X30056 GE Refrigerator Harness
4	WR87X33865 GE Compressor Electricals
5	SUCTION TUBE
6	WR87X32025 GE Compressor
7	CONDENSER JUMPER
8	WR87X30875 GE Refrigerator R600 Dryer with Red Cap
9	CONDENSER
10	WR87X30054 GE Evaporator Assembly
11	WR55X28281 GE Refrigerator Sensor Cable
12	WR01X28275 GE Refrigerator Sensor Clamp
13	REAR ACESS COVER
15	DRAIN TRAY
17	WR01X28279 GE Leveling Leg
20	SCREW
21	WR55X32026 GE Refrigerator Main Control Board
22	WR60X30052 GE Refrigerator Condenser Fan
24	CONDENSER FAN BRACKET
25	WR01X28277 GE Toe Kick Bracket
26	WR74X28252 GE Toe Kick
27	WR01X30110 GE Refrigerator Reed Switch and Magnet
28	WR72X28250 GE Refrigerator Slide Frame
29	WR13X28262 GE Bulb Cover
30	WR55X28260 GE Refrigerator LED Light Assembly
31	LED LIGHT CLIP
32	DIVIDER BOARD
33	TOP SCREW HOLE COVER
61	WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
