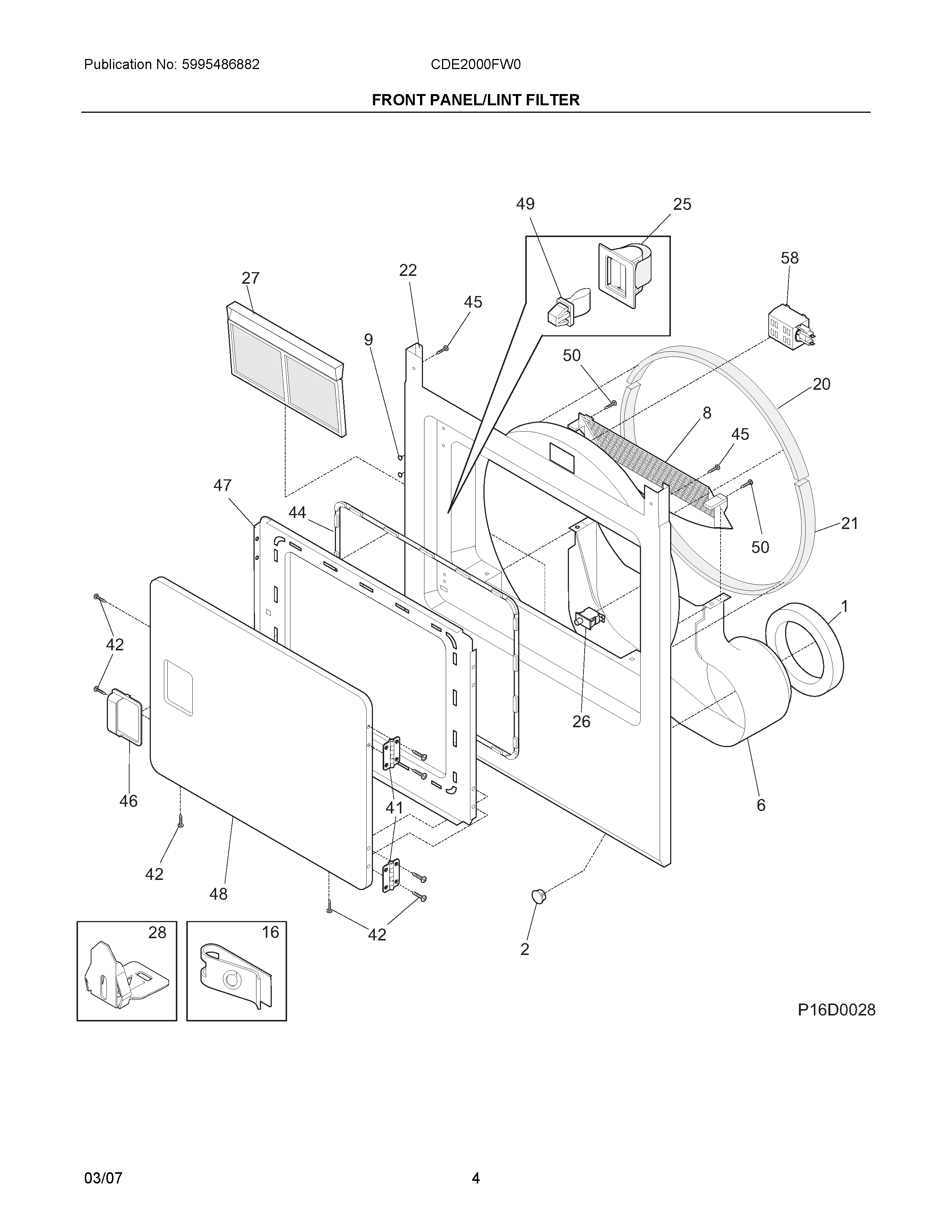

CDE2000FW0 03 – FRONT PANEL/LINT FILTER

Products

Position	Product
NIA	5308027429 Frigidaire Dryer High Temperature Adhesive
NIA	WCI 131657500
NIA	WCI 131474700
NIA	131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
1	134417000 Frigidaire Seal
2	131397000 Frigidaire Plug
6	WCI 131621900
8	ASMY-MOIST SENSOR/HARN STACK
9	131633200 Frigidaire Plug
16	WCI 134440100
20	134440200 Frigidaire Seal Felt Drum
21	5303937183 Frigidaire Dryer Lower Front Felt Seal
22	PANEL-FRONT STACK W/LITE
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	134813601 Frigidaire Dryer Door Switch 3-Wire
27	131450300 Frigidaire Dryer Lint Screen Filter
28	WCI 134440000
41	134222900 Frigidaire Dryer Door Hinge
42	134156200 Frigidaire Screw
44	137551901 Frigidaire Gasket
45	137361500 Frigidaire Screw 8-18X0.711 Co
46	131644700 Frigidaire Dryer Door Handle (White)
47	WCI 131844104
48	DOOR-OUTER, WHITE
49	5303207102 Frigidaire Door Strike
50	131302800 Frigidaire Drum Vane Screw
