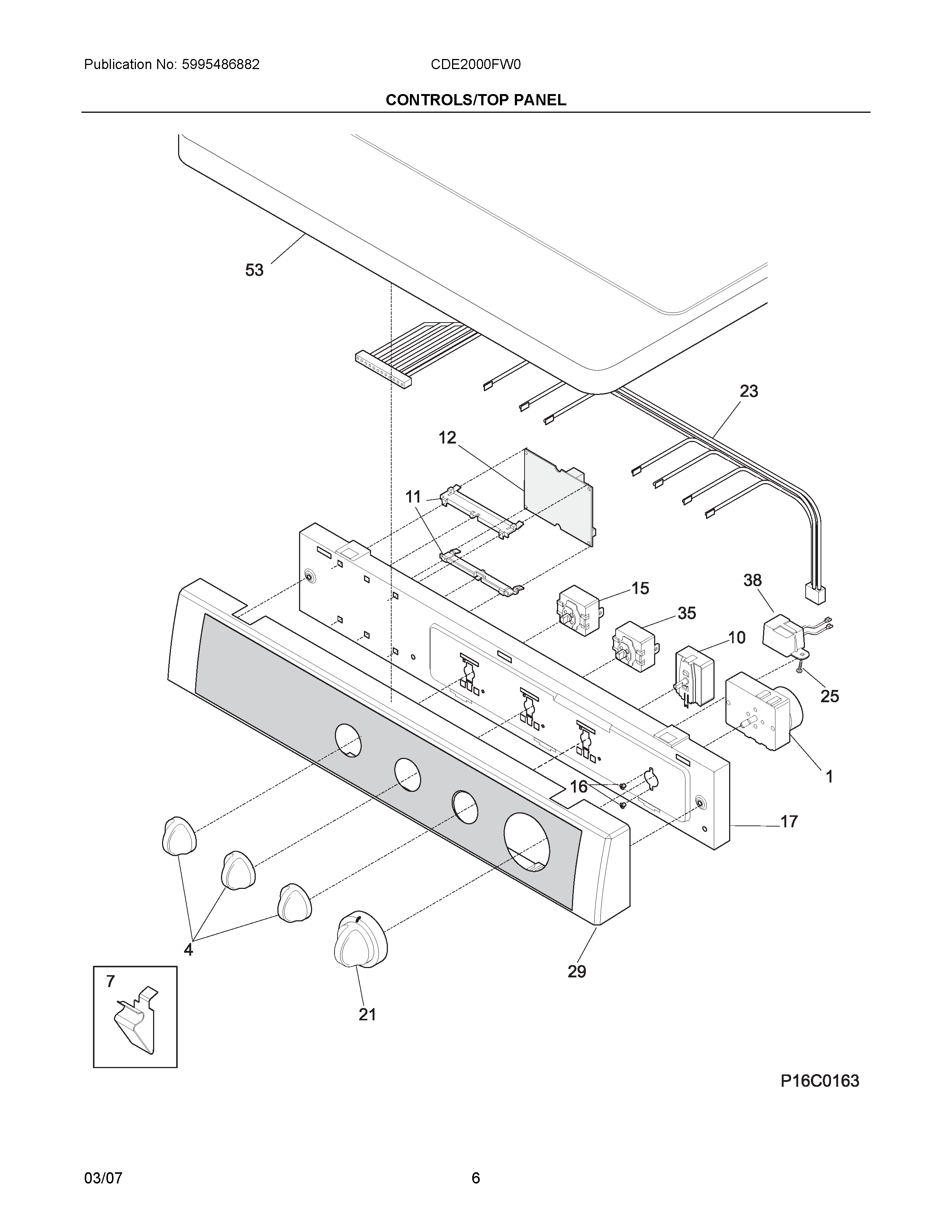

CDE2000FW0 04 – CONTROLS/TOP PANEL

CDE2000FW0 04 – CONTROLS/TOP PANEL

Written by

in

CDE2000FW0 04 – CONTROLS/TOP PANEL

Products

PositionProduct
NIAWIRING HARNESS, MAIN
NIINSTRUCTIONS,INSTALLATION
NI134101400 Frigidaire Dryer Kit Terminal Block
1131789200 Frigidaire L-Dryer P-1 Timer
4131965300 Frigidaire Rotary Dryer White Control Knob
73205821 Frigidaire Clip
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
11BRACKET-CONTROL BOARD
12WCI 134216300
15SWITCH, TEMP CONTROL, 3 POSN ROTARY
16218359202 Frigidaire Refrigerator Screw
17BRKT-CONT MTG-STACK DRYER
21DRYER TIMER KNOB WHITE
23WIRING HARNESS, CONTROL
255303015671 Frigidaire Bracket Termination Screw
29Console,frame ,w/trim
35Switch,2 position
38WCI 5303210285
53PANEL-TOP WHITE
