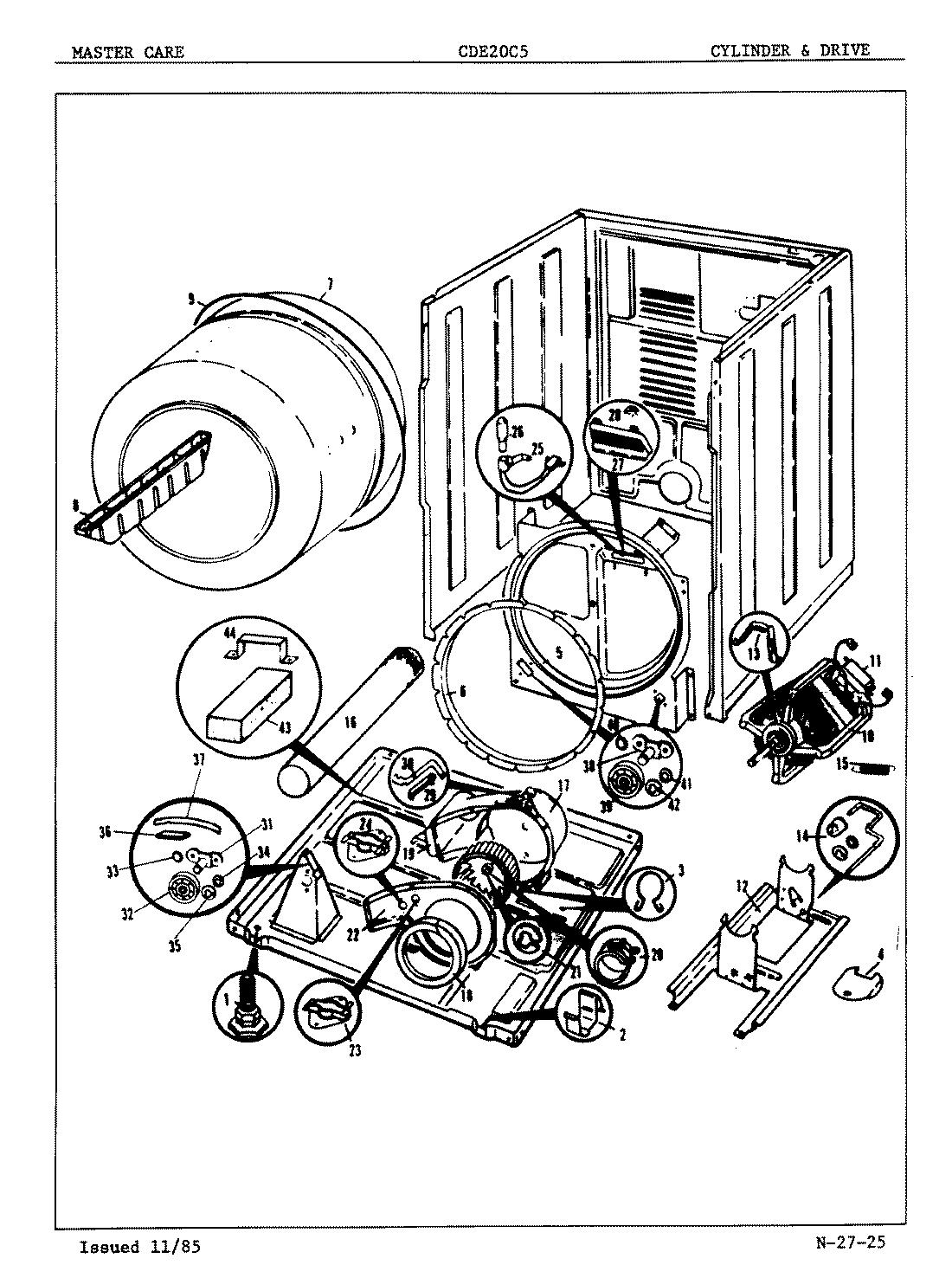

CDE20C5 02 – CYLINDER & DRIVE (ORIG.-REV. A-C)

Products

Position	Product
1	W11117769 Whirlpool Refrigerator Leveler
2	WP53-0120 Whirlpool Clip
3	MAY 25-7027
4	MAY 25-7741
4	MAY 53-0153
5	MAY 53-0691
5	MAY 25-7733
6	MAY 53-0218
7	MAY 53-0178
8	MAY 25-7759
8	MAY 53-0117
9	MAY LA-1004
9	MAY 53-0186
10	MAY 53-0189
11	MAY 53-0332
11	MAY 73-0467
12	MAY 53-0105
12	MAY 25-7811
13	WP660658 Whirlpool Clamp
14	MAY 53-0199
15	MAY 53-0207
16	MAY 53-0134
17	MAY 53-0157
18	MAY 53-0205
18	MAY 53-0206
18	12001324 Whirlpool Collector Duct
19	MAY 53-0106
20	MAY 25-7823
21	MAY 25-7812
22	MAY 25-7807
22	MAY 53-0103
23	MAY 53-0263
24	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
24	MAY 53-0262
25	MAY 53-0152
26	MAY 25-3457
26	MAY 53-0177
27	MAY 53-0174
28	WP3195558 Whirlpool Nut
28	LA-1006 Whirlpool Dryer Right Hand Glide Kit
29	MAY 53-0182
30	MAY 53-0183
31	MAY 53-0198
32	12002126 Whirlpool Refrigerator Reinforcement Brace Glide
36	MAY 53-0184
37	MAY 53-0185
37	MAY LA-1008
38	WP53-0197 Whirlpool Support Bracket
38	WP3351614 Whirlpool Screw
39	MAY 53-0163
40	MAY 25-7813
41	MAY 25-7814
42	MAY 25-7574
