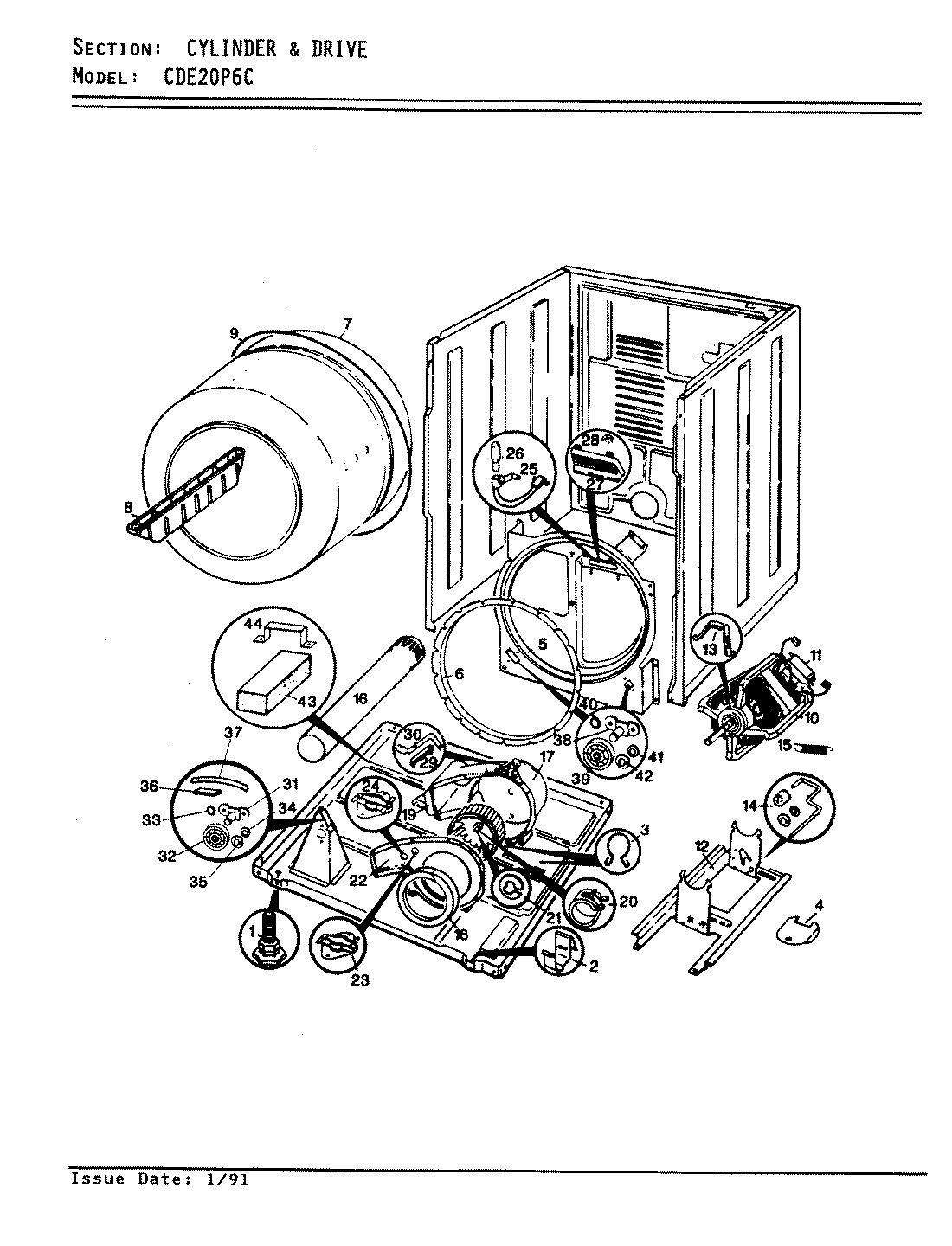

CDE20P6AC 02 – CYLINDER & DRIVE

Products

Position	Product
1	W11117769 Whirlpool Refrigerator Leveler
2	WP53-0120 Whirlpool Clip
3	MAY 25-7027
4	MAY 53-0153
4	MAY 25-7741
5	MAY 53-1709
5	MAY 25-7733
6	MAY 53-0282
7	MAY 53-1250
8	MAY 25-7759
8	MAY 53-1249
9	MAY LA-1004
9	MAY 53-1080
10	MAY 53-2275
10	MAY 53-1041
11	MAY 53-0693
12	MAY 53-0852
12	MAY 53-1932
12	MAY 25-7811
13	WP660658 Whirlpool Clamp
13	MAY 25-7674
14	MAY 53-0764
14	MAY 25-7957
14	WP53-2287 Whirlpool Idler Assembly
14	MAY 25-7815
14	MAY 53-1628
15	MAY 53-1648
15	MAY 53-0207
15	31001465 Whirlpool Idler Spring
16	MAY 53-0134
17	MAY 53-1801
17	MAY 53-0774
18	MAY 53-1103
18	MAY 53-0705
19	MAY 53-0106
20	MAY 25-7823
21	MAY 25-7855
22	MAY 53-1024
22	MAY 53-1933
22	MAY 25-7807
22	MAY 53-1026
23	WP53-1107 Whirlpool Thermostat
24	MAY 53-0170
24	MAY 25-2134
26	MAY 25-3457
28	LA-1006 Whirlpool Dryer Right Hand Glide Kit
28	WP3195558 Whirlpool Nut
29	MAY 53-0182
30	MAY 53-0183
31	MAY 53-0198
32	12002126 Whirlpool Refrigerator Reinforcement Brace Glide
36	MAY 53-0723
37	MAY 53-0185
37	MAY LA-1008
38	WP53-0197 Whirlpool Support Bracket
38	WP3351614 Whirlpool Screw
39	MAY 53-0642
40	MAY 25-7813
41	MAY 25-7814
42	WP25-7854 Whirlpool Clip
44	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
