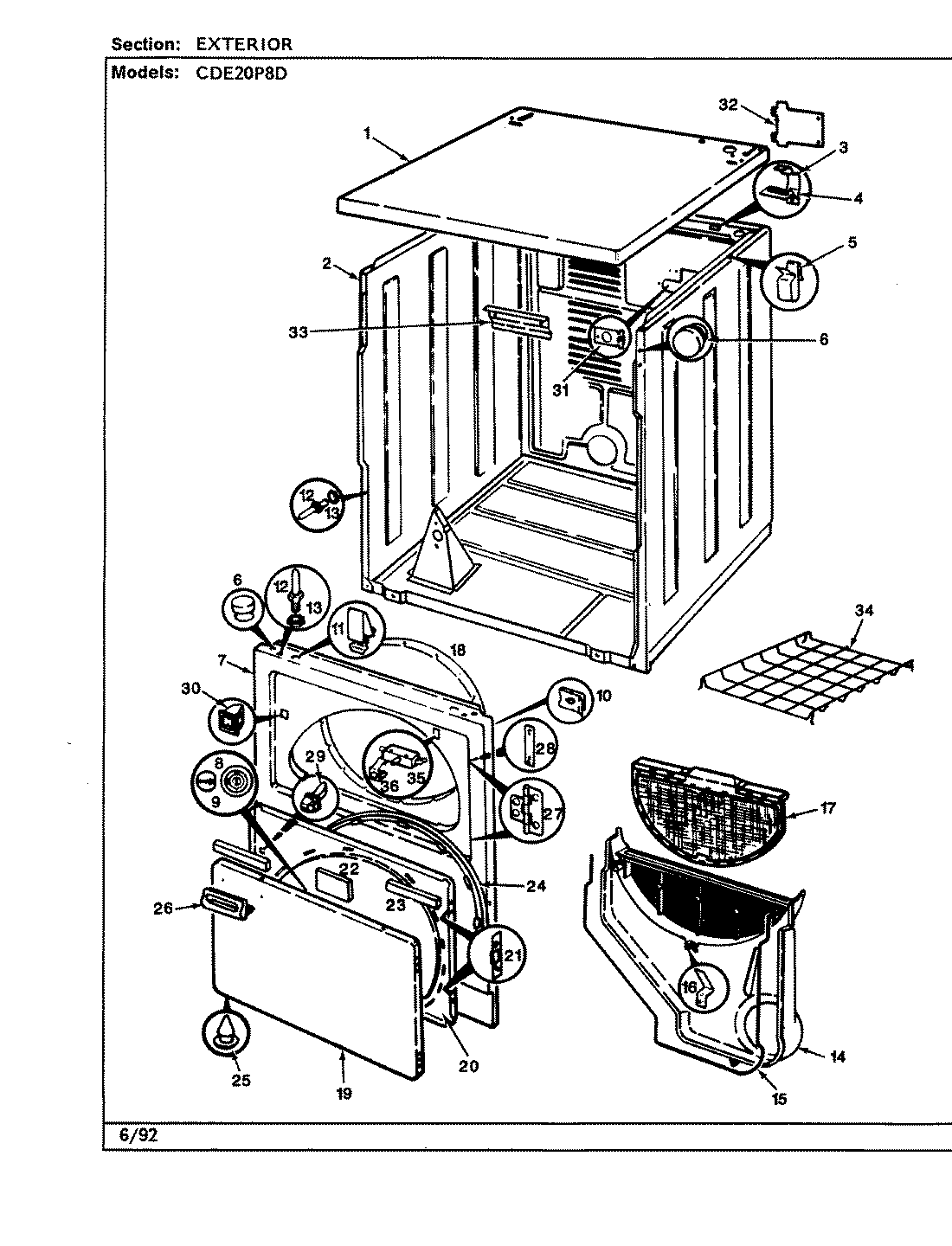

CDE20P8D 03 – EXTERIOR (CDE20P8D)(ORIG. REV. B)
Written by
in
CDE20P8D 03 – EXTERIOR (CDE20P8D)(ORIG. REV. B)
Products
Position
Product
1
MAY 53-1711
2
MAY 53-1644
3
MAY 63-5712
4
WP90767 Whirlpool Screw
4
MAY 33-0930
5
MAY 25-3034
6
MAY 33-2653
7
MAY 53-0726
8
MAY 53-0155
9
MAY 53-0156
10
MAY 25-7817
10
WP489478 Whirlpool Refrigerator Screw
11
WP25-7220 Whirlpool Cabinet Clip
12
MAY 63-6148
13
MAY 25-0224
13
MAY 53-0200
14
MAY 53-1299
15
MAY 53-0204
16
MAY 53-0123
17
WP53-0918 Whirlpool Lint Filter
18
MAY 53-0282
19
MAY 53-0154
20
MAY 53-0912
21
MAY 53-0119
22
MAY 53-0251
23
MAY 53-0252
24
WP31001529 Whirlpool Door Seal
24
MAY 25-7770
25
MAY 25-3534
26
MAY 53-0928
26
MAY 25-7810
27
MAY 53-0122
28
W10756178 Whirlpool Screw
28
LA-1003 Whirlpool Dryer Door Catch and Metal Strike
28
MAY 53-0121
29
MAY 73-0033
30
MAY 53-0882
31
MAY 53-0135
31
WP489483 Whirlpool Screw
32
MAY 53-0136
33
MAY 53-0133
33
MAY 25-3457
34
MAY LA-1005
34
MAY 53-0772
35
MAY 53-0148
36
MAY 63-5990
←
