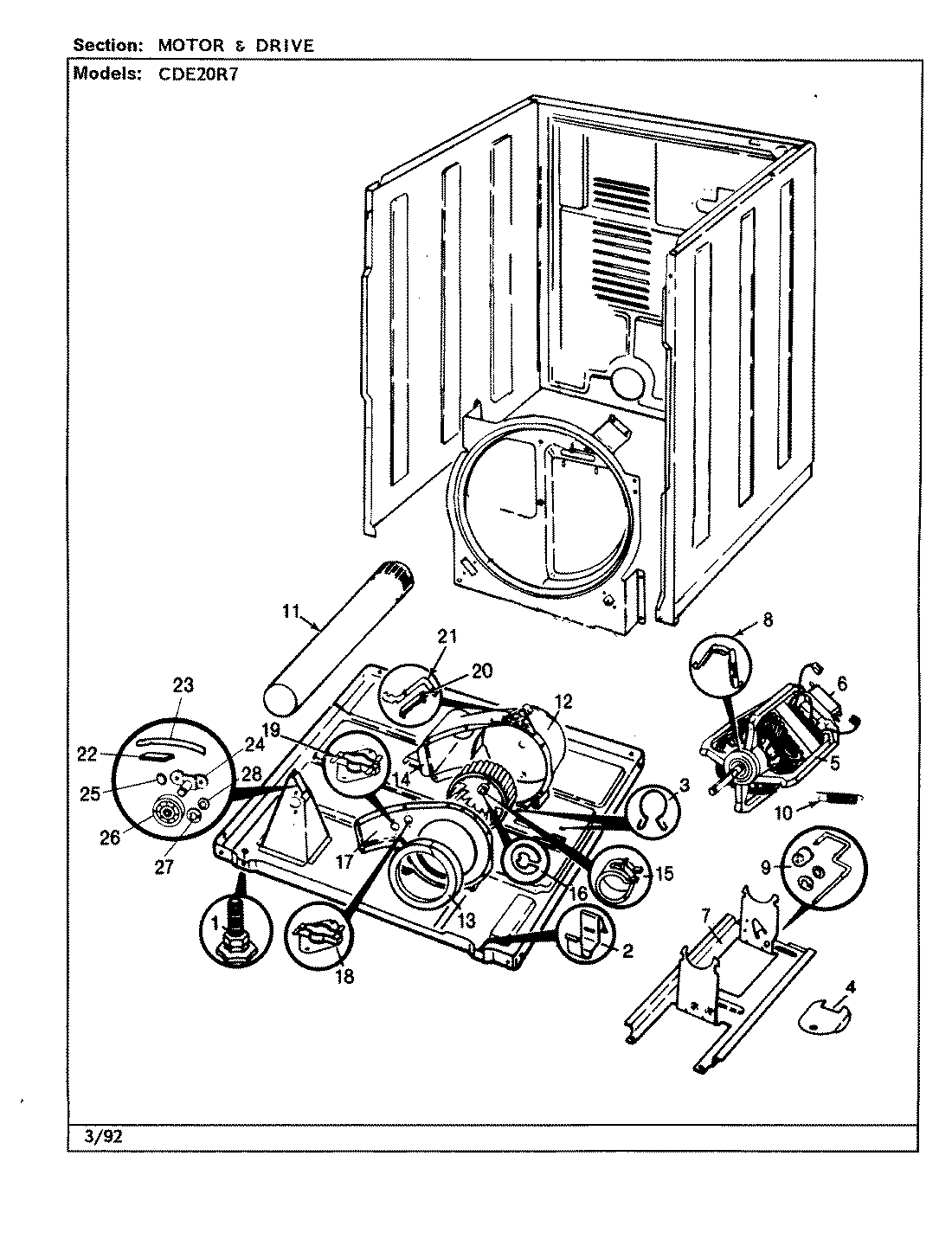

CDE20R7W 05 – MOTOR & DRIVE (REV. A-B)

CDE20R7W 05 – MOTOR & DRIVE (REV. A-B)

Written by

in

CDE20R7W 05 – MOTOR & DRIVE (REV. A-B)

Products

PositionProduct
1W11117769 Whirlpool Refrigerator Leveler
2WP53-0120 Whirlpool Clip
3MAY 25-7027
4MAY 25-7741
4MAY 53-0153
5MAY 53-1041
5MAY 53-2275
6MAY 53-0693
7MAY 53-0852
7MAY 53-1932
7MAY 25-7811
8MAY 25-7674
8WP660658 Whirlpool Clamp
9MAY 53-1650
9MAY 25-7815
9MAY 25-7957
9MAY 53-1628
9WP53-2287 Whirlpool Idler Assembly
1031001465 Whirlpool Idler Spring
10MAY 53-1648
11MAY 53-0134
12MAY 53-1801
12MAY 53-0774
1312001324 Whirlpool Collector Duct
14MAY 53-0106
15MAY 25-7823
16MAY 25-7855
17MAY 53-1934
17MAY 25-7807
17MAY 53-1023
17MAY 53-1026
18WP53-1107 Whirlpool Thermostat
19MAY 25-2134
20MAY 53-0182
21MAY 53-0183
23MAY LA-1008
23NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
24MAY 53-0198
25MAY 25-7813
26MAY 53-0642
27WP25-7854 Whirlpool Clip
28MAY 25-7814
