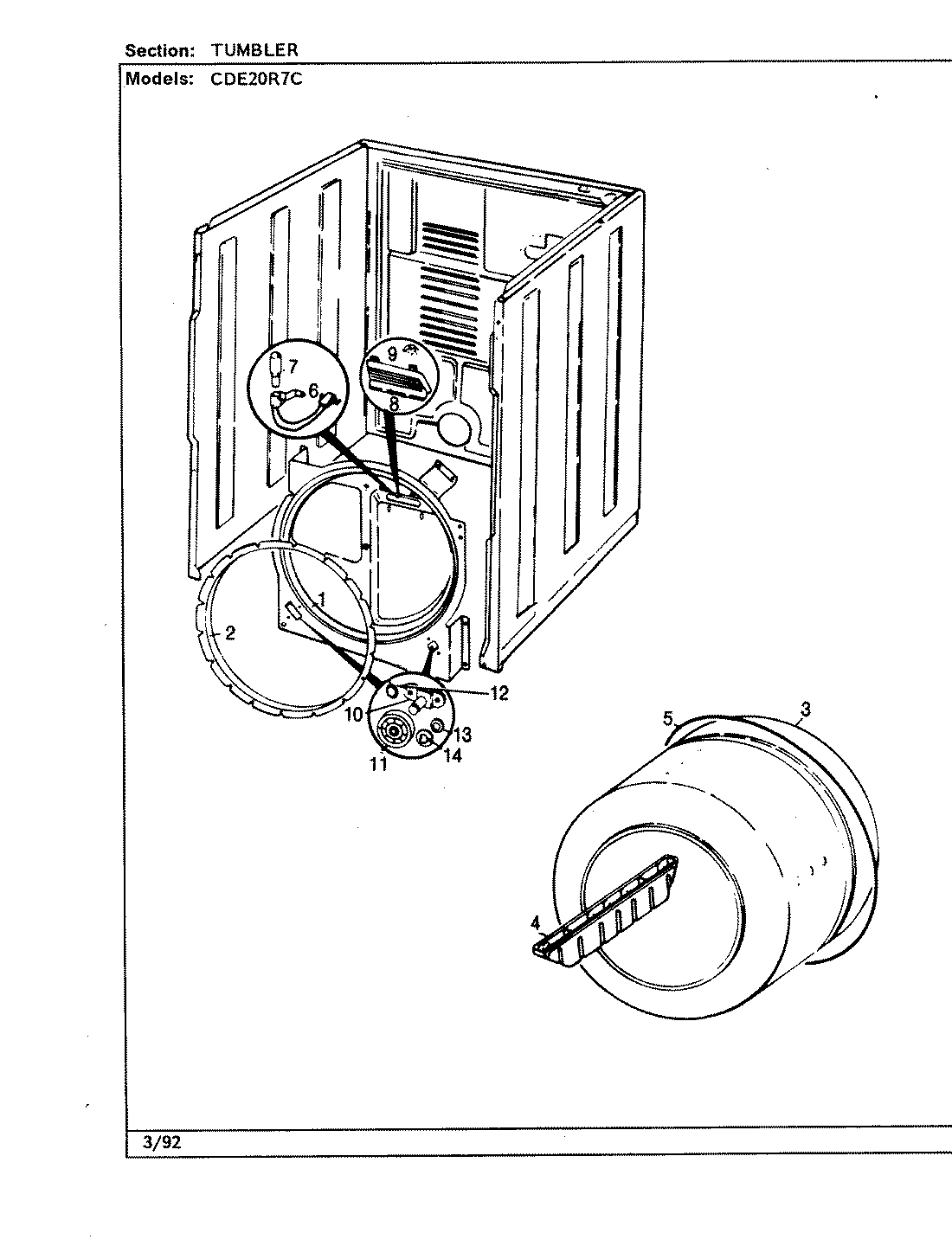

CDE20R7WC 06 – TUMBLER (ORIG. REV. B)

Written by

Products

Position	Product
1	MAY 53-1708
2	MAY 53-0282
3	MAY 53-1250
4	MAY 25-7759
4	MAY 53-0117
5	MAY 53-1512
9	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
9	LA-1006 Whirlpool Dryer Right Hand Glide Kit
10	WP53-0197 Whirlpool Support Bracket
10	WP3351614 Whirlpool Screw
11	MAY 53-0642
12	MAY 25-7813
13	MAY 25-7814
14	MAY LA-1008
14	WP25-7854 Whirlpool Clip
