CDE22B7VC 05 – MOTOR & DRIVE (CDE22B7VC)

CDE22B7VC 05 – MOTOR & DRIVE (CDE22B7VC)

Written by

in

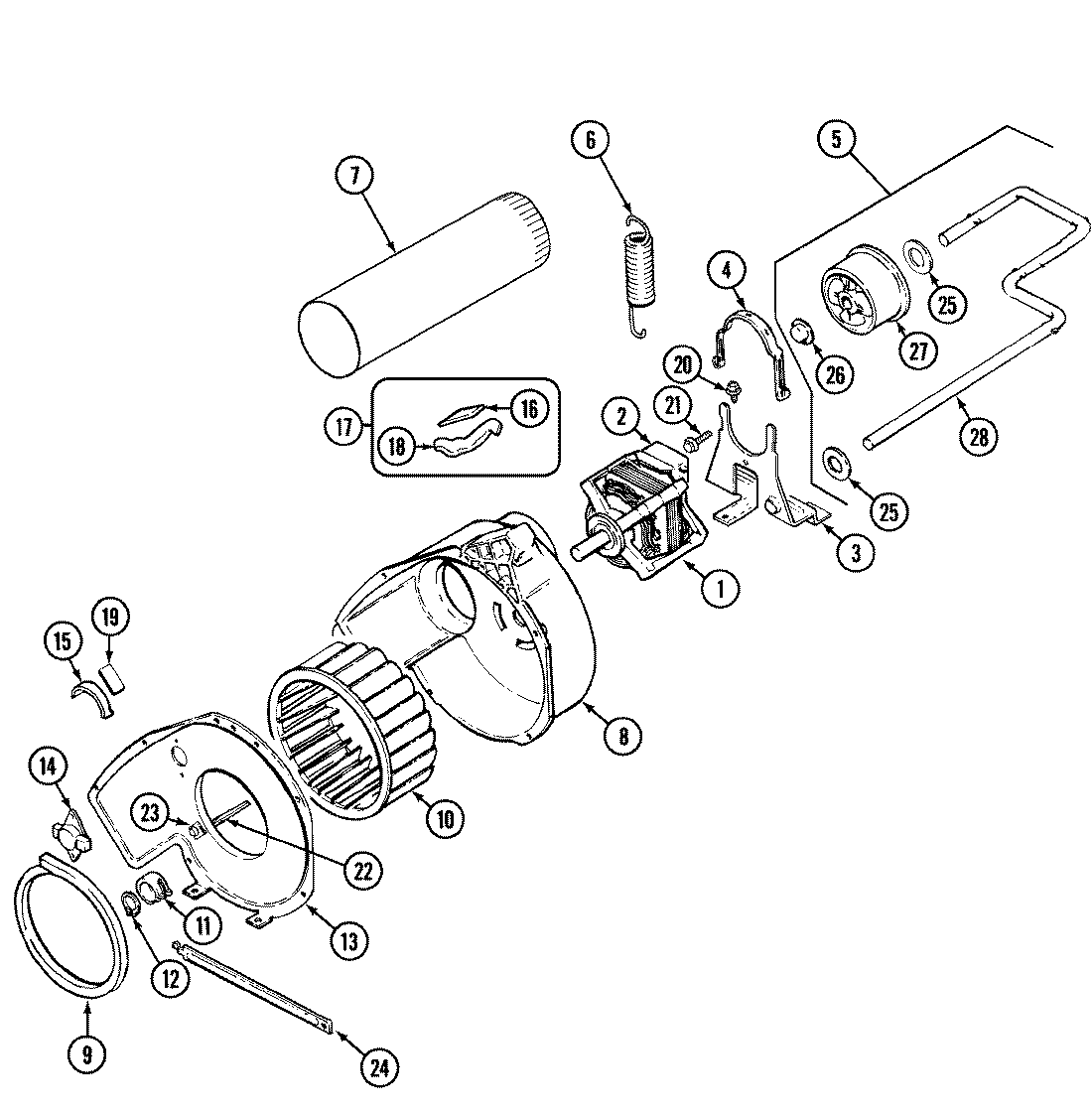

CDE22B7VC 05 – MOTOR & DRIVE (CDE22B7VC)

Products

PositionProduct
1W10410996 Whirlpool Dryer Drive Motor
2MAY 53-0693
3SCREW
3MAY 53-1932
4WP660658 Whirlpool Clamp
631001465 Whirlpool Idler Spring
7MAY 53-0134
8MAY 53-1801
912001324 Whirlpool Collector Duct
1031001043 Whirlpool Blower Wheel
11MAY 25-7823
12MAY 25-7855
13MAY 53-1933
13MAY 25-7435
13MAY 53-1934
14WP53-1107 Whirlpool Thermostat
14MAY 53-0170
14THERMOSTAT
14MAY 25-2134
15MAY 53-0185
16WP31001356 Whirlpool Glide Pad
17LA-1006 Whirlpool Dryer Right Hand Glide Kit
18MAY 53-0183
19MAY 53-1684
20MAY 25-7963
21MAY 25-7674
22MAY 53-1026
23MAY 25-3457
24MAY 53-1625
25MAY 25-7815
26MAY 25-7957
27MAY 53-1628
28WP53-2287 Whirlpool Idler Assembly
