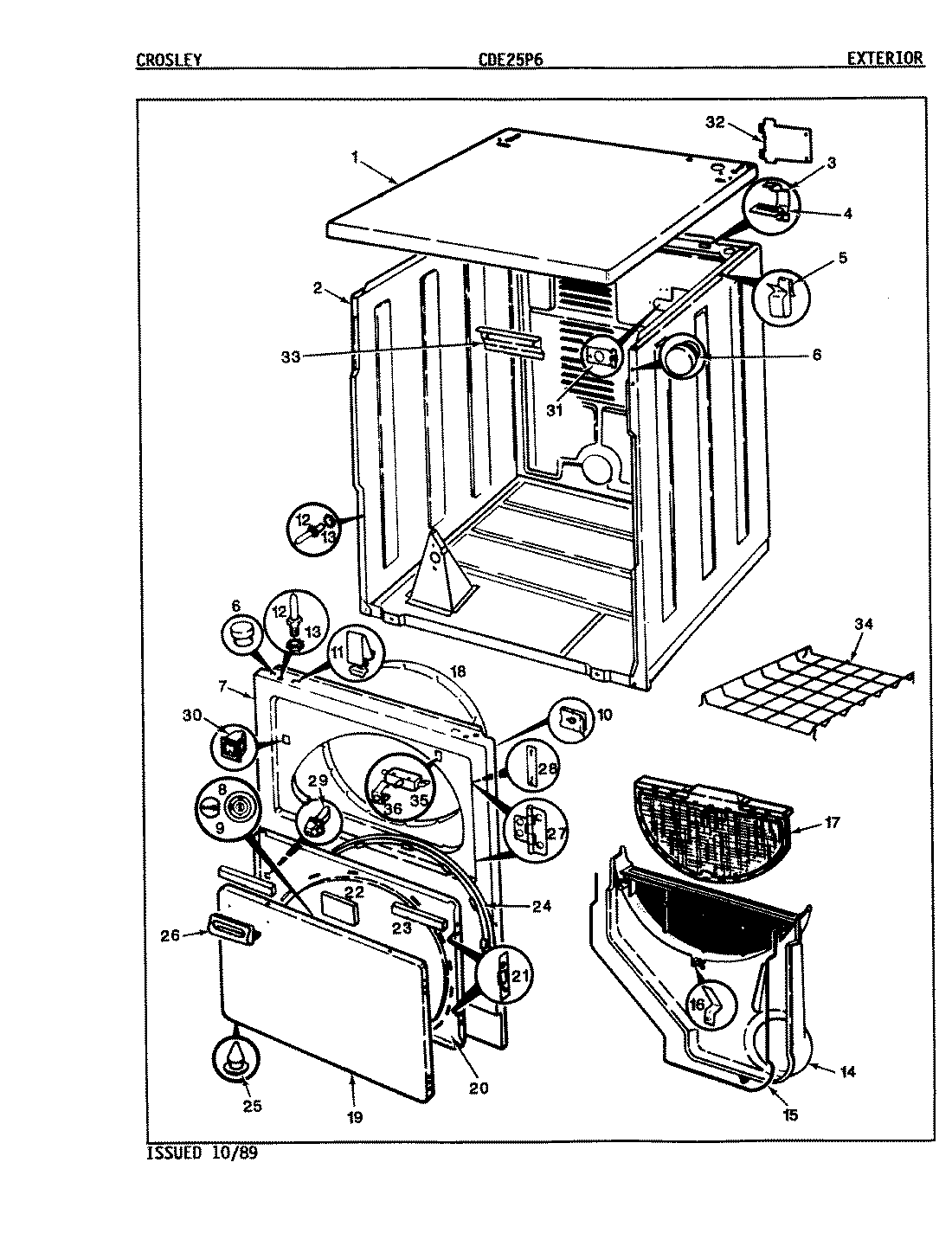

CDE25P6W 03 – EXTERIOR (ORIG. REV. A-C)

CDE25P6W 03 – EXTERIOR (ORIG. REV. A-C)

Written by

in

CDE25P6W 03 – EXTERIOR (ORIG. REV. A-C)

Products

PositionProduct
1MAY 53-0314
1MAY 53-1711
2MAY 53-0687
2MAY 53-1644
3MAY 63-5712
4MAY 33-0930
4WP90767 Whirlpool Screw
5MAY 25-3034
6MAY 33-2653
7MAY 53-0726
8MAY 53-0155
9MAY 53-0156
10MAY 25-7817
10WP489478 Whirlpool Refrigerator Screw
11WP25-7220 Whirlpool Cabinet Clip
12MAY 63-6148
13MAY 53-0200
13MAY 25-0224
14MAY 53-0917
15MAY 53-0204
16MAY 53-0123
17WP53-0918 Whirlpool Lint Filter
18MAY 53-0282
19MAY 53-0154
20MAY 53-0912
21MAY 53-0119
22MAY 53-0251
23MAY 53-0252
24MAY 25-7770
24MAY 53-0112
25MAY 25-3534
26MAY 25-7810
26MAY 53-0928
27MAY 53-0122
28W10756178 Whirlpool Screw
28MAY 53-0121
29MAY 73-0033
30LA-1003 Whirlpool Dryer Door Catch and Metal Strike
31WP489483 Whirlpool Screw
31MAY 53-0135
32MAY 25-7857
32MAY 53-0284
33MAY 53-0133
33MAY 25-3457
34NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
35MAY 53-0147
36MAY 63-5990
