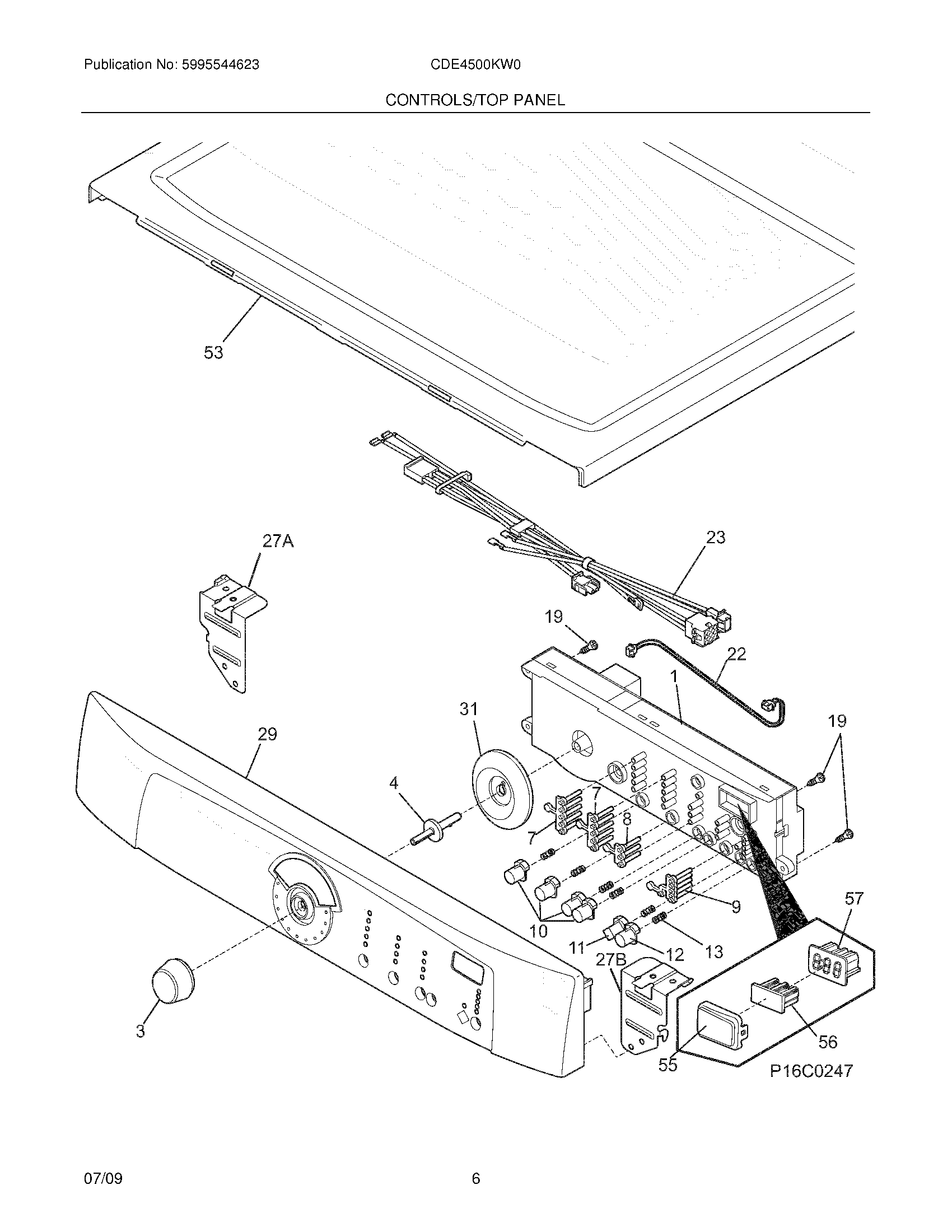

CDE4500KW0 07 – CONTROLS/TOP PANEL

Products

Position	Product
NI	137150200 Frigidaire Terminal
1	WCI 137009000
3	WCI 134471500
4	WCI 134347700
7	WCI 134429100
8	WCI 134429200
9	WCI 134429400
10	Push Button,No.10
11	WCI 134447201
12	WCI 134447301
13	WCI 134349400
19	134402900 Frigidaire Screw
22	WCI 134910200
23	WCI 137033500
27B	134711000 Frigidaire Bracket
27A	134710900 Frigidaire Bracket Assembly
29	WCI 137234100
31	WCI 134441400
53	137371700 Frigidaire Panel
55	WCI 134429000
56	WCI 134503400
57	WCI 134503300
