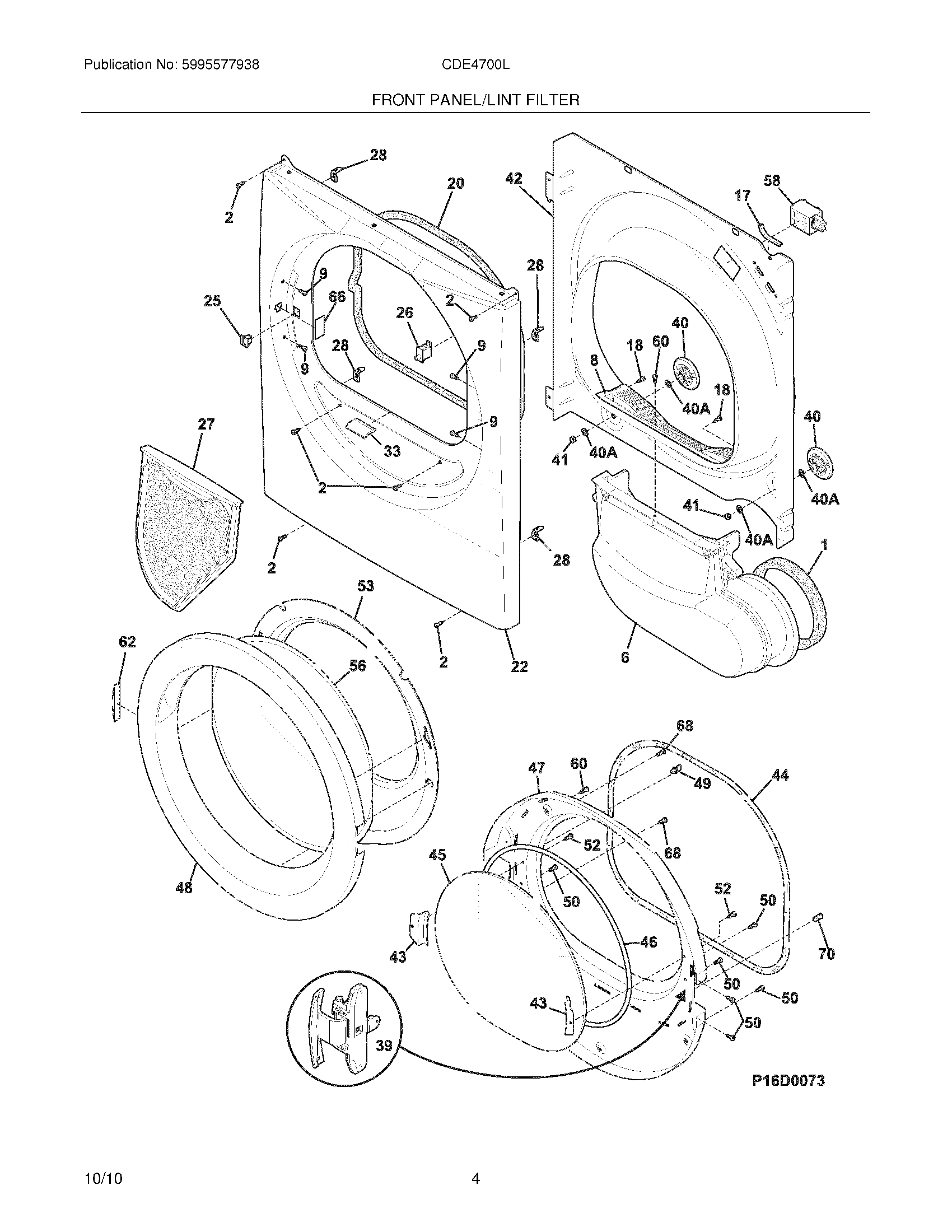

CDE4700LW0 05 – FRONT PANEL/LINT FILTER

Products

Position	Product
NI	5308027429 Frigidaire Dryer High Temperature Adhesive
NI	134716200 Frigidaire Retainer
NI	131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
NI	WCI 134554500
NI	WCI 134910300
1	WCI 137068200
6	WCI 134710705
8	137554110 Frigidaire Washer Cover
9	131633200 Frigidaire Plug
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
20	WCI 137116600
22	WCI 134696610
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	134813601 Frigidaire Dryer Door Switch 3-Wire
27	134701410 Frigidaire Dryer White Lint Filter
28	137034500 Frigidaire Clip
33	RAMP, DOOR
39	137105100 Frigidaire Dryer Hinge Door
40A	134716700 Frigidaire Washer
40	5304523155 Frigidaire Washer Kit
41	134716800 Frigidaire Nut
42	WCI 134696110
43	WCI 134559300
44	137553402 Frigidaire Gasket
45	WCI 134611800
46	134580300 Frigidaire Gasket
47	5304506377 Frigidaire Inner Door Panel
48	137577600 Frigidaire Panel
49	5303207102 Frigidaire Door Strike
50	131302800 Frigidaire Drum Vane Screw
52	131243700 Frigidaire Screw
56	137577700 Frigidaire Glass
60	134430300 Frigidaire Screw
62	WCI 134680700
66	137577200 Frigidaire T Plug
68	134742000 Frigidaire Plug
70	WCI 134417500
