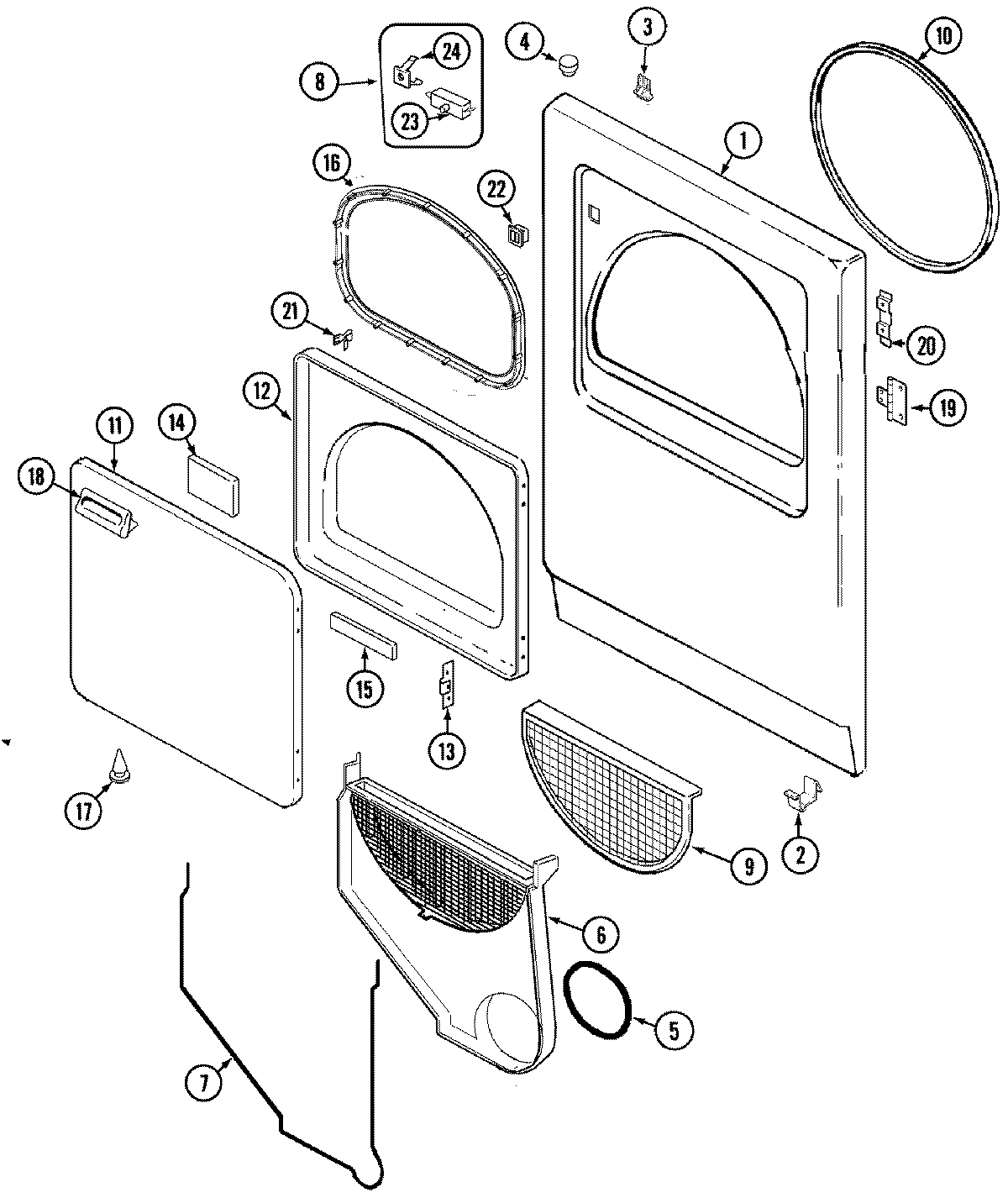

| 1 | MAY 31001480 |
| 2 | WP53-0120 Whirlpool Clip |
| 3 | MAY 31001526 |
| 4 | MAY 33-2653 |
| 5 | MAY 31001541 |
| 6 | 12001324 Whirlpool Collector Duct |
| 7 | MAY 53-0204 |
| 8 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 8 | MAY LA-1005 |
| 9 | WP53-0918 Whirlpool Lint Filter |
| 10 | WP31001637 Whirlpool Seal Assembly |
| 11 | WP3196557 Whirlpool Screw |
| 11 | MAY 31001478 |
| 12 | MAY 31001479 |
| 13 | MAY 53-0119 |
| 14 | MAY 53-1490 |
| 15 | MAY 53-1491 |
| 16 | WP31001529 Whirlpool Door Seal |
| 17 | MAY 25-7889 |
| 18 | MAY 31001482 |
| 18 | MAY 25-7810 |
| 19 | MAY 53-1492 |
| 19 | W10756178 Whirlpool Screw |
| 20 | MAY 53-0121 |
| 20 | MAY 31001786 |
| 22 | LA-1003 Whirlpool Dryer Door Catch and Metal Strike |
| 23 | MAY 31001732 |
| 23 | MAY 53-0148 |
| 24 | WP31001319 Whirlpool Clip |
| 24 | MAY 31001733 |
