CDE6500W 06 – MOTOR & DRIVE

CDE6500W 06 – MOTOR & DRIVE

Written by

in

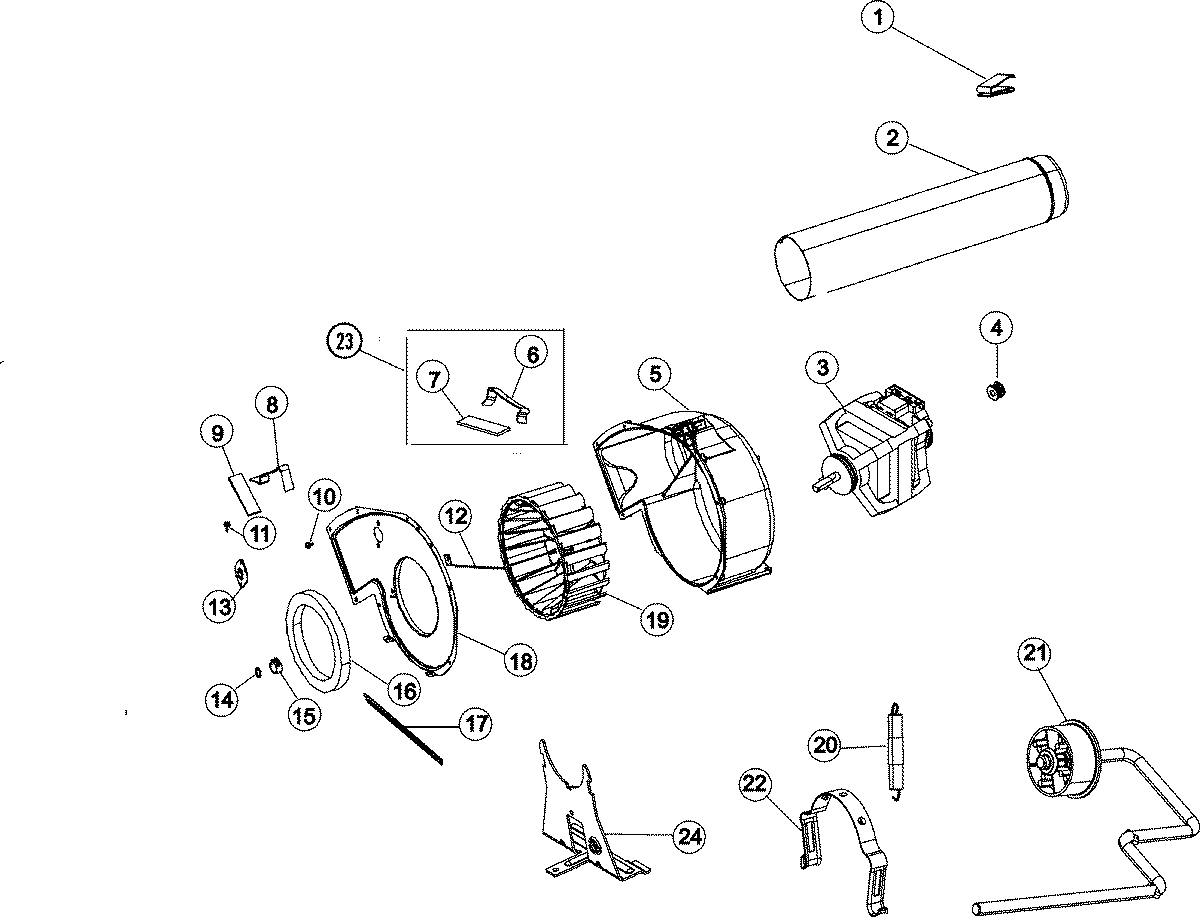

CDE6500W 06 – MOTOR & DRIVE

Products

PositionProduct
1MAY 31001572
2MAY 53-0134
3W10410996 Whirlpool Dryer Drive Motor
4WP31001535 Whirlpool Pulley Motor
5MAY 53-1801
6WP31001470 Whirlpool Glide Assembly
8WP31001469 Whirlpool Glide Assembly
9WP31001356 Whirlpool Glide Pad
10MAY 31001267
11MAY 25-7890
12MAY 53-1026
13MAY 31001088
13THERMOSTAT
14MAY 25-7855
15MAY 25-7823
16MAY 31001541
17MAY 53-1625
18MAY 53-1934
19WHEEL
2031001465 Whirlpool Idler Spring
21MAY 31001710
22WP660658 Whirlpool Clamp
23LA-1006 Whirlpool Dryer Right Hand Glide Kit
24MAY 31001570
