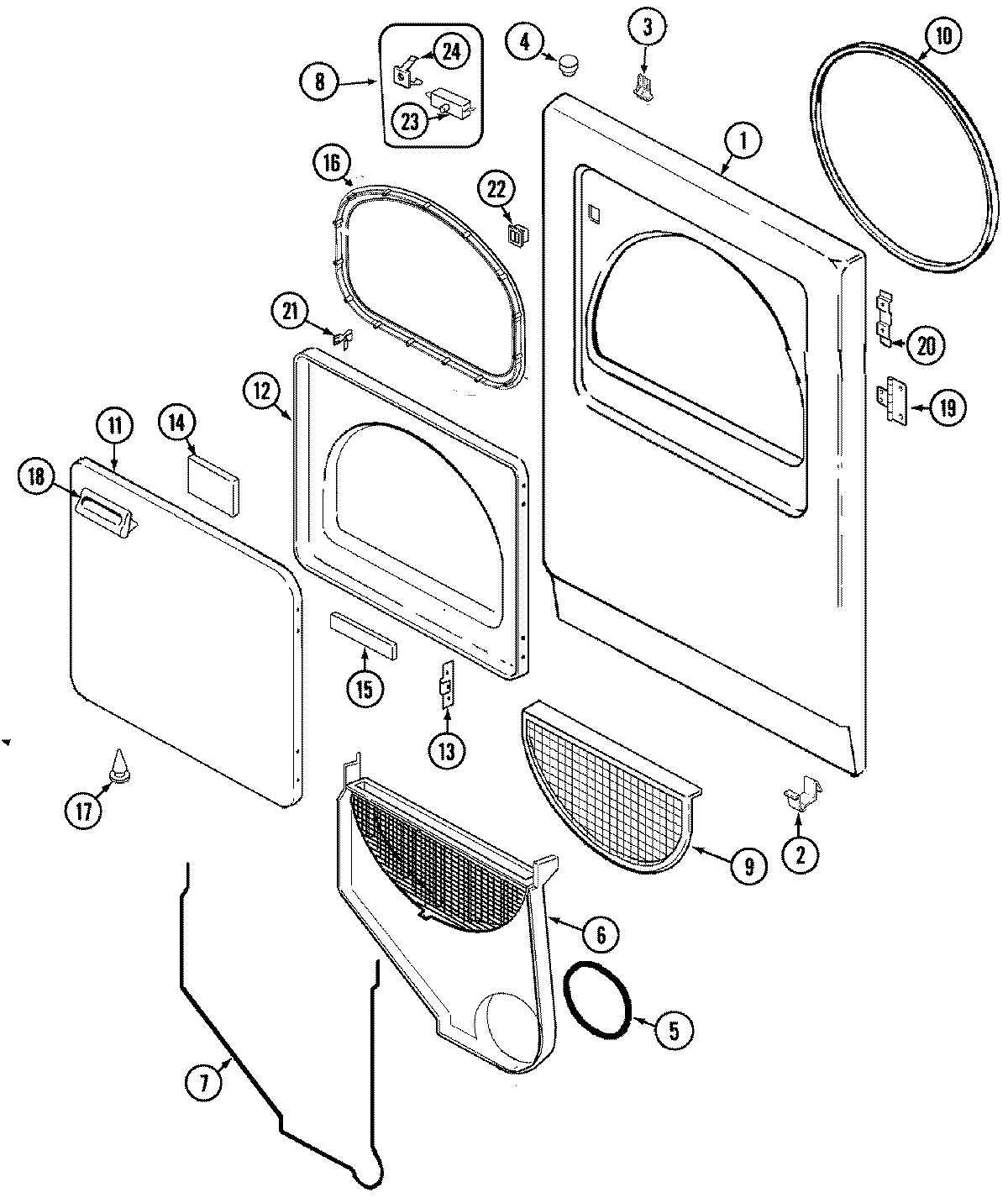

CDE7000W 04 – DOOR (SERIES 11)

Products

Position	Product
1	MAY 53-0726
2	WP53-0120 Whirlpool Clip
3	MAY 31001526
4	MAY 33-2653
6	12001324 Whirlpool Collector Duct
7	MAY 53-0204
8	MAY LA-1005
9	WP53-0918 Whirlpool Lint Filter
10	WP31001747 Whirlpool Seal Assembly
11	MAY 53-0154
11	MAY 25-7770
12	MAY 53-0912
13	MAY 53-0119
14	MAY 53-1490
15	MAY 53-1491
16	WP31001529 Whirlpool Door Seal
17	MAY 25-7889
18	MAY 25-7810
18	MAY 53-0927
19	MAY 53-1492
19	W10756178 Whirlpool Screw
20	MAY 53-0121
22	LA-1003 Whirlpool Dryer Door Catch and Metal Strike
23	MAY 53-0147
24	MAY 63-5990
