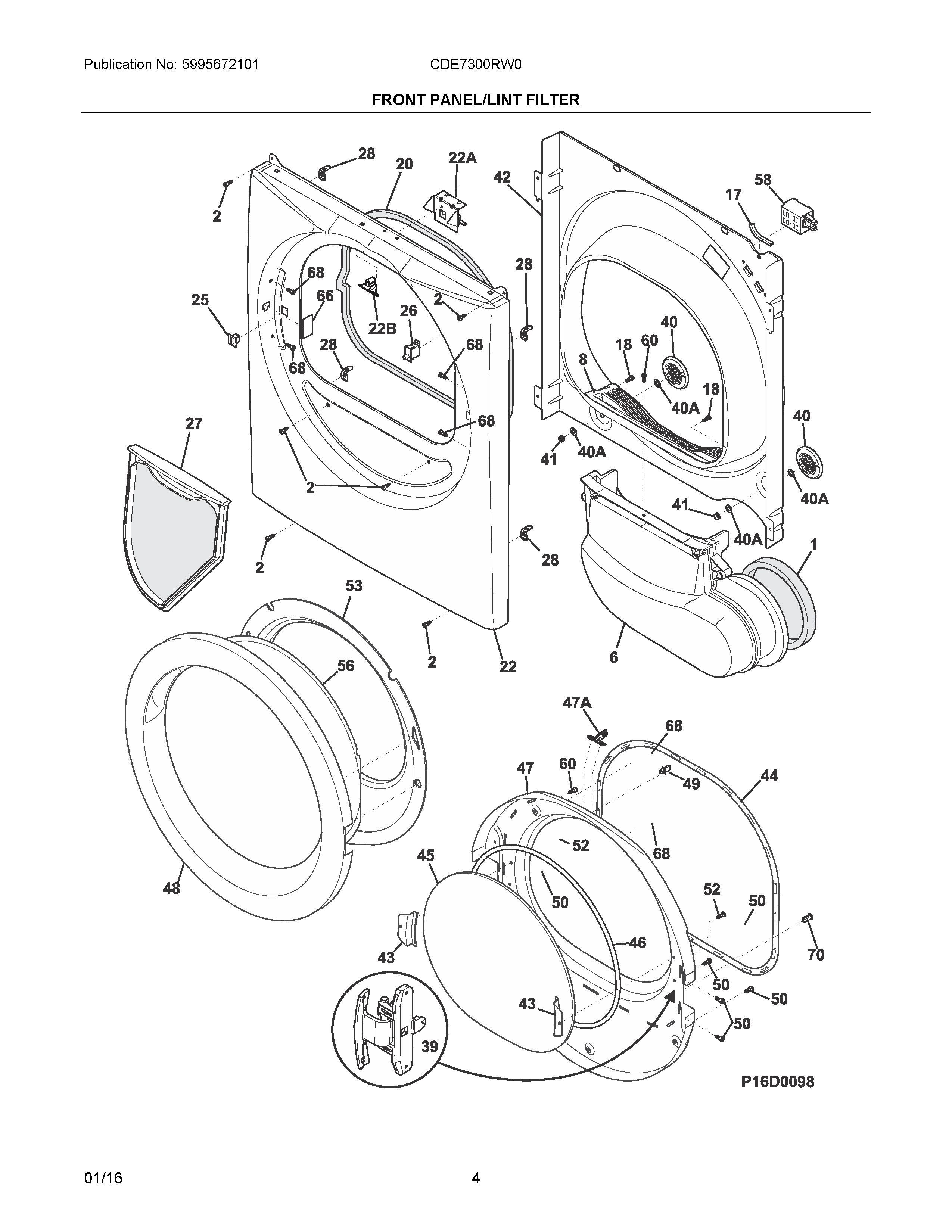

CDE7300RW0 03 – FRONT PANEL/LINT FILTER

Products

Position	Product
NIA	5308027429 Frigidaire Dryer High Temperature Adhesive
NIA	134716200 Frigidaire Retainer
NIA	WCI 134910300
NI	131205100 Frigidaire Screw
NIA	131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
NI	134156200 Frigidaire Screw
1	WCI 137068200
6	WCI 134710705
8	137554110 Frigidaire Washer Cover
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
20	WCI 137116600
22	WCI 137554510
22A	137577310 Frigidaire Lock Assembly
22B	WCI 137576200
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	134813601 Frigidaire Dryer Door Switch 3-Wire
27	137560710 Frigidaire Filter
28	137034500 Frigidaire Clip
39	137105100 Frigidaire Dryer Hinge Door
40A	134716700 Frigidaire Washer
40	5304523155 Frigidaire Washer Kit
41	134716800 Frigidaire Nut
42	WCI 134696110
43	WCI 134559300
44	137553402 Frigidaire Gasket
45	WCI 137575900
46	134580300 Frigidaire Gasket
47	5304506377 Frigidaire Inner Door Panel
47A	137555100 Frigidaire Strike
48	5304507185 Frigidaire Chrome Outer Door
49	5303207102 Frigidaire Door Strike
50	131302800 Frigidaire Drum Vane Screw
52	131243700 Frigidaire Screw
53	137578200 Frigidaire Ring
56	137578120 Frigidaire Glass
60	134430300 Frigidaire Screw
66	137577200 Frigidaire T Plug
68	134742000 Frigidaire Plug
70	WCI 134417500
