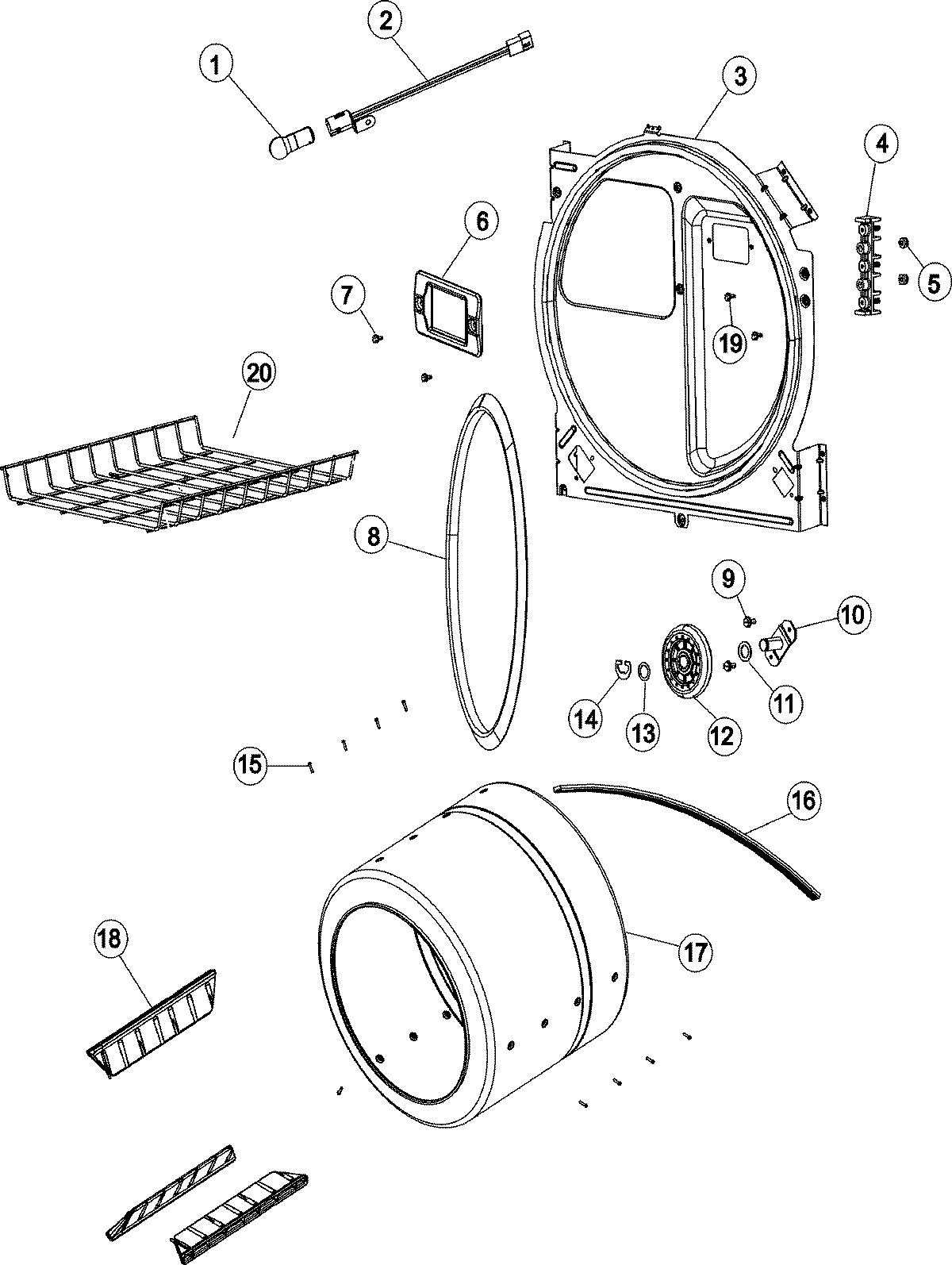

CDE7500AZW 08 – TUMBLER (SERIES 12)

CDE7500AZW 08 – TUMBLER (SERIES 12)

Written by

in

CDE7500AZW 08 – TUMBLER (SERIES 12)

Products

PositionProduct
1MAY 31001575
2MAY 31001579
3MAY 31001581
4MAY 53-1518
5MAY 25-3122
5MAY 25-0027
6MAY 31001585
7MAY 31001580
8WP31001747 Whirlpool Seal Assembly
9WP3351614 Whirlpool Screw
10WP53-0197 Whirlpool Support Bracket
11MAY 31001583
12MAY 31001096
13MAY 25-7814
14WP25-7854 Whirlpool Clip
15MAY 25-7759
16341241 Whirlpool Dryer Drum Belt
17MAY 53-1250
18MAY 53-1249
19WP3400074 Whirlpool Dishwasher Screw
20MAY 21001495
