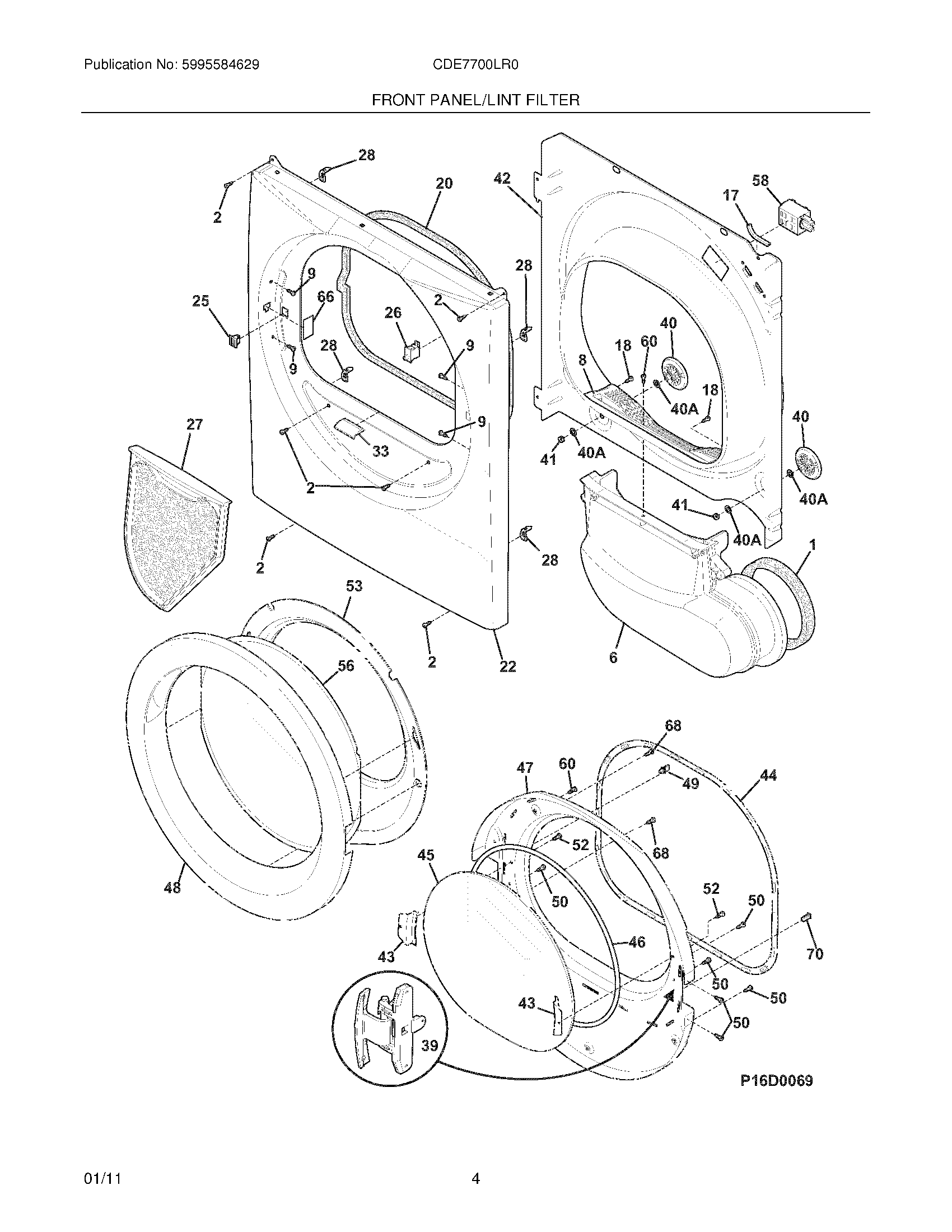

CDE7700LR0 05 – FRONT PANEL/LINT FILTER

Products

Position	Product
NI	5308027429 Frigidaire Dryer High Temperature Adhesive
NI	WCI 137292000
NI	131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
NI	134716200 Frigidaire Retainer
1	WCI 137068200
6	WCI 134710705
8	134701320 Frigidaire Grille
9	WCI 131633220
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
20	WCI 137116600
22	WCI 134696640
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	WCI 134813661
27	134701410 Frigidaire Dryer White Lint Filter
28	137034500 Frigidaire Clip
33	WCI 137067110
39	137105100 Frigidaire Dryer Hinge Door
40A	134716700 Frigidaire Washer
40	5304523155 Frigidaire Washer Kit
41	134716800 Frigidaire Nut
42	WCI 134696105
43	WCI 134559300
44	137553402 Frigidaire Gasket
45	WCI 134611800
46	134580300 Frigidaire Gasket
47	WCI 134683941
48	5304507185 Frigidaire Chrome Outer Door
49	5303207102 Frigidaire Door Strike
50	131302800 Frigidaire Drum Vane Screw
52	131243700 Frigidaire Screw
53	137578200 Frigidaire Ring
56	137578120 Frigidaire Glass
60	134430300 Frigidaire Screw
66	137577200 Frigidaire T Plug
68	134742002 Frigidaire Plug
70	WCI 134417502
