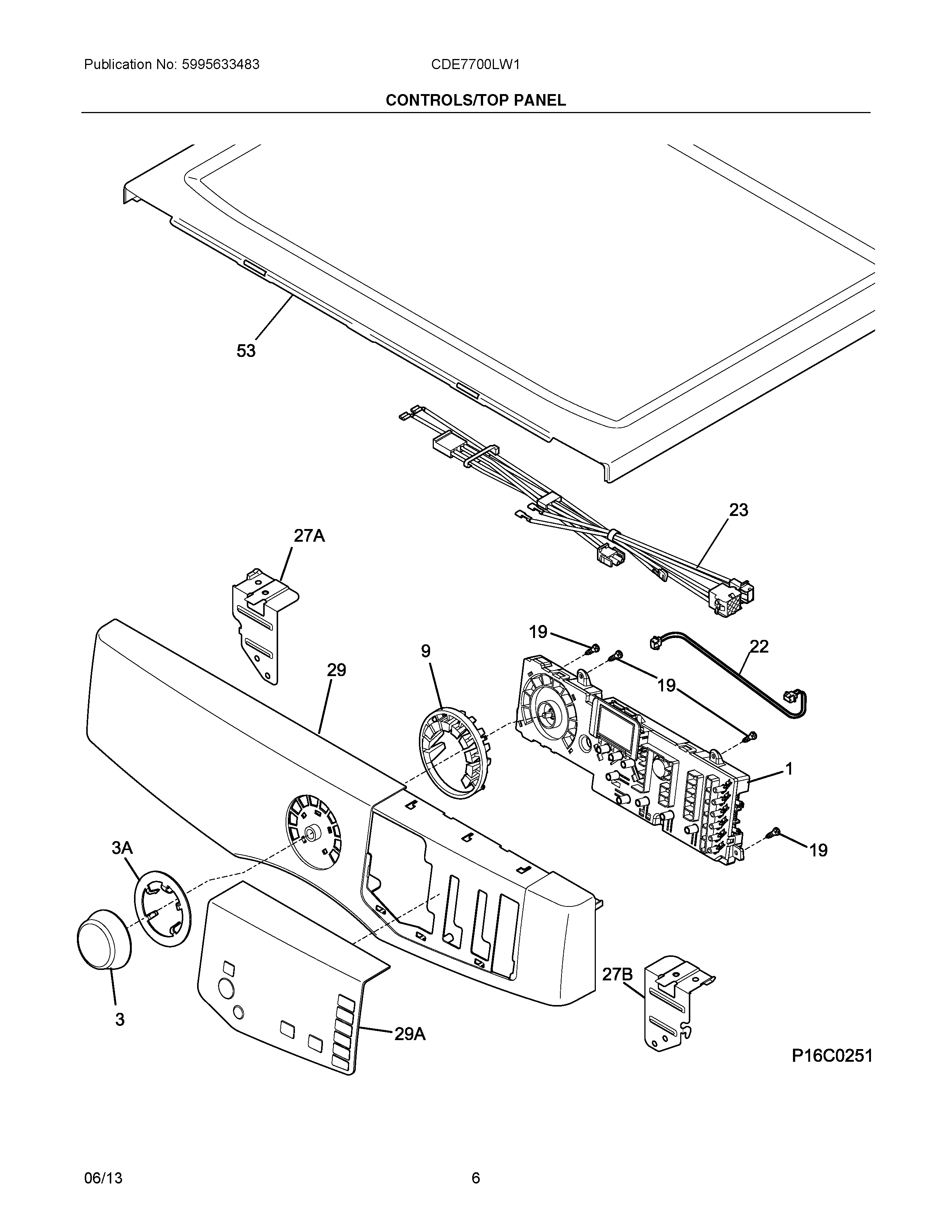

CDE7700LW1 04 – CONTROLS/TOP PANEL

CDE7700LW1 04 – CONTROLS/TOP PANEL

Written by

in

CDE7700LW1 04 – CONTROLS/TOP PANEL

Products

PositionProduct
NIA137150200 Frigidaire Terminal
NIA134926600 Frigidaire Damper
1809160903 Frigidaire Control Board
3WCI 137286500
3AWCI 137296900
9WCI 137286600
19134402900 Frigidaire Screw
22134790700 Frigidaire Harness
23WCI 137557400
27B134711000 Frigidaire Bracket
27A134710900 Frigidaire Bracket Assembly
29AWCI 137310110
29PANEL, DECORATED, CONTROL
53134638510 Frigidaire Washer Dryer Top Panel
