CDE8000A 01 – DOOR

CDE8000A 01 – DOOR

Written by

in

CDE8000A 01 – DOOR

Products

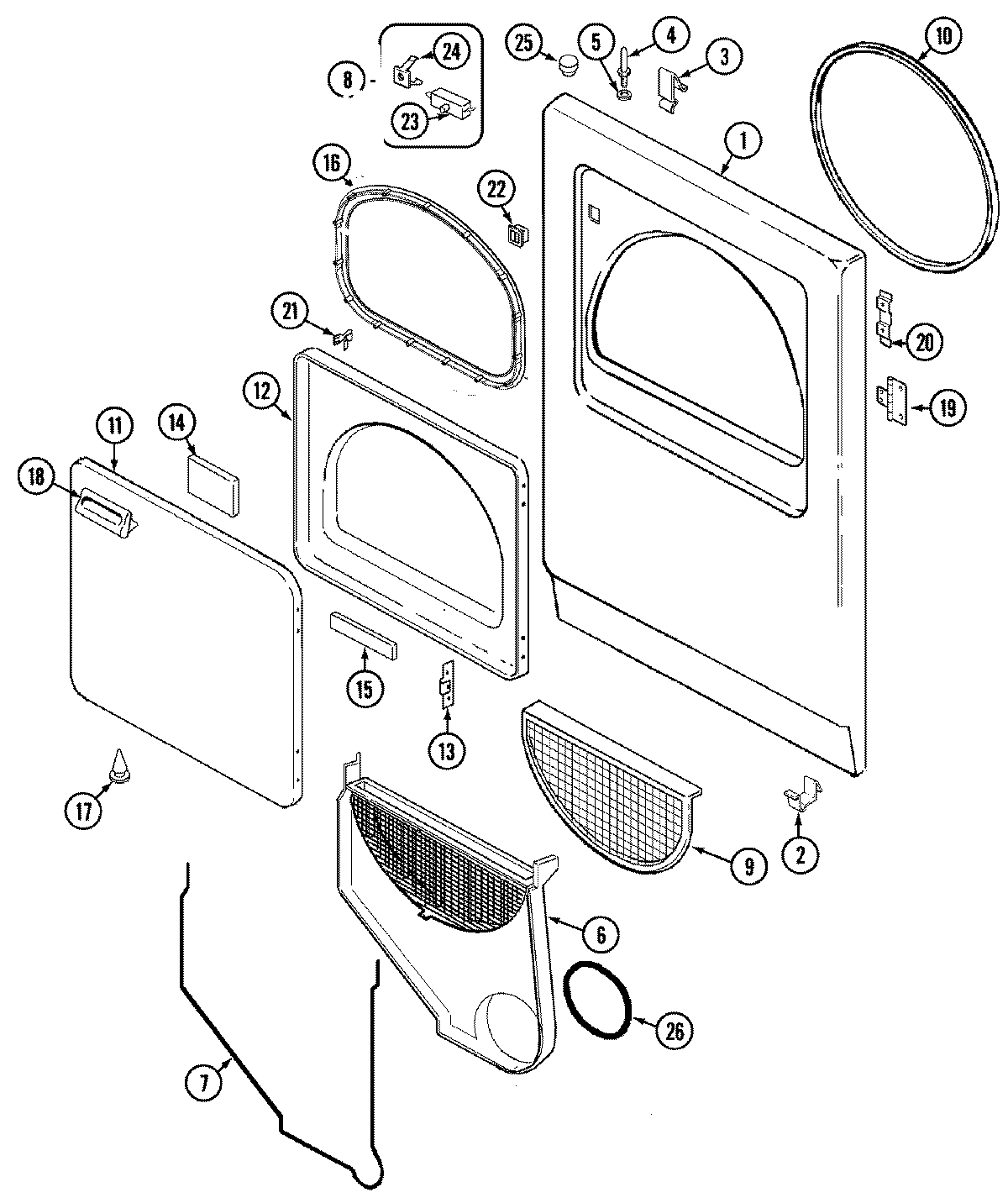

PositionProduct
1MAY 12001210
2WP53-0120 Whirlpool Clip
3WP25-7220 Whirlpool Cabinet Clip
4MAY 53-0643
5MAY 25-0224
5MAY 53-0200
612001324 Whirlpool Collector Duct
7MAY 53-0204
8MAY LA-1005
9WP53-0918 Whirlpool Lint Filter
10WP31001747 Whirlpool Seal Assembly
11MAY 53-0154-24
11MAY 25-7770
12MAY 53-0912-24
13MAY 53-0119
14MAY 21001281
14MAY 53-1490
15MAY 53-1491
16WP31001529 Whirlpool Door Seal
17MAY 25-7889
18MAY 31001115
18MAY 25-7810
19W10756178 Whirlpool Screw
19MAY 53-1492
20MAY 53-0121
22LA-1003 Whirlpool Dryer Door Catch and Metal Strike
23MAY 53-0148
24MAY 63-5990
25MAY 33-2653
