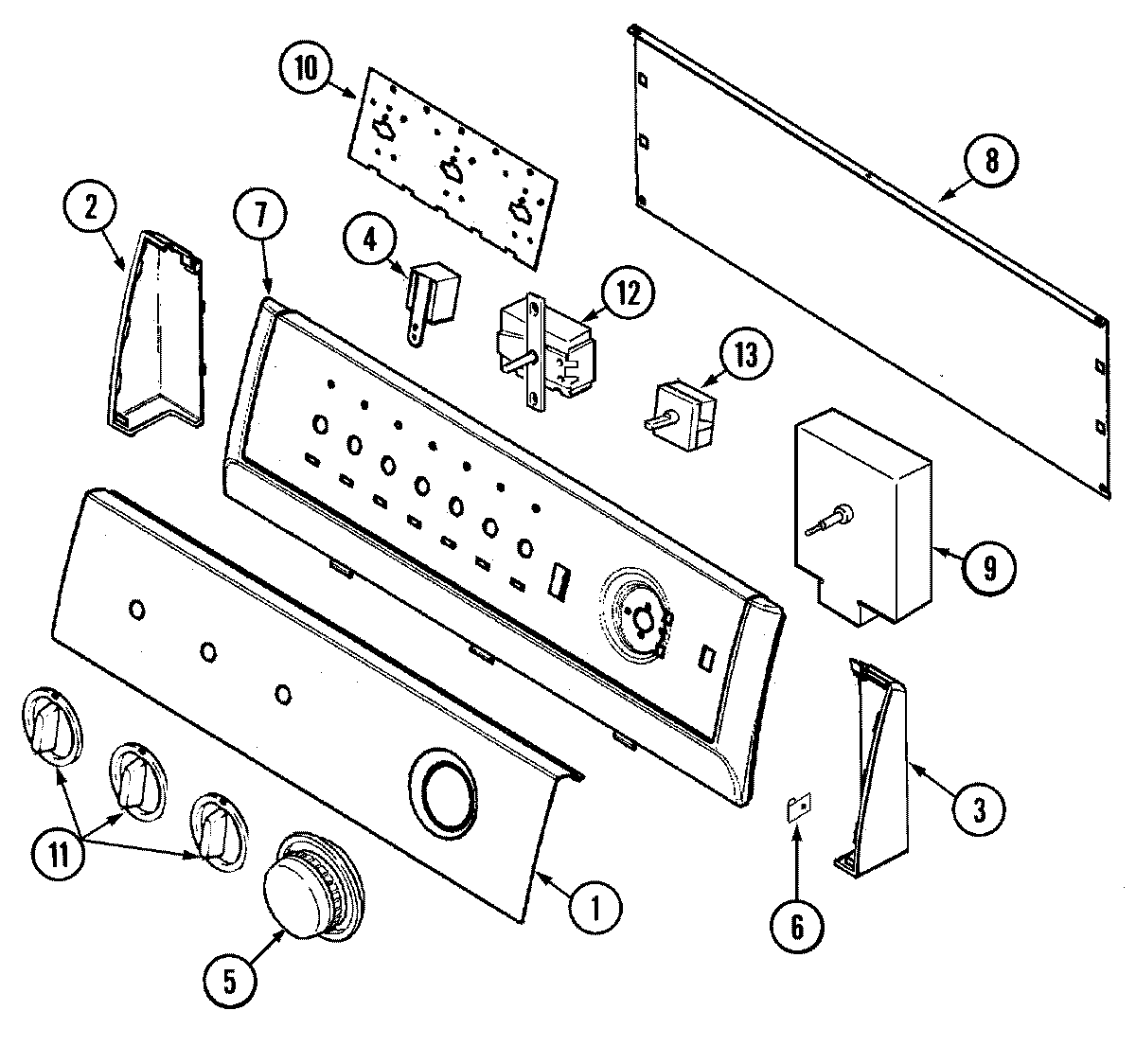

CDE8000W 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 31001474
NI	MAY 31001460
1	MAY 31001386
2	MAY 21001546
3	MAY 21001547
4	MAY 31001397
5	WP37001184 Whirlpool Timer Knob
6	MAY 25-7851
7	MAY 21001552
8	MAY 21001527
8	MAY 25-3457
9	WP31001513 Whirlpool Timer
9	MAY 63-6743
10	MAY 31001193
10	MAY 21001603
10	MAY 53-2504
11	MAY 21001544
12	MAY 31001243
12	WP90767 Whirlpool Screw
13	MAY 31001190
