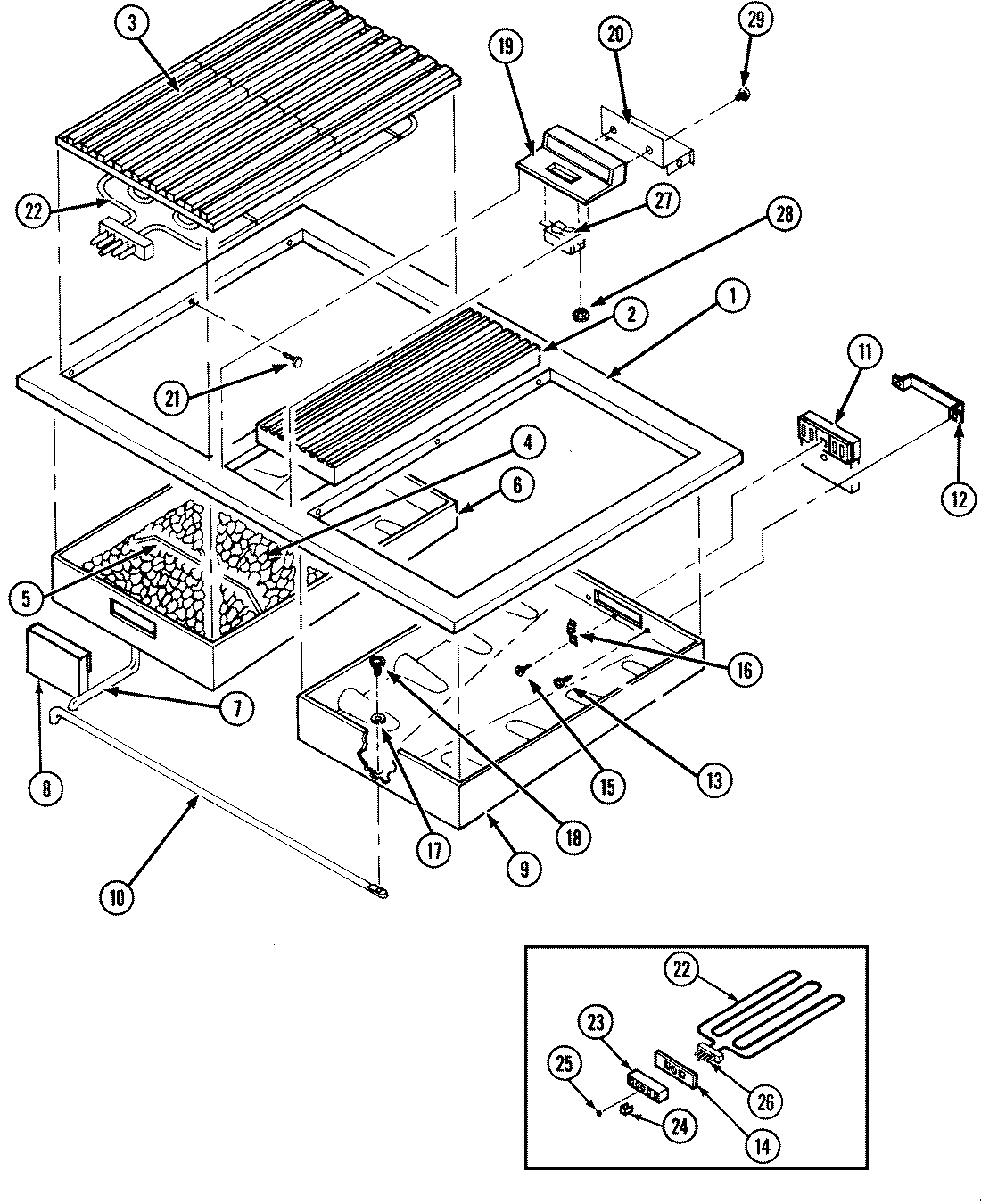

CDE8300ADB 09 – TOP ASSEMBLY

Products

Position	Product
1	MAY 701853
2	MAY 702568
3	MAY 703905
4	MAY 708929
5	700819 Whirlpool Oven Element Support
6	MAY 712228
6	MAY Y712203
6	MAY Y712200
6	MAY 701955
6	MAY Y712197
7	MAY Y702463
9	MAY Y712199
9	MAY Y712227
9	MAY Y712229
9	WP5708M007-60 Whirlpool Wire Harness
9	MAY Y701956
9	MAY Y712202
10	MAY Y702327
11	WPY702434 Whirlpool Receptacle
12	MAY Y702698
13	WP12990527 Whirlpool Microwave Screw
14	MAY Y700449
15	WP489128 Whirlpool Refrigerator Screw
16	MAY Y702699
17	MAY 702747
18	MAY 702748
19	MAY 705095
20	MAY Y704233
21	MAY Y707347
22	MAY Y04100007
23	WPY708730 Whirlpool Terminal Block
24	MAY Y700450
25	Y708862 Whirlpool Speed Nut
26	Y708572 Whirlpool Spade Contact
27	MAY Y705094
28	MAY Y705023
28	MAY Y04100035
29	MAY Y708733
